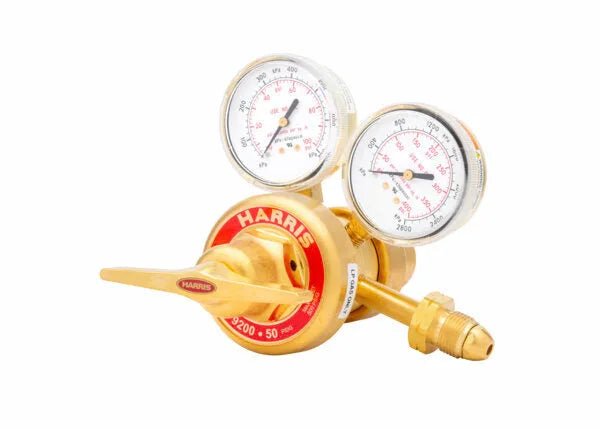

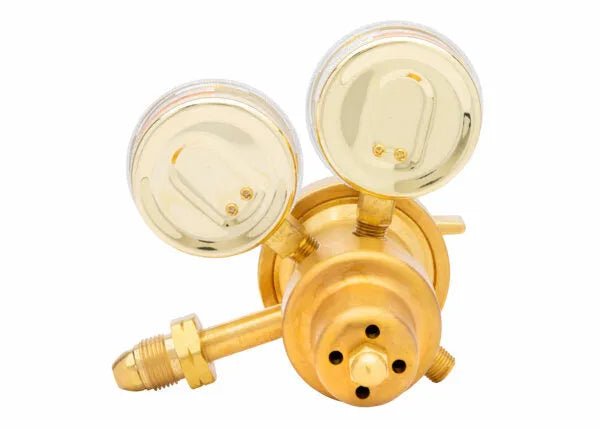

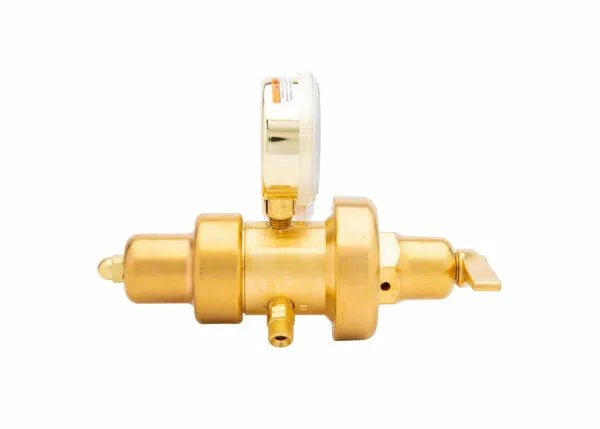

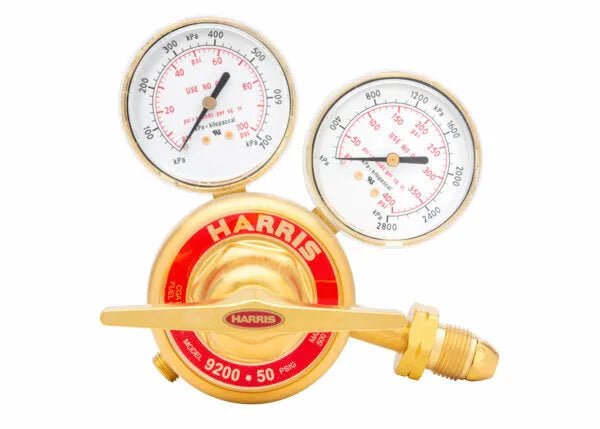

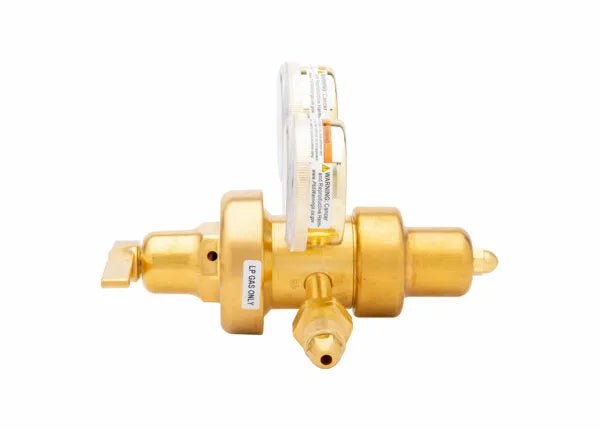

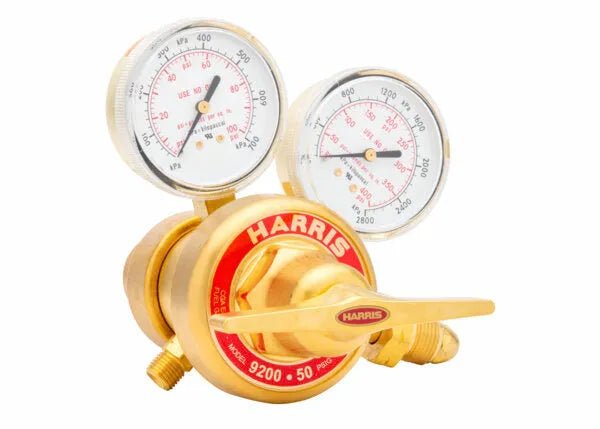

Harris 9200-50-510P Two Stage LPG Regulator - 3302212

Product Overview

Harris 9200-50-510P Two Stage LPG Regulator - 3302212

Model 9200 LPG Regulator is a standard for general purpose laboratory, industrial and welding applications. This heavy duty model is designed for applications where a constant delivery pressure is required over a wide range of inlet pressures. Model 9200 features a neoprene diaphragm, self-reseating relief valve, one-piece encapsulated seat design with internal filter and Teflon® seat and T-screw bar handle. It can be used with any of the other welding grade liquid petroleum gases. NOT FOR USE WITH ACETYLENE.

Features

• For general purpose laboratory, industrial and welding applications
• Designed for use when constant delivery pressure is required over a wide range of inlet pressures
• Brass body and bonnet for longer service life
• Easy-to-operate brass T-screw bar adjusting handle
• 2.5 in. Brass dual scale easy-to-read gauges (psi/bar)
• One-piece encapsulated seat design with internal filter to protect the PTFE Teflon® seat from particulate contamination
• Neoprene diaphragm for better pressure control
• Use for welding applications where neoprene diaphragms are acceptable
• Equipped with a tamper-proof, self-reseating, high pressure internal safety relief valve
• This regulator is designed specifically for propane service, but can be used with any of the other liquid petroleum gases. NOT FOR USE WITH ACETYLENE
