Model 9200-50-540 general purpose heavy duty neoprene diaphragm two-stage regulator
Gas Type: Oxygen
Inlet: CGA 540
Outlet: 9/16"" - 18 RH
Overview

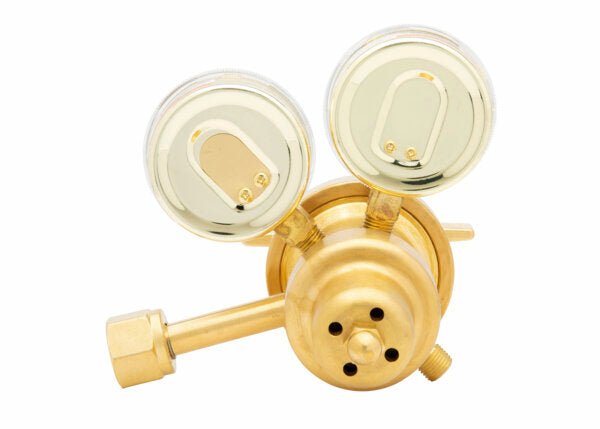

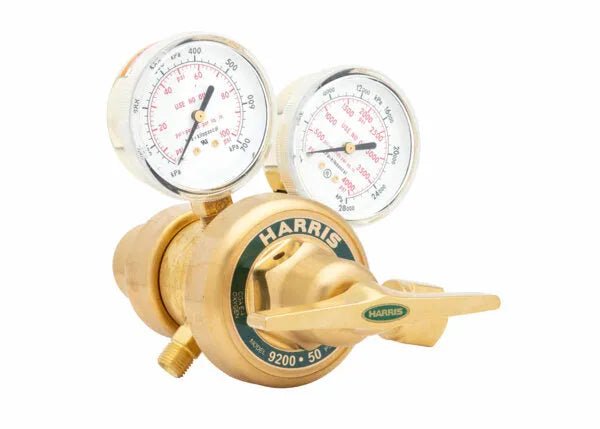

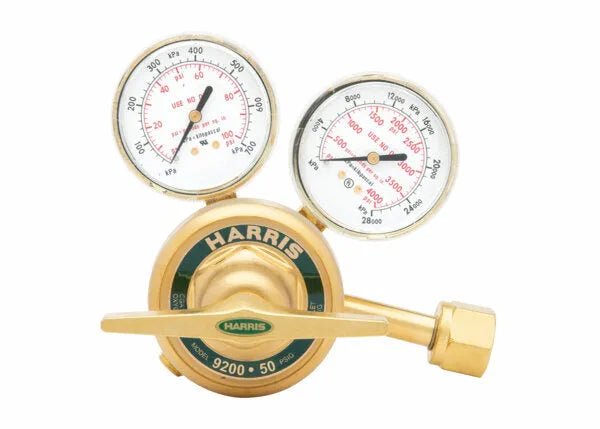

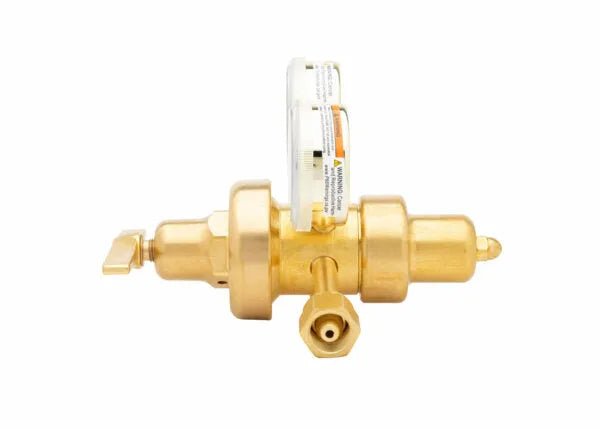

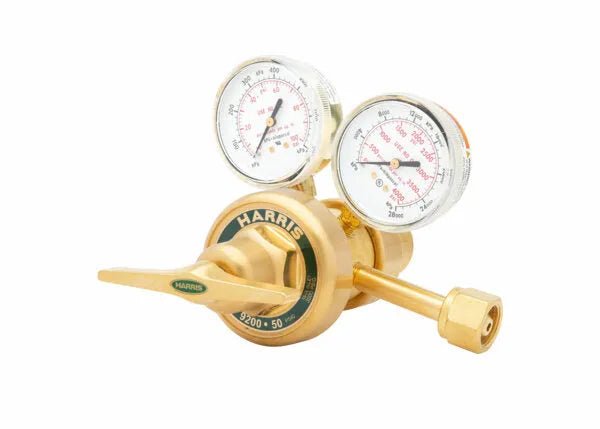

Harris 9200-50-540 Two Stage Oxygen Regulator - 3302213

Model 9200 Oxygen Regulator is a standard for general purpose laboratory, industrial and welding applications. This heavy duty model is designed for applications where a constant delivery pressure is required over a wide range of inlet pressures. Model 9200 features a neoprene diaphragm, self-reseating relief valve, one-piece encapsulated seat design with internal filter and Teflon® seat and T-screw bar handle.

Features
  • For general purpose laboratory, industrial and welding applications
  • Designed for use when constant delivery pressure is required over a wide range of inlet pressures
  • Brass body and bonnet for longer service life
  • Easy-to-operate brass T-screw bar adjusting handle
  • 2.5 in. Brass dual scale easy-to-read gauges (psi/bar)
  • One-piece encapsulated seat design with internal filter to protect the PTFE Teflon® seat from particulate contamination
  • Neoprene diaphragm for better pressure control
  • Use for welding applications where neoprene diaphragms are acceptable
  • Equipped with a tamper-proof, self-reseating, high pressure internal safety relief valve
Specifications

Equipment

Adjusting Screw Brass T-screw bar
Body Brass
Bonnet Brass
Certification CGA E-4
Cv 0.37
Delivery Pressure Gauge (PSIG) 400
Delivery Pressure Range (PSIG) 0 - 200
Diaphragm Neoprene
Duty Heavy
Equipped With Tamper proof, self-reseating internal high pressure safety valve
Gas / Gas Service Hydrogen
Methane
Gauges 2.5 in. Brass dual scale (psi/bar)
Inlet Connection CGA 350
Maximum Inlet Pressure (PSIG) 3000
Outlet Connection 9/16 in. - 18 RH
Pressure Regulation PSIG/100 PSIG 0.03
Seat PTFE Teflon®
Supply Pressure Gauge (PSIG) 4000

Warranty

Warranty 7 Years
