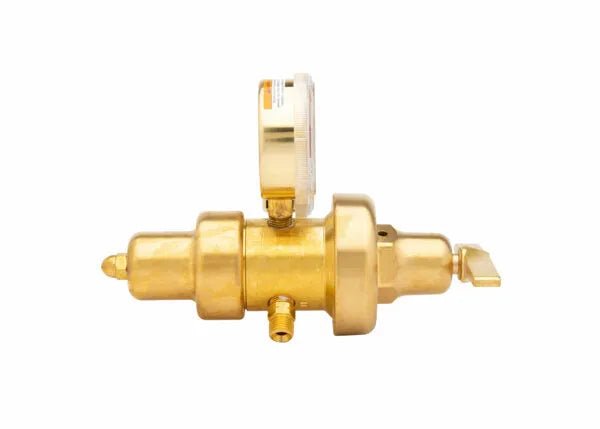

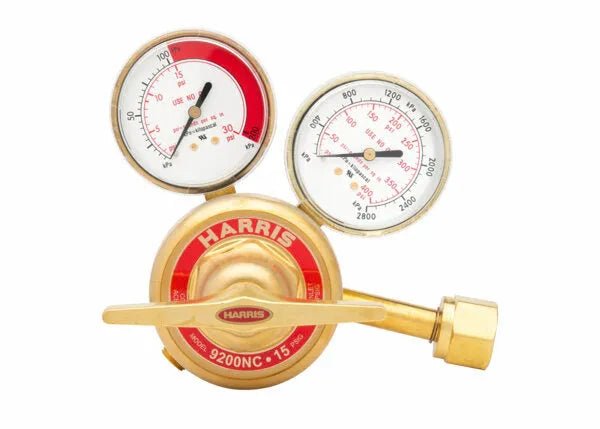

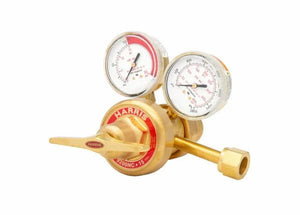

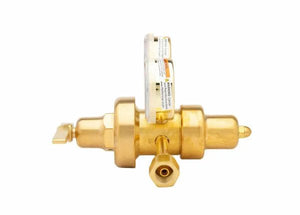

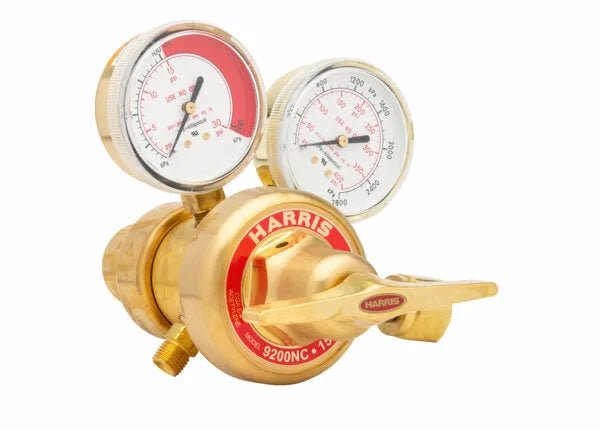

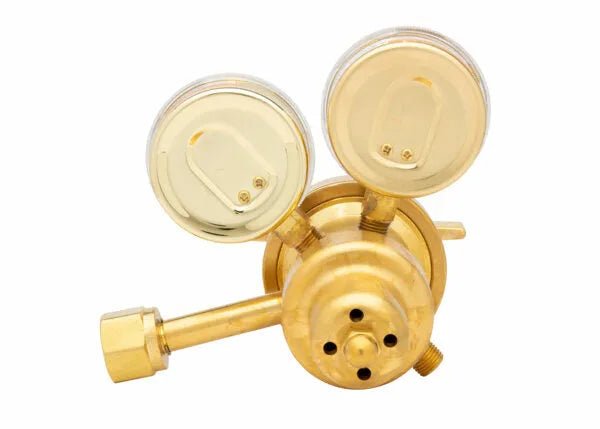

Harris 9200NC-15-510 Two Stage Acetylene Regulator - 3302211
Model 9200 Acetylene Regulator is a standard for general purpose laboratory, industrial and welding applications. This heavy duty model is designed for applications where a constant delivery pressure is required over a wide range of inlet pressures. Model 9200 features a neoprene diaphragm, self-reseating relief valve, one-piece encapsulated seat design with internal filter and neoprene seat and T-screw bar handle.
Features
- For general purpose laboratory, industrial and welding applications
- Designed for use when constant delivery pressure is required over a wide range of inlet pressures
- Brass body and bonnet for longer service life
- Easy-to-operate brass T-screw bar adjusting handle
- 2.5 in. Brass dual scale easy-to-read gauges (psi/bar)
- One-piece encapsulated seat design with internal filter to protect the neoprene seat from particulate contamination
- Neoprene diaphragm for better pressure control
- Use for welding applications where neoprene diaphragms are acceptable
- Equipped with a tamper-proof, self-reseating, high pressure internal safety relief valve
Specifications
Equipment
| Adjusting Screw | Brass T-screw bar |
| Body | Brass |
| Bonnet | Brass |
| Certification | CGA E-4 |
| Cv | 0.37 |
| Delivery Pressure Gauge (PSIG) | 30RZ |
| Delivery Pressure Range (PSIG) | 0 - 15 |
| Diaphragm | Neoprene |
| Duty | Heavy |
| Equipped With | Tamper proof, self-reseating internal high pressure safety valve |
| Gas / Gas Service | Acetylene |
| Gauges | 2.5 in. Brass dual scale (psi/bar) |
| Inlet Connection | CGA 510 |
| Maximum Inlet Pressure (PSIG) | 500 |
| Outlet Connection | 9/16 in. - 18 LH |
| Pressure Regulation PSIG/100 PSIG | 0.05 |
| Seat | Neoprene |
| Supply Pressure Gauge (PSIG) | 400 |
| Typical Application | General purpose, laboratory, industrial and welding applications |
Warranty
| Warranty | 7 Years |
