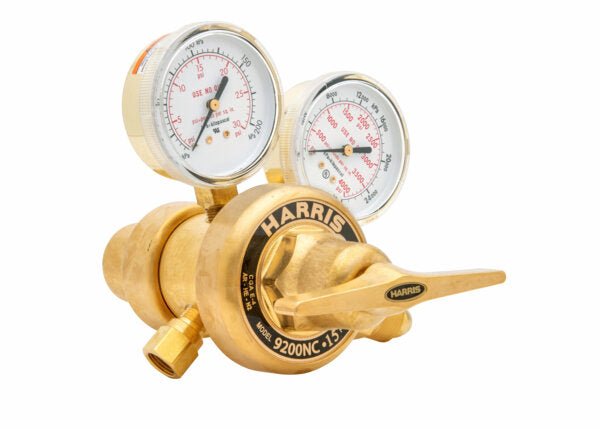

Harris 9200NC-5-580 Low Delivery Argon/Helium/Nitrogen Regulator - 3302284
Model 9200NC low delivery Argon/Helium/Nitrogen Regulator maintains an accurate delivery pressure over the life of the Cylinder. The Two Stage design limits the variations in the outlet pressure to 0.03 PSIG for every 100 PSIG of inlet pressure decay. It features a large surface area elastomeric diaphragm that provides precise pressure control from full to empty Cylinder. Made of durable, long-lasting brass, this Regulator is perfect for non-corrosive, ultra-low delivery pressure gases. A needle valve is included on the outlet.
Features
- First and second stage large neoprene diaphragm
- One-piece encapsulated seat design with 10 micron sintered internal filter to protect the 1st stage PTFE Teflon and 2nd stage neoprene seats from particulate contamination.
- 2.5 in. dual scale black painted metal gauges
- Ergonomic ABS plastic knob for easy grip and precise adjustment
- Brass body, bonnet and fittings for longer service life
- Unique delivery gauge to provide a 0.1 PSI graduation
- Inter-stage relief valve protects the second stage of the Regulator from over pressurization
- Equipped with a needle valve on the outlet
Specifications
Equipment
| Adjusting Knob | ABS black plastic |
| Body | Brass |
| Bonnet | Brass |
| Certification | CGA E-4 |
| Cv | 0.37 |
| Delivery Pressure Gauge (PSIG) | 4000 |
| Delivery Pressure Range (PSIG) | 0 - 5 |
| Diaphragm | Neoprene |
| Duty | Heavy |
| Equipped With | Tamper proof, self-reseating internal high pressure safety valve |
| Filter | Nickel-plated sintered bronze - 10 micron |
| Gas / Gas Service | Argon Helium Nitrogen |
| Gauges | 2.5 in. Brass dual scale (psi/bar) |
| Inlet Connection | CGA 580 |
| Maximum Inlet Pressure (PSIG) | 3000 |
| Outlet Connection | 1/4 in. NPT (M) |
| Pressure Regulation PSIG/100 PSIG | 0.03 |
| Seat | Neoprene |
| Supply Pressure Gauge (PSIG) | 4000 |
Warranty
| Warranty | 1 Year |
