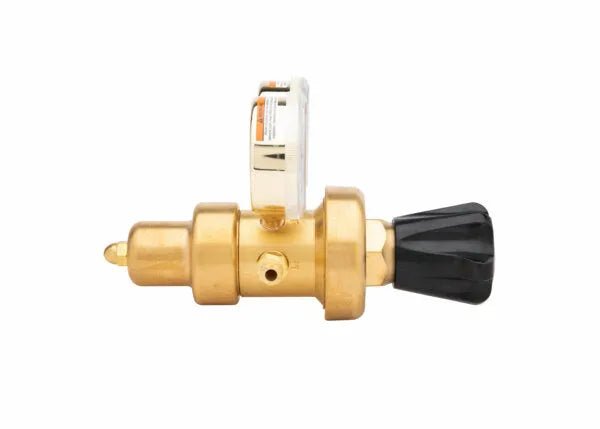

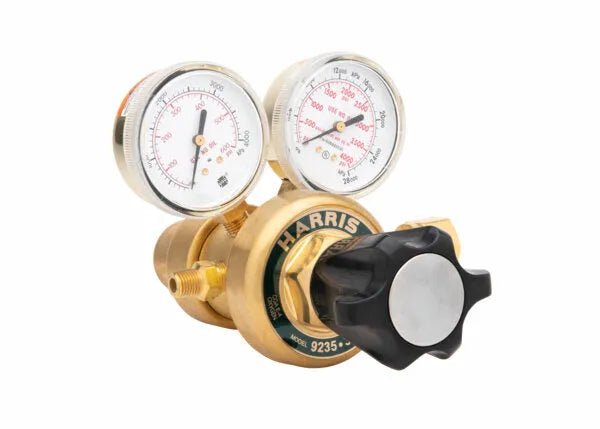

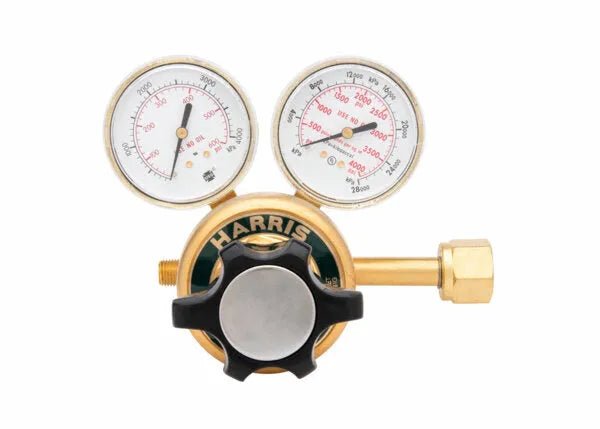

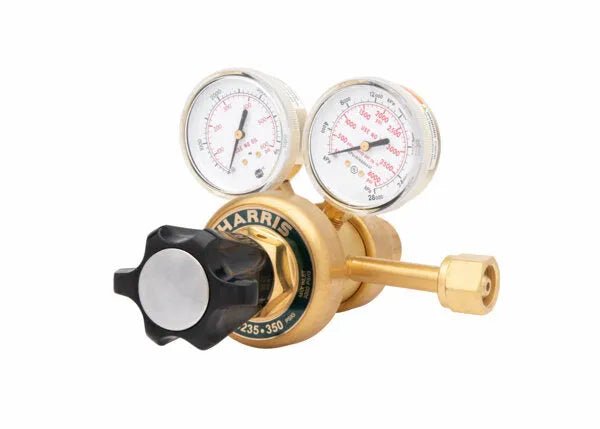

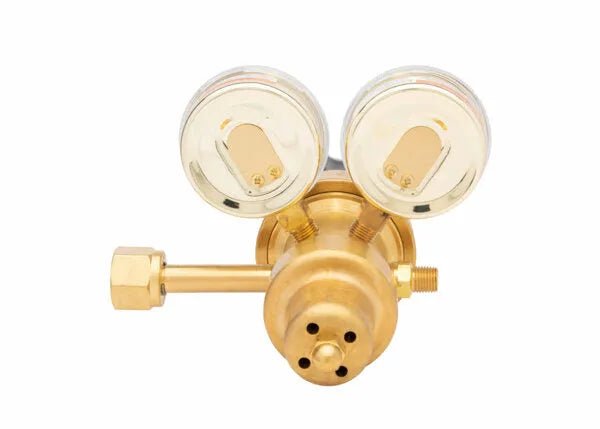

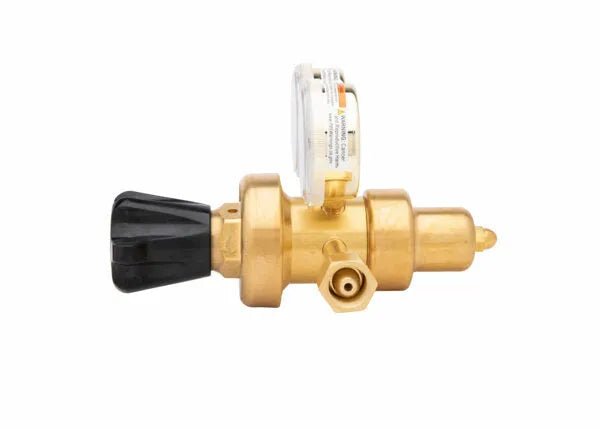

Harris 9235-350-540 Manifold Two Stage Oxygen Regulator - 3302301
Model 9235 manifold Regulator is designed for gas purging, gas blanketing, pressure testing and other high flow applications. This heavy duty, Two Stage, Regulator features brass gauges, large plastic adjustment knob and one-piece encapsulated seat design with internal filter and PTFE Teflon seat. The outlet body port is 3/8 in. NPT (F).
Features
- For applications where neoprene diaphragms are acceptable
- Designed for applications where a constant delivery pressure is required
- Ergonomic ABS plastic knob for easy grip and precise adjustment
- Brass body and painted brass bonnet for longer service life
- Large 2.75 neoprene diaphragms for improved pressure control
- 2.5 in. Brass dual scale easy-to-read gauges
- One-piece encapsulated seat design with internal filter to protect the PTFE Teflon seat from particulate contamination
- Maximum inlet pressure is 3000 PSIG
- Equipped with a tamper-proof, self-reseating, high pressure internal safety relief valve
- Conforms to CGA E-4 standard
Specifications
Equipment
| Adjusting Knob | ABS black plastic |
| Body | Brass |
| Bonnet | Painted brass |
| Certification | CGA E-4 |
| Cv | 0.4 |
| Delivery Pressure Gauge (PSIG) | 600 |
| Delivery Pressure Range (PSIG) | 0 - 350 |
| Diaphragm | 2.75 in. Neoprene |
| Duty | Heavy |
| Equipped With | Tamper-proof, self-reseating, high pressure internal safety relief valve 3/8 in. NPT (F) outlet body port |
| Gas / Gas Service | Oxygen |
| Gauges | 2.5 in. Brass dual scale (psi/kPa) |
| Inlet Connection | CGA 540 |
| Maximum Inlet Pressure (PSIG) | 3000 |
| Outlet Connection | 1/4 in. NPT (M) |
| Pressure Regulation PSIG/100 PSIG | 0.05 |
| Seat | PTFE Teflon® |
| Supply Pressure Gauge (PSIG) | 4000 |
Warranty
| Warranty | 7 Years |
