Harris 9235-350-580 Manifold Two Stage Argon/Helium/Nitrogen Regulator - 3302302

SKU: 3302302
$1,236.20
Financing / Leasing Available

Welding Equipment And Industrial Supplies Financing

Welding Mart has partnered with Clicklease to provide industry-leading welding equipment for a low monthly payment customized to fit your budget. Our welder financing services allow professionals to outfit their shop with the right welding machines and systems to serve customers. Whether you need a new MIG welder, a rental TIG welder, a virtual welding training simulator or something else, rent-to-own welders from leading brands such as Lincoln Electric and Miller are a great solution.

It's never been easier to afford the equipment you need to grow your business.
Apply in just four minutes and get real approval in seconds - there's no hard credit pull and no documents are needed.

Benefits of Lease-to-Own Welders

A welding machine rental is great for short-term and long-term business needs. Welder leases and rentals let companies stay on top of the latest welding technology without draining their operating budget by paying upfront, in full for new machines. At the end of the lease period, you can either purchase the welding equipment outright or return it to WeldingMart. You can also buy the equipment anytime within the first year of your lease - see below for more details.

Welder rentals can also have tax benefits. In many cases, the payments you make when you lease or finance a welding machine for business or educational purposes are tax-deductible. This frees up even more resources to get the equipment, supplies and personnel that welding businesses need.

More Information

Welding machine financing is available 24/7 so you can apply whenever it's convenient for you. It will only take about four minutes of your time.

Once approved, you'll have the option to select the term that best fits your budget and, if approved for more than you request, our calculator makes it easy to see how your payments change for any additional items you add to your lease. eDocs are available immediately, allowing you to order your new gear within minutes.

Have additional questions? Contact us to speak with a member of the WeldingMart team.
Model 9235-350-580 high-flow heavy duty manifold two-stage argon/helium/nitrogen regulator
Victor Cross Reference Model & Part #: VTS700-125-580 - 0780-0928
Gas Type: Argon, Helium, Nitrogen
Inlet: CGA 580
Outlet: 1/4 in. NPT (M)
Overview

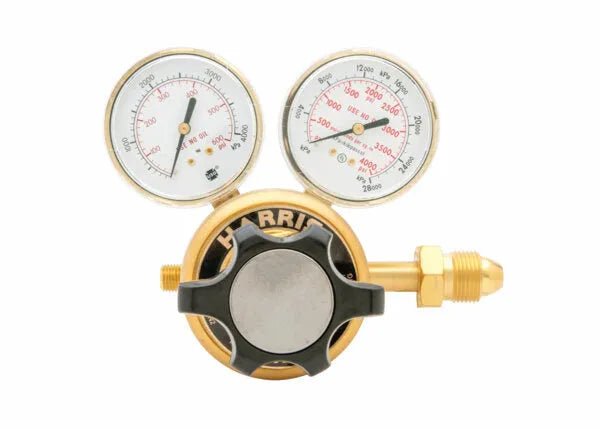

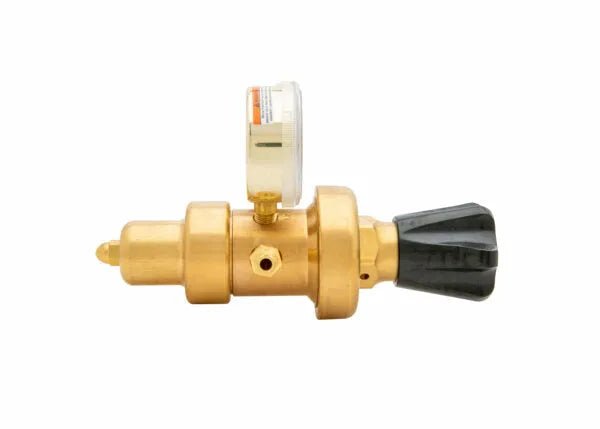

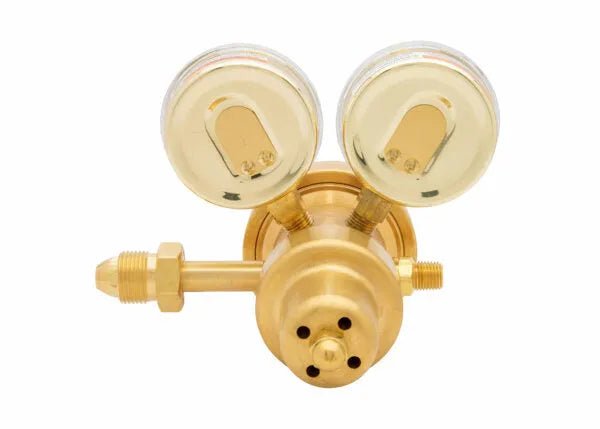

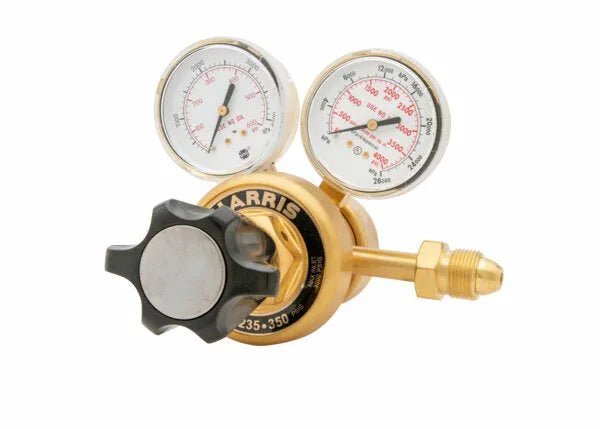

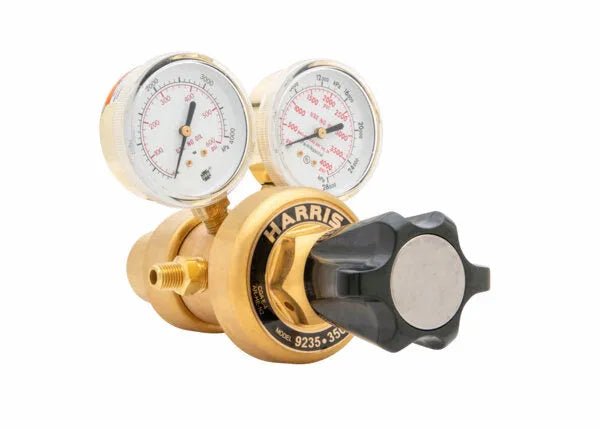

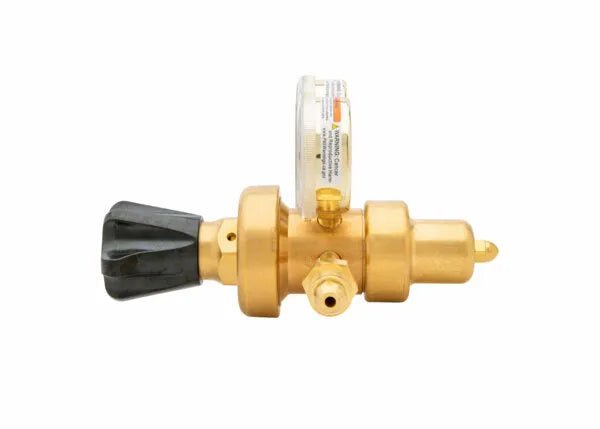

Harris 9235-350-580 Manifold Two Stage Argon/Helium/Nitrogen Regulator - 3302302

Model 9235 manifold regulator is designed for gas purging, gas blanketing, pressure testing and other high flow applications. This heavy duty, two-stage, regulator features brass gauges, large plastic adjustment knob and one-piece encapsulated seat design with internal filter and PTFE Teflon® seat. The outlet body port is 3/8 in. NPT (F).

Features
  • For applications where neoprene diaphragms are acceptable
  • Designed for applications where a constant delivery pressure is required
  • Ergonomic ABS plastic knob for easy grip and precise adjustment
  • Brass body and painted brass bonnet for longer service life
  • Large 2.75 neoprene diaphragms for improved pressure control
  • 2.5 in. Brass dual scale easy-to-read gauges
  • One-piece encapsulated seat design with internal filter to protect the PTFE Teflon® seat from particulate contamination
  • Maximum inlet pressure is 3000 PSIG
  • Equipped with a tamper-proof, self-reseating, high pressure internal safety relief valve
  • Conforms to CGA E-4 standard
Specifications

Equipment

Adjusting Knob ABS black plastic
Body Brass
Bonnet Painted brass
Certification CGA E-4
Cv 0.4
Delivery Pressure Gauge (PSIG) 600
Delivery Pressure Range (PSIG) 0 - 350
Diaphragm 2.75 in. Neoprene
Duty Heavy
Equipped With Tamper-proof, self-reseating, high pressure internal safety relief valve
3/8 in. NPT (F) outlet body port
Gas / Gas Service Argon
Helium
Nitrogen
Gauges 2.5 in. Brass dual scale (psi/kPa)
Inlet Connection CGA 580
Maximum Inlet Pressure (PSIG) 3000
Outlet Connection 1/4 in. NPT (M)
Pressure Regulation PSIG/100 PSIG 0.05
Seat PTFE Teflon®
Supply Pressure Gauge (PSIG) 4000

Warranty

Warranty 7 Years
