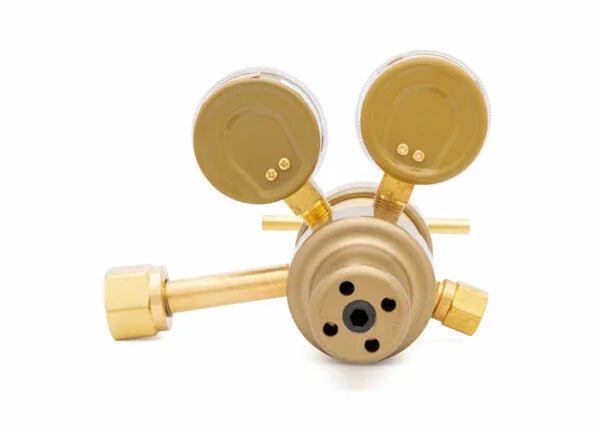

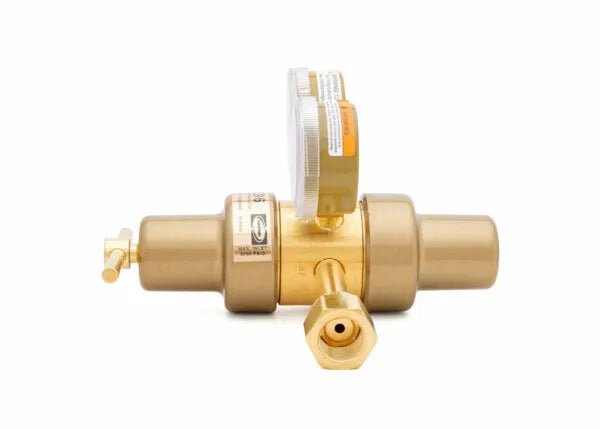

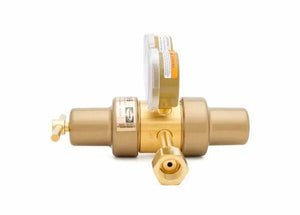

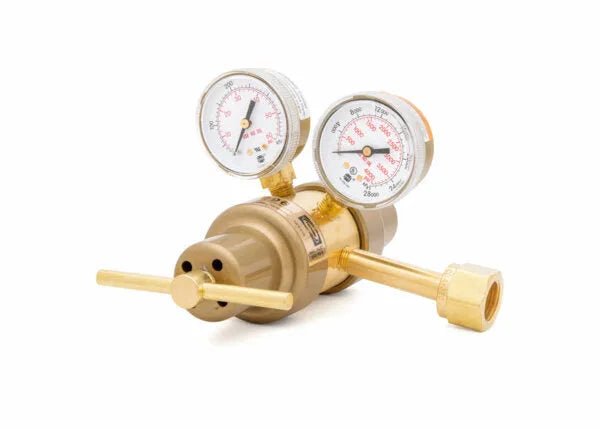

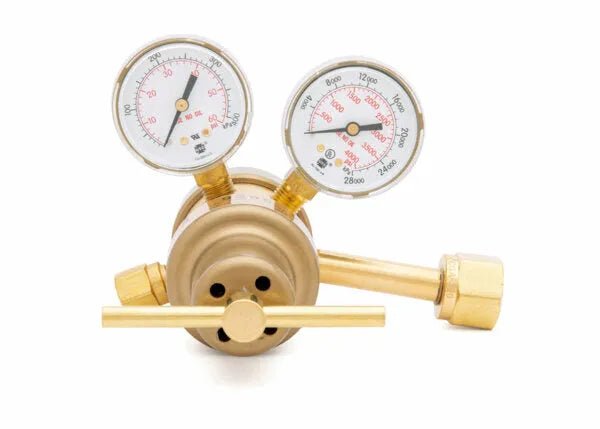

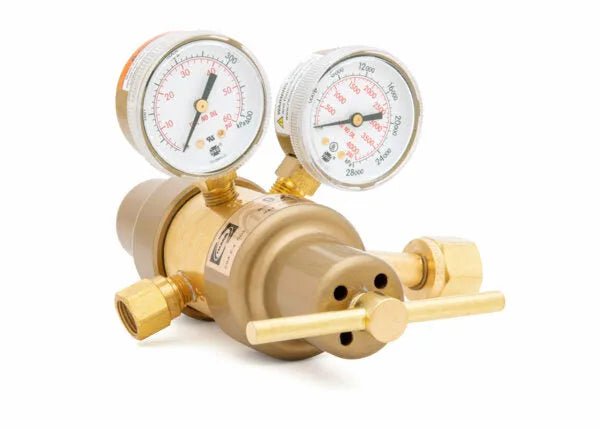

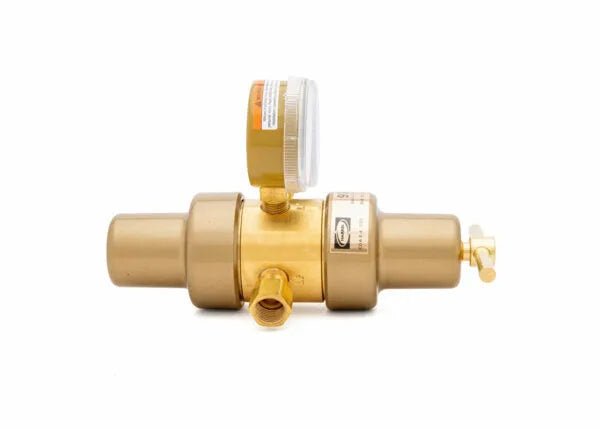

Harris 9296-125-320 Two Stage Carbon Dioxide Regulator - 3302615
Model 9296 carbon dioxide regulator is a standard for general purpose, laboratory, industrial and welding applications where neoprene diaphragms are acceptable. This heavy duty model is designed for applications where a constant delivery pressure is required over a wide range of inlet pressures. It features a one-piece encapsulated seat design with internal filter and Teflon® seat.
Features
- General purpose applications where neoprene diaphragms are acceptable
- Designed for applications where a constant delivery pressure is required
- Easy-to-operate brass "T" screw adjusting handle
- Brass body and painted brass bonnet for longer service life
- Neoprene diaphragm for improved pressure control
- 2" Steel dual scale easy-to-read gauges
- One-piece encapsulated seat design with internal filter to protect the PTFE Teflon® seat from particulate contamination
- Maximum inlet pressure is 3000 psig
- Equipped with a tamper-proof, self-reseating, high pressure internal safety relief valve
- Conforms to CGA E-4 standard
Specifications
Equipment
| Adjusting Screw | Brass "T" screw handle |
| Body | Brass |
| Bonnet | Gold painted brass |
| Certification | CGA E-4 |
| Cv | 0.15 |
| Delivery Pressure Gauge (PSIG) | 150 |
| Delivery Pressure Range (PSIG) | 0 - 125 |
| Diaphragm | Neoprene |
| Duty | Heavy |
| Gas / Gas Service | Carbon Dioxide |
| Gauges | 2” Steel dual scale |
| Inlet Connection | CGA 320 |
| Maximum Inlet Pressure (PSIG) | 3000 |
| Outlet Connection | 5/8" - 18 RH (F) |
| Pressure Regulation PSIG/100 PSIG | 0.04 psig |
| Seat | PTFE Teflon® |
| Supply Pressure Gauge (PSIG) | 4000 |
Warranty
| Warranty | 7 Years |
- Conforms to CGA E-4 standard
