Harris 9296-50-510P Two Stage LPG Regulator - 3302602

SKU: 3302602
$536.12
Financing / Leasing Available

Welding Equipment & Industrial Supply Financing

WeldingMart has partnered with Clicklease to offer fast, flexible financing for welding equipment and industrial supplies. Get the equipment you need with affordable monthly payments tailored to your budget.

Whether you're purchasing a new MIG welder, TIG welder, engine-driven welder, or welding accessories, our financing solutions help you equip your shop without large upfront costs. We offer lease-to-own options on trusted brands like Lincoln Electric, Miller Electric, and more.

Apply in minutes and get a decision in seconds:

  • No hard credit check
  • No lengthy paperwork
  • Fast approvals

Why Choose Lease-to-Own Welding Equipment?

Lease-to-own financing gives you the flexibility to grow your business while preserving cash flow.

Key benefits include:

  • Low upfront cost – Start using equipment without a large initial investment
  • Flexible terms – Choose payment plans that fit your budget
  • Access to latest technology – Stay competitive with modern welding equipment
  • Ownership options – Buy the equipment, upgrade, or return it at the end of the lease

You also have the option to purchase your equipment early, including within the first 12 months.

Tax Advantages

In many cases, lease payments for business-use equipment may be tax-deductible. This can reduce your overall cost and free up capital for additional tools, supplies, or labor.

(Consult your tax advisor for details.)

Apply in Minutes

Financing is available 24/7, so you can apply whenever it’s convenient.

  • Application takes about 4 minutes
  • Instant decision in most cases
  • Immediate access to eDocs
  • Order your equipment right away

If approved for more than your initial request, you can easily adjust your financing to include additional items.

Need Help?

Have questions about financing or lease-to-own options?

Contact the WeldingMart team — we’re here to help you find the right solution for your business. 877-532-9353.


Model 9296-50-510P general-purpose heavy duty neoprene diaphragm two-stage LPG regulator. Designed specifically for propane service, but can be used with any of the other welding grade liquid petroleum (LPG) gases. NOT FOR USE WITH ACETYLENE.
Gas Type: LPG
Inlet: CGA 510P
Outlet: 9/16 in. - 18 LH
Certification: CGA E-4
Overview

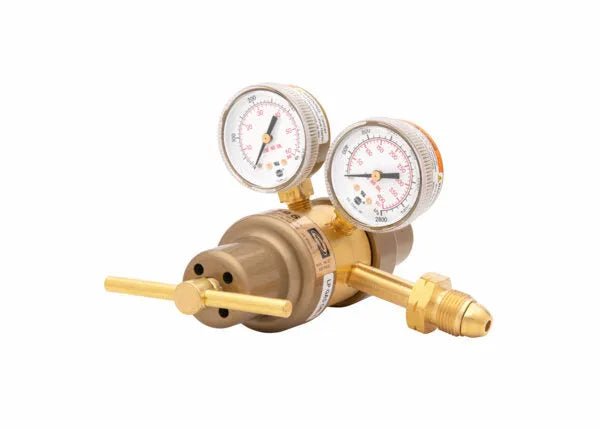

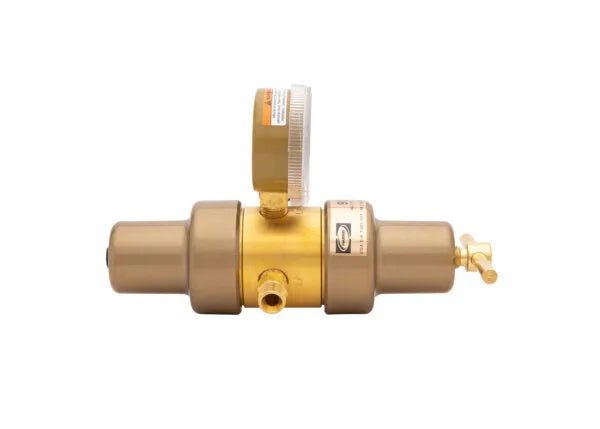

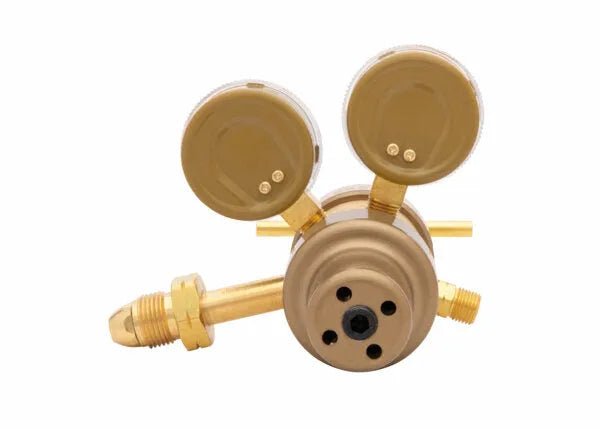

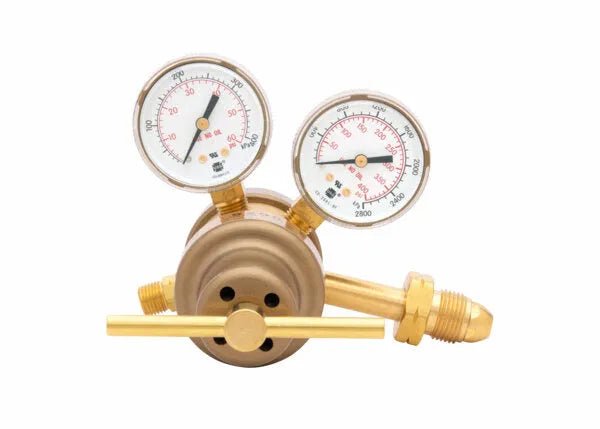

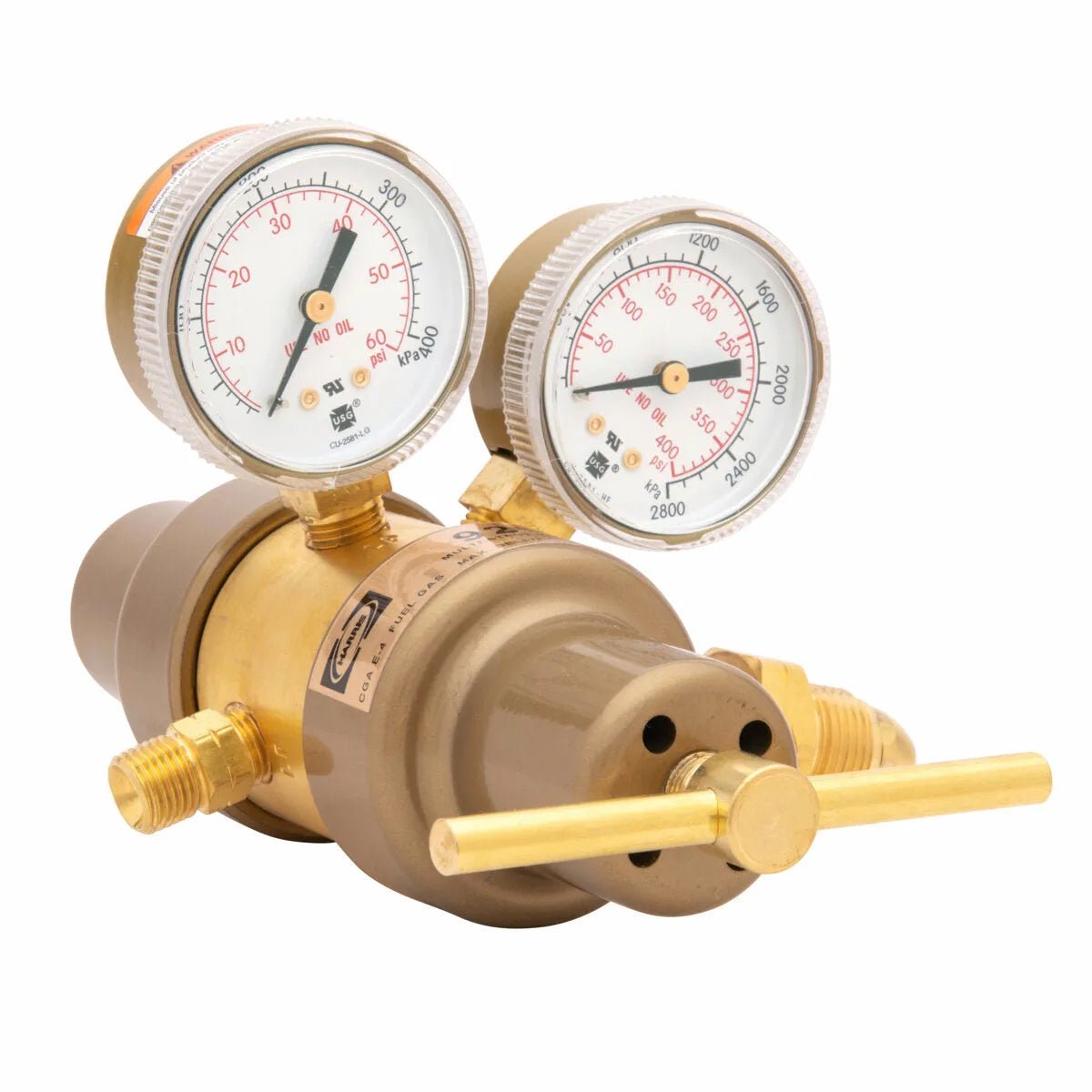

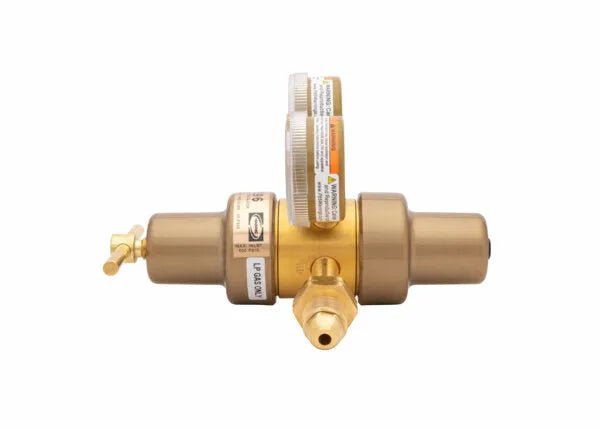

Harris Model 9296-50-510P Two Stage Pressure Regulator - 3302602

Model 9296 is a standard for general purpose, laboratory, industrial and welding applications where neoprene diaphragms are acceptable. This heavy duty model is designed for applications where a constant delivery pressure is required over a wide range of inlet pressures. It features a one-piece encapsulated seat design with internal filter and Teflon® seat. Can be used with any of the other welding grade liquid petroleum gases. NOT FOR USE WITH ACETYLENE.

Features
  • General purpose applications where neoprene diaphragms are acceptable
  • Designed for applications where a constant delivery pressure is required
  • Easy-to-operate brass T-screw adjusting handle
  • Brass body and painted brass bonnet for longer service life
  • Neoprene diaphragm for improved pressure control
  • 2 in. Painted gold steel dual scale easy-to-read gauges (psi/kPa)
  • One-piece encapsulated seat design with internal filter to protect the PTFE Teflon® seat from particulate contamination
  • Maximum inlet pressure is 500 PSIG
  • Equipped with a tamper-proof, self-reseating, high pressure internal safety relief valve
  • Conforms to CGA E-4 standard
Specifications

Equipment

Adjusting Screw Brass T-screw
Body Brass
Bonnet Gold painted brass
Certification CGA E-4
Cv 0.15
Delivery Pressure Gauge (PSIG) 60
Delivery Pressure Range (PSIG) 0 - 50
Diaphragm Neoprene
Duty Heavy
Gas / Gas Service LPG - Designed specifically for propane service, but can be used with any of the other welding grade liquid petroleum (LPG) gases. NOT FOR USE WITH ACETYLENE.
Gauges 2 in. Steel dual scale
Inlet Connection CGA 510P
Maximum Inlet Pressure (PSIG) 500
Outlet Connection 9/16 in. - 18 LH
Pressure Regulation PSIG/100 PSIG 0.04
Seat PTFE Teflon®
Supply Pressure Gauge (PSIG) 400

Warranty

Warranty 7 Years
