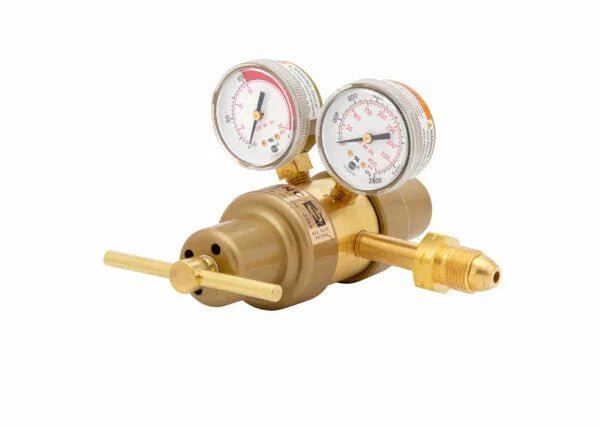

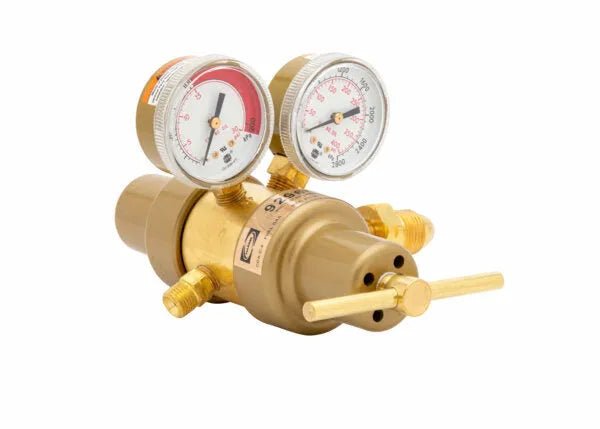

Harris 9296NC-15-300 General-Purpose Two Stage Acetylene Regulator - 3302600
Model 9296 acetylene regulator is a standard for general purpose, laboratory, industrial and welding applications where neoprene diaphragms are acceptable. This heavy duty model is designed for applications where a constant delivery pressure is required over a wide range of inlet pressures. It features a one-piece encapsulated seat design with internal filter and neoprene seat.
Features
- General purpose applications where neoprene diaphragms are acceptable
- Designed for applications where a constant delivery pressure is required
- Easy-to-operate brass T-screw adjusting handle
- Brass body and painted brass bonnet for longer service life
- Neoprene diaphragm for improved pressure control
- 2 in. Steel dual scale easy-to-read gauges
- One-piece encapsulated seat design with internal filter to protect the neoprene seat from particulate contamination
- Maximum inlet pressure is 3000 PSIG
- Equipped with a tamper-proof, self-reseating, high pressure internal safety relief valve
- Conforms to CGA E-4 standard
Specifications
Equipment
| Adjusting Screw | Brass T-screw |
| Body | Brass |
| Bonnet | Gold painted brass |
| Certification | CGA E-4 |
| Cv | 0.15 |
| Delivery Pressure Gauge (PSIG) | 30RZ |
| Delivery Pressure Range (PSIG) | 0 - 15 |
| Diaphragm | Neoprene |
| Duty | Heavy |
| Gas / Gas Service | Acetylene |
| Gauges | 2 in. Steel dual scale |
| Inlet Connection | CGA 300 |
| Maximum Inlet Pressure (PSIG) | 500 |
| Outlet Connection | 9/16 in. - 18 LH |
| Pressure Regulation PSIG/100 PSIG | 0.04 |
| Seat | Neoprene |
| Supply Pressure Gauge (PSIG) | 400 |
Warranty
| Warranty | 7 Years |
