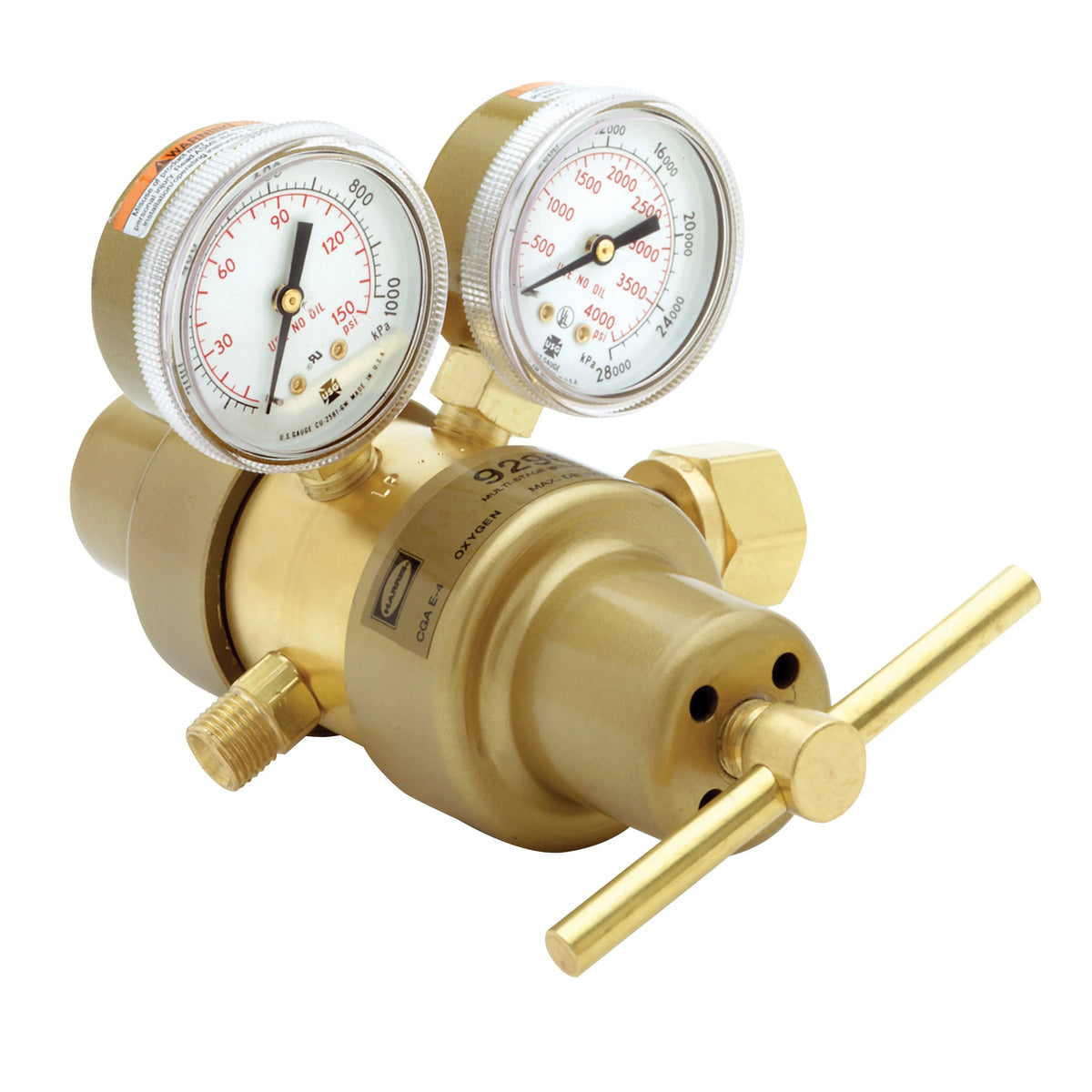

Harris 9296SS-125-540 Two Stage Oxygen Regulator - 3302684
Model 9296SS is a general purpose, heavy duty, oxygen regulator recommended for applications where outgassing and/or permeation are concerns. It is also designed for applications where a constant delivery pressure is required over a wide range of inlet pressures. This model features a Stainless Steel diaphragm, brass body, 2" brass dual scale gauges, "T" screw adjustment and one-piece encapsulated seat design with internal filter and PTFE Teflon seat.
Features
- Used for applications where Stainless Steel diaphragms are recommended to prevent outgassing and/or permeation from occurring.
- Designed for applications where a constant delivery pressure is required
- Easy-to-operate brass "T" screw adjusting handle
- Brass body and painted brass bonnet for longer service life
- Stainless Steel diaphragms to prevent out-gassing and/or permeation
- 2" Steel dual scale easy-to-read gauges
- One-piece encapsulated seat design with internal filter to protect the PTFE Teflon seat from particulate contamination
- Maximum inlet pressure is 3000 psig
- Equipped with a tamper-proof, self-reseating, high pressure internal safety relief valve
- Conforms to CGA E-4 standard
Specifications
Equipment
| Adjusting Screw | Brass "T" screw handle |
| Body | Brass |
| Bonnet | Gold painted brass |
| Certification | CGA E-4 |
| Cv | 0.15 |
| Delivery Pressure Gauge (PSIG) | 150 |
| Delivery Pressure Range (PSIG) | 0 – 125 |
| Diaphragm | Stainless Steel |
| Duty | Heavy |
| Gas / Gas Service | Oxygen (O2) |
| Gauges | 2” Gold painted steel dual scale (psi/kPa) |
| Inlet Connection | CGA 540 |
| Maximum Inlet Pressure (PSIG) | 3000 |
| Outlet Connection | 9/16" - 18 RH |
| Pressure Regulation PSIG/100 PSIG | 0.04 |
| Seat | PTFE Teflon |
| Supply Pressure Gauge (PSIG) | 4000 |
Warranty
| Warranty | 7 Years |
