What is the Harris 97/3 Lead-Free Solid Wire Plumbing Solder - 0.118 in (3.0 mm) - 25 lb Box - 331761 used for?

Lead-free solder is used for joining metal components at temperatures below 840°F (450°C) in plumbing, electronics, and light metal fabrication. Lead-free solders are required by NSF/ANSI 61 for potable water plumbing systems and are mandatory in many states — never use lead-containing solder on drinking water supply lines.

Does the Harris 97/3 Lead-Free Solid Wire Plumbing Solder - 0.118 in (3.0 mm) - 25 lb Box - 331761 require separate flux?

A separate flux must be applied to clean joint surfaces before soldering with wire or bar solder. Harris Bridgit Flux or a similar non-corrosive paste flux is recommended for plumbing copper joints. Apply flux to all contact surfaces, assemble the joint, then heat the base metal and touch solder to the joint — the solder flows by capillary action into the flux-wetted gap. Remove flux residue after the joint cools.

What is the correct soldering technique for the Harris 97/3 Lead-Free Solid Wire Plumbing Solder - 0.118 in (3.0 mm) - 25 lb Box - 331761?

Soldering technique for copper plumbing: clean pipe and fitting surfaces with sandpaper or steel wool until bright, apply paste flux, assemble the joint, and heat the fitting (not the solder) with a torch until solder flows freely when touched to the joint. Remove heat as soon as the solder flows — overheating burns the flux and can cause a dry joint or oxidized solder. Allow to cool for 30 seconds before wiping and moving the assembly.

What diameter and quantity is the Harris 97/3 Lead-Free Solid Wire Plumbing Solder - 0.118 in (3.0 mm) - 25 lb Box - 331761 available in?

Wire solder is sold in various diameters and spool weights. For residential plumbing, 1/8 in (3.2 mm) or 3/32 in (2.4 mm) wire on a 1 lb spool covers most common repairs. For production plumbing work, larger spools (5 lb, 25 lb) minimize changeover and reduce per-foot cost.

How should I store the Harris 97/3 Lead-Free Solid Wire Plumbing Solder - 0.118 in (3.0 mm) - 25 lb Box - 331761?

Store solder in a cool, dry location away from moisture and chemical fumes. Lead-free solders containing silver (Sn-Ag, Sn-Ag-Cu) are more brittle than traditional tin-lead solders and should be handled with care to avoid cracking the wire on the spool. Flux-core solder should be stored away from extreme heat to prevent flux degradation inside the core.

1 5

Harris Welding Wire 0.118" – 25 lb

SKU: 331761

$1,467.50

Financing Options

•

Loading Affirm Estimate…

•

Lease-To-Own From $67/mo — 24-Mo Term, No Hard Credit Check

Factory Direct

Free Shipping

Lowest Price

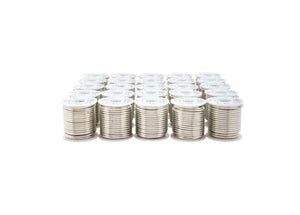

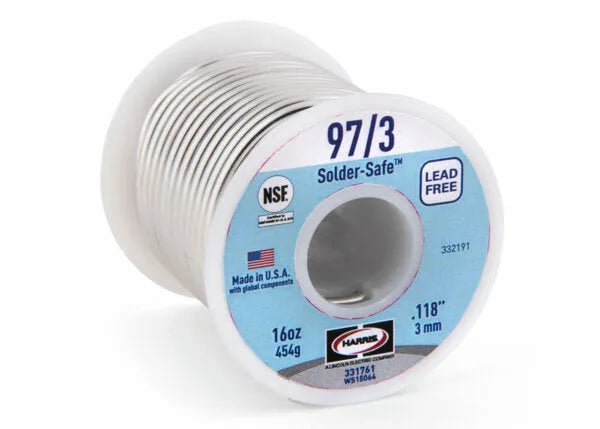

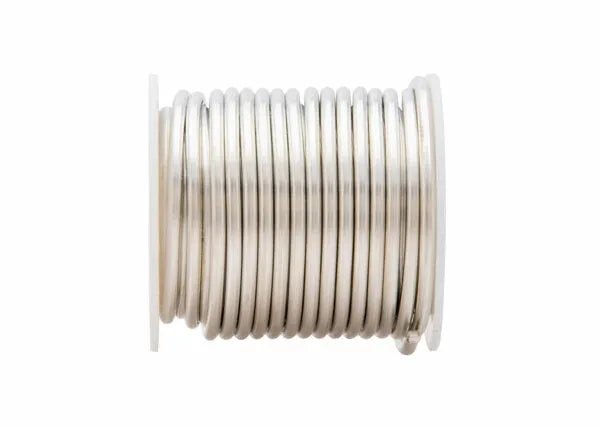

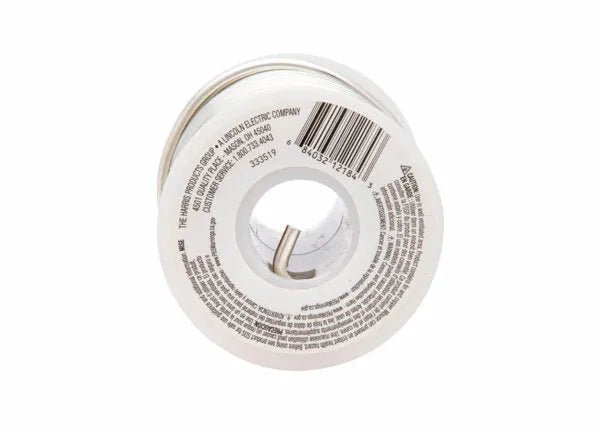

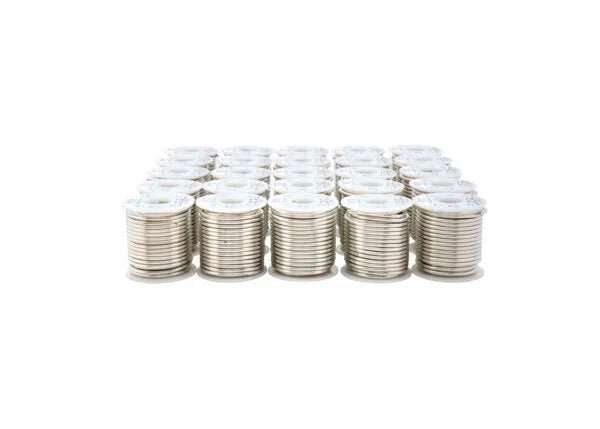

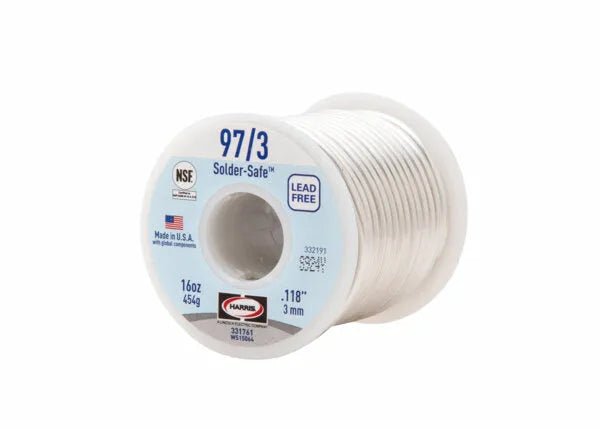

97/3 Solder-Safe lead-free solid wire solder 0.118 in. x 1 lb. spool x 25 lb. per box

Overview

97/3 Solder-Safe™ lead-free solid wire tin-copper solder has a faster melting range allowing operators to rapidly fill small, tight-fitting pipe connections. Its low temperature and free-flowing properties reduce cycle time and required heat input. 97/3 is primarily used for joining copper pipe in potable water systems This tin-based alloy conforms to the 1986 Federal Safe Drinking Water Act Amendment. It is 100% environmentally safe with no antimony or nickel. Complies with the EU Reach & RoHS directive.

Features

Solidus of 450°F (232°C)
Used in plumbing and potable water systems
100% environmentally safe as it is completely free of antimony or nickel
Meets NSF/ANSI Standard 61 for drinking water system components - health effects
Meets NSF/ANSI Standard 372 for drinking water system components - lead content & US Safe Drinking Water Act amendments
Complies with the EU Reach & RoHS directive

Reviews

Q&A

Product Overview

Features

Solidus of 450°F (232°C)
Used in plumbing and potable water systems
100% environmentally safe as it is completely free of antimony or nickel
Meets NSF/ANSI Standard 61 for drinking water system components - health effects
Meets NSF/ANSI Standard 372 for drinking water system components - lead content & US Safe Drinking Water Act amendments
Complies with the EU Reach & RoHS directive
