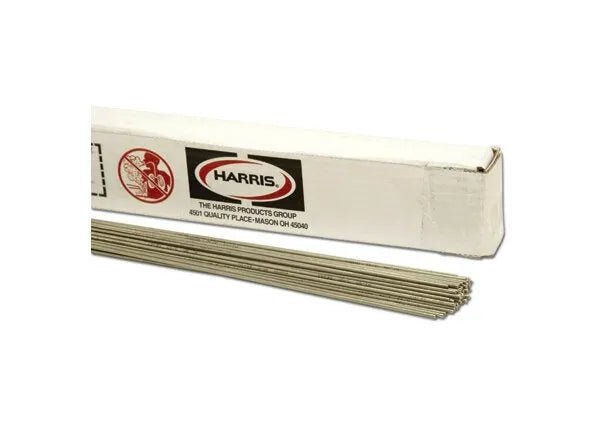

Harris 99 Nickel TIG GTAW Welding Rod 1/8 5LB Box - NI99T60

Product Overview

What Is the Harris 99 Nickel TIG Welding Rod (ERNi-1)?

The Harris NI99T60 is a 99% nickel TIG (GTAW) welding rod classified ERNi-1 per AWS A5.14/A5.14M, packaged as 1/8 in (3.2 mm) diameter, 36-inch cut lengths in a 5 lb box. This nearly pure nickel filler is the industry standard for TIG welding gray cast iron, ductile iron, and nickel alloy base metals where the deposit must match or approach parent metal composition for strength, machinability, and corrosion resistance. Harris Products Group, a Lincoln Electric company, manufactures NI99T60 to AWS A5.14 chemistry requirements. WeldingMart is an authorized Harris distributor.

Pure nickel deposits are soft, machinable, and ductile — critical properties for cast iron repair where post-weld machining is required. Unlike steel filler metals that produce hard, brittle deposits in the cast iron heat-affected zone, ERNi-1 produces weld metal with a coefficient of thermal expansion close to that of gray cast iron, minimizing stress concentration at the weld boundary.

Specifications & AWS Classification

AWS A5.14 is the specification for nickel and nickel-alloy bare welding electrodes and rods. Full data at harriswelding.com.

Best Applications for 99 Nickel TIG Welding Rod

• Gray cast iron repair: Welding cracked gray cast iron engine blocks, manifolds, pump bodies, and machine tool bases where post-weld machining is required.
• Ductile iron repair: TIG repair of ductile iron castings requiring ductile, machinable weld deposits compatible with the ferritic/pearlitic matrix.
• Dissimilar joints — cast iron to steel: Joining cast iron to mild steel or stainless steel where nickel provides a transition layer between the incompatible thermal expansion coefficients.
• Nickel-base alloy welding: GTAW of commercially pure nickel (Alloy 200/201) and similar nickel alloys in chemical processing equipment.
• Previously deposited weld metal: Applying additional nickel passes over previously deposited weld metal on cast iron repairs without creating a hardness mismatch.
• Mig cast iron welding transition layers: Used as a butter layer prior to steel MIG or SMAW over-welding when a ductile transition between cast iron and steel is required.

How to Use — Settings, Technique, and Process Parameters

For gray cast iron, the stringer bead + peening technique is standard: weld a short bead (1–2 in), stop, and peen the bead lightly with a ball-peen hammer while still hot. This relieves stress in the deposited nickel and the cast iron HAZ. Allow to air cool slowly — never quench with water. Avoid long continuous passes that build up heat and cause cracking.

Storage & Handling

Store Harris NI99T60 in original packaging at 40–120 °F in a dry location. Nickel filler rod is less hygroscopic than steel but should be kept dry to avoid hydrogen pickup at the weld pool. Do not use rods showing heavy surface oxidation — light brownish tarnish is acceptable; clean with fine abrasive cloth before use. Handle with clean gloves to avoid oil contamination.

Compatible Machines & Shielding Gas

Harris NI99T60 requires a CC TIG machine capable of DCEN output at 150–220 A for typical gray cast iron repairs. Standard TIG power sources are compatible. Use pure argon or Ar-He blend; avoid nitrogen-bearing or CO₂-containing gases which adversely affect nickel weld purity. See also Harris Aluminum Bronze A2 MIG Wire for cast iron MIG braze welding, and all welding wire.

FAQs — Harris 99 Nickel TIG Welding Rod

Why use 99% nickel TIG rod instead of steel for cast iron repair?

Steel deposits are hard (300–500 HV) and brittle when diluted with cast iron, making them very difficult to machine and prone to cracking in the heat-affected zone. Nickel deposits are soft (100–140 HB), ductile, and machinable, with a thermal expansion coefficient close to gray cast iron. Nickel deposits are also compatible with subsequent passes over previously deposited weld metal without creating hardness steps.

What is the peening technique for cast iron TIG welding?

The peening technique involves welding short stringer beads (1–2 in) and immediately peening each bead with a hammer while still hot. Peening stretches the bead longitudinally, relieving the compressive stress that would otherwise accumulate and crack the heat-affected zone of the brittle cast iron. This technique is standard for both TIG and stick cast iron welding.

Can I use 99 nickel rod for mig cast iron welding?

No — Harris NI99T60 is a TIG (GTAW) rod for hand-fed GTAW only. It is not compatible with MIG wire feeders. For MIG cast iron welding, use ERNiCl nickel-iron MIG wire (separate product). TIG nickel rod provides better control for precision repairs; MIG is faster for production repairs with less critical joint geometry.

What preheat temperature is needed for gray cast iron TIG repair?

Preheat to 300–500 °F (150–260 °C) is recommended for gray cast iron. Higher preheat (up to 700 °F) is used for complex castings with tight geometry. Avoid thermal shock by preheating slowly with a large neutral flame. Verify temperature with temperature-indicating crayons or a contact pyrometer. Weld with short stringer beads and peen each bead before the next pass.

What is ERNi-1 and how is it classified?

ERNi-1 is the AWS A5.14 classification for commercially pure nickel filler wire (minimum 99% Ni) with titanium as a deoxidizer. "ER" = electrode/rod, "Ni" = nickel base, "1" = the specific designation for commercially pure nickel. Harris NI99T60 is classified ERNi-1 and is also equivalent to UNS N02061.

Can I weld ductile iron with 99 nickel TIG rod?

Yes. Ductile iron repair with ERNi-1 follows the same approach as gray cast iron — preheat, stringer beads, peen while hot, slow cool. Ductile iron is slightly more weldable than gray iron (lower carbon equivalent), but nickel filler is still recommended for machinable, crack-resistant deposits, especially for pump and valve body repairs.

What is the difference between ERNi-1 and ERNiCl (nickel-iron) for cast iron?

ERNi-1 (99% Ni) produces softer, more machinable deposits (100–140 HB) and is better for repairs requiring post-weld machining. ERNiCl (nickel-iron, ~55% Ni) is harder (140–200 HB) and has higher tensile strength — better for structural repairs where strength is more important than machinability. Most cast iron TIG repair uses ERNi-1; ERNiCl is more common in stick (SMAW) electrode form.

Site Guide — Selecting Nickel TIG Rod for Cast Iron Repair

On this site, WeldingMart stocks Harris NI99T60 as the recommended ERNi-1 nickel TIG rod for gray cast iron and ductile iron repair. The equivalents to this classification in international standards include EN ISO 18274 Ni1 and related pure nickel filler designations. For strong, clean cast iron repairs, nickel rod is required — steel electrodes are not recommended as a substitute when machinability of the deposit is required. When you add NI99T60 to cart, note that the 5 lb box provides approximately 35–45 individual 36-inch rods at 1/8 in diameter — sufficient for most medium to large repair projects. The color of ERNi-1 deposits is silver-bright — similar to nickel alloy parent metal — which confirms proper fusion into the gray cast iron base. The recommended peen-and-cool technique described above ensures clean, crack-free repairs that pass dye-penetrant testing.

99% Nickel TIG Welding — Cast Iron Repair, Technique, and Alloy Selection

Harris NI99T60 provides 99% nickel TIG (GTAW) welding rod at 1/8 in x 36 in, 5 lb box — the standard filler for TIG welding and braze welding gray cast iron, ductile iron, and malleable iron. ENi-CI (AWS A5.15) classification, 99% Ni filler produces a highly ductile, machinable deposit that absorbs the differential thermal expansion between the iron base metal and the weld zone, significantly reducing cold cracking risk compared to high-carbon iron fillers.

The 99% nickel classification (ENi-CI / ERNi-CI) is the premium option for cast iron welding compared to 55% nickel (ENiFe-CI) or steel fillers. The higher nickel content produces:

• Maximum machinability — 99% Ni deposits can be drilled, tapped, and machined immediately after welding without annealing
• Higher ductility (elongation > 10%) — absorbs thermal stress from cooling differential between weld and cast iron HAZ
• Excellent compatibility with both gray and ductile cast iron base metals
• Better color match to base metal after machining compared to 55% NiFe filler

GTAW Setup for 99% Nickel Cast Iron Rod

Cast Iron Repair with 99% Nickel TIG Rod — Best Practices

Cast iron cracking is the most common failure mode in TIG welding iron castings — almost always caused by rapid cooling of the weld zone while the base metal is cold. The carbon-rich iron base metal (2–4% C in gray iron, vs. 0.1–0.3% C in steel) cannot absorb stress through plastic deformation the way steel does. Correct preheat and slow cooling are non-negotiable for anything larger than a superficial cosmetic repair:

1. Preheat uniformly: Small castings: heat with torch to 400–600 °F, visible dull red in low light. Large castings: oven preheat at 500–700 °F for 30+ minutes. Check with temperature-indicating sticks at multiple points. Cold spots in the casting create stress risers during cooling.
2. Weld in short passes: 3/4 in to 1 in passes, then peen immediately (light blows with ball-peen hammer while still hot). Peening plastically deforms the nickel deposit while it is ductile, reducing tensile stress in the weld zone.
3. Maintain preheat between passes: Do not allow the casting to cool below preheat temp between passes. Use a torch to maintain temp if welding multiple sections.
4. Slow cool: After welding, bury immediately in dry sand (vermiculite works well), or wrap in ceramic fiber insulating blanket. The goal is cooling at < 50 °F/hour through the 1,000–700 °F range where martensite forms in the HAZ. Rapid air cooling creates white iron (martensite) in the HAZ — extremely brittle and unmachineable.

ENi-CI vs. ENiFe-CI — When to Use 99% vs. 55% Nickel

The 99% nickel (ENi-CI) and 55% nickel (ENiFe-CI) cast iron fillers serve different needs:

• Use ENi-CI (99% Ni) when: The repair requires post-weld machining; maximum ductility is needed; welding gray iron where color match matters; the casting geometry allows slow cooling
• Use ENiFe-CI (55% Ni) when: Cost is a constraint; welding ductile iron where iron content improves match; building up worn surfaces; welding nodular iron castings
• For TIG welding specifically: ENi-CI (as ERNi-CI TIG rod) produces cleaner, more controllable puddles than ENiFe-CI in GTAW mode. The high nickel content maintains a stable arc at the lower amperage typical of TIG on thin cast iron sections.

Harris NI99T60 is the 5 lb box format — appropriate for small repair shops and maintenance facilities. For production quantities, Harris NI99 is available in larger formats. See all welding wire and rod products at WeldingMart.

99% Nickel TIG Welding — Cast Iron Repair, Technique, and Alloy Selection

Harris NI99T60 provides 99% nickel TIG (GTAW) welding rod at 1/8 in x 36 in, 5 lb box — the standard filler for TIG welding and braze welding gray cast iron, ductile iron, and malleable iron. ENi-CI (AWS A5.15) classification, 99% Ni filler produces a highly ductile, machinable deposit that absorbs the differential thermal expansion between the iron base metal and the weld zone, significantly reducing cold cracking risk compared to high-carbon iron fillers.

The 99% nickel classification (ENi-CI / ERNi-CI) is the premium option for cast iron welding compared to 55% nickel (ENiFe-CI) or steel fillers. The higher nickel content produces:

• Maximum machinability — 99% Ni deposits can be drilled, tapped, and machined immediately after welding without annealing
• Higher ductility (elongation > 10%) — absorbs thermal stress from cooling differential between weld and cast iron HAZ
• Excellent compatibility with both gray and ductile cast iron base metals
• Better color match to base metal after machining compared to 55% NiFe filler

GTAW Setup for 99% Nickel Cast Iron Rod

Cast Iron Repair with 99% Nickel TIG Rod — Best Practices

Cast iron cracking is the most common failure mode in TIG welding iron castings — almost always caused by rapid cooling of the weld zone while the base metal is cold. The carbon-rich iron base metal (2–4% C in gray iron, vs. 0.1–0.3% C in steel) cannot absorb stress through plastic deformation the way steel does. Correct preheat and slow cooling are non-negotiable for anything larger than a superficial cosmetic repair:

1. Preheat uniformly: Small castings: heat with torch to 400–600 °F, visible dull red in low light. Large castings: oven preheat at 500–700 °F for 30+ minutes. Check with temperature-indicating sticks at multiple points. Cold spots in the casting create stress risers during cooling.
2. Weld in short passes: 3/4 in to 1 in passes, then peen immediately (light blows with ball-peen hammer while still hot). Peening plastically deforms the nickel deposit while it is ductile, reducing tensile stress in the weld zone.
3. Maintain preheat between passes: Do not allow the casting to cool below preheat temp between passes. Use a torch to maintain temp if welding multiple sections.
4. Slow cool: After welding, bury immediately in dry sand (vermiculite works well), or wrap in ceramic fiber insulating blanket. The goal is cooling at < 50 °F/hour through the 1,000–700 °F range where martensite forms in the HAZ. Rapid air cooling creates white iron (martensite) in the HAZ — extremely brittle and unmachineable.

ENi-CI vs. ENiFe-CI — When to Use 99% vs. 55% Nickel

The 99% nickel (ENi-CI) and 55% nickel (ENiFe-CI) cast iron fillers serve different needs:

• Use ENi-CI (99% Ni) when: The repair requires post-weld machining; maximum ductility is needed; welding gray iron where color match matters; the casting geometry allows slow cooling
• Use ENiFe-CI (55% Ni) when: Cost is a constraint; welding ductile iron where iron content improves match; building up worn surfaces; welding nodular iron castings
• For TIG welding specifically: ENi-CI (as ERNi-CI TIG rod) produces cleaner, more controllable puddles than ENiFe-CI in GTAW mode. The high nickel content maintains a stable arc at the lower amperage typical of TIG on thin cast iron sections.

Harris NI99T60 is the 5 lb box format — appropriate for small repair shops and maintenance facilities. For production quantities, Harris NI99 is available in larger formats. See all welding wire and rod products at WeldingMart.

99% Nickel Cast Iron Rod — Stringer Bead Technique, Machining, and Dissimilar Metals

The stringer bead technique is the standard method for cast iron TIG welding with 99% nickel (ENi-CI) rod. Using stringer beads rather than weave patterns limits heat input per pass, minimizing the width of the heat-affected zone where white iron (martensite) formation occurs. Each stringer bead is immediately peened after deposition — light hammer blows on the still-hot nickel deposit plastically deform the low alloy nickel weld metal, relieving tensile stress before it builds to crack-initiating levels. The stringer bead technique, combined with correct preheat (400–700 °F) and slow cooling, consistently produces high quality welds on gray and ductile cast iron.

Post-weld machinability is one of the primary reasons to select 99% nickel over 55% NiFe rod for cast iron repair. ENi-CI deposits have lowest weld metal dilution from the iron base metal (compared to ENiFe-CI at 55% Ni), producing softer, more uniform deposits that drill, tap, and turn without chipping. Shops that repair machining errors in cast iron workpieces — accidentally drilled holes, oversized bores, cracked flanges that need facing — require a filler that can be built up and re-machined to tolerance. The 99% nickel rod produces high quality welds that machine to a consistent finish without hard spots.

For joining dissimilar metals — cast iron to carbon steel, cast iron to low alloy steel structural sections, or cast iron to mild steel plate — ENi-CI rod provides acceptable preheat temperature flexibility. Carbon steel sections can be joined to cast iron at 300–500 °F preheat when the steel section is not excessively restrained. Low alloy steel joined to cast iron requires matching the preheat to the carbon equivalent of the steel, not just the cast iron. Repairing machining errors in complex cast iron components (engine blocks, machine bases, pump bodies) is one of the most valued applications for 99% nickel TIG rod because it allows restoration of critical dimensions without scrappping expensive castings.

99 Nickel TIG Rod — Website Ordering, Reviews, and Oscillating Technique Guide

The Harris NI99T60 nickel 99 TIG rod listing on the WeldingMart website verifies product authenticity and displays current availability. WeldingMart protects customers by sourcing directly from Harris — the website page confirms all specifications. Reviews from maintenance shops confirm that nickel 99 TIG rod (ENi-CI) is the preferred cast iron filler for machinability and ductility. The displayed product verifies 1/8 in x 36 in, 5 lb box specification with AWS A5.15 ENi-CI classification.

Beyond the stringer bead technique described earlier, an oscillating technique is sometimes used for cast iron repair on wide joints. Oscillating technique involves a slow side-to-side torch motion (1/4 to 1/2 in oscillation width) that distributes heat across the joint face and fills wider gaps more efficiently than straight stringer beads. However, oscillating technique increases heat input per inch of weld compared to stringers — use it only on sections preheated to 500 °F+ where the expanded heat-affected zone is acceptable. For machining errors repair (filling drilled holes, building up undersized bores), oscillating technique is more productive; for crack repair on brittle gray iron, stringer beads with immediate peening are the safer approach. The nickel 99 deposit produced by oscillating technique has the same chemistry as stringer beads — the technique difference affects heat distribution, not deposit composition. WeldingMart's website bot-free checkout page makes ordering 5 lb boxes simple; the page displayed when adding to cart protects your order through secure checkout. Email or phone for volume pricing on nickel 99 TIG rod when ordering multiple boxes for cast iron repair production.

99 Nickel Rod — Gradual Cooling, Straight Polarity, and TIG Applications Guide

Gradual cooling after cast iron TIG welding with 99% nickel rod is one of the most important process requirements. Gradual cooling from the post-weld temperature (above 500 °F) to ambient prevents the formation of hard martensite (white iron) in the heat-affected zone adjacent to the nickel deposit. Gradual cooling at less than 50 °F per hour through the 1,200–600 °F range is the target — achieved by burying the casting in dry sand or wrapping in ceramic fiber insulating blanket after the last weld pass. Relieving stresses through the gradual cooling process is as important as the nickel filler chemistry for producing crack-free cast iron repairs.

Polarity for ENi-CI nickel TIG rod: use straight polarity (DCEN — direct current electrode negative). Straight polarity concentrates heat at the work piece (not the electrode), providing better penetration and electrode longevity. Reverse polarity (DCEP) is not used for nickel TIG rod on cast iron. Developed primarily for cast iron repair, 99% nickel (ENi-CI) is also used for copper monel to steel transition joints and dissimilar metal combinations where high ductility filler is needed to bridge thermal expansion differences. TIG applications for 99% nickel rod include engine block crack repair, pump housing restoration, and detective castings (castings with foundry defects discovered after machining). For straight polarity TIG on cast iron, a 2% ceriated (gray band) tungsten at DCEN maintains a stable arc without the balled tip formation that occurs on AC. Security-protected ordering at WeldingMart verifies genuine Harris product. Bot-free checkout protects your transaction. The website page for NI99T60 displays current pricing; the security service verifies your order on placement. Gradual cooling combined with peen-and-stringer bead technique and straight polarity DCEN produces the most reliable nickel 99 TIG results on gray and ductile cast iron repair.

Nickel 99 TIG Applications — Machinability, Reduce Dilution, and Worn Parts Repair

Maximum machineability is the primary technical advantage of ENi-CI (99% nickel) TIG rod over ENiFe-CI (55% nickel-iron) for cast iron repair. Deposits that are fully machinable allow shops to increase machinability of repair sections to match the surrounding base metal, enabling accurate dimensioning after welding without hardened areas. For worn parts — engine journals, bearing housings, pump bores — the repair process involves building up the worn area with nickel 99 TIG deposits, then machining back to dimension. Maximum machineability means the deposited weld metal cuts smoothly with standard carbide tooling without special feeds and speeds.

To reduce dilution from the cast iron base metal, use short stringer beads at minimum heat input (low amperage, fast travel). Reduce dilution by keeping each bead pass thin — heavy bead dilution increases iron pickup in the nickel deposit, reducing machinability. Minimal amount of iron dilution (under 20%) maintains the fully machinable ENi-CI properties. For parts greater than 1/2 in wall thickness, bevel heavy sections (included angle 70–80°) to allow full-penetration joining with multiple stringer passes rather than one large-dilution root pass. Joint area preparation — V-groove or U-groove — ensures access for stringer beads at the root without excess dilution. Automatic TIG welding of cast iron with nickel 99 rod is possible on production repair lines where castings with repeatable geometry can be fixtured and welded with consistent parameters. MIG applications of nickel filler for cast iron use ENiFe-CI MIG wire, not TIG rod — the NI99T60 is a TIG rod only. Bot-protected WeldingMart checkout secures your nickel TIG rod order. Security service verifies orders without manual waiting. Protect your supply of 99% nickel TIG rod by ordering from an authorized Harris distributor — the website verifies Harris brand authenticity and security of the transaction.

The ERNi-CI (ERNI CI) classification of 99% nickel TIG rod covers the same alloy as ENi-CI in rod form — the ER designation (bare wire/rod for TIG) vs. EN (covered electrode for SMAW). Security-protected WeldingMart checkout: bot-filtered, no-waiting ordering for nickel 99 TIG rod. Check stock availability on the product page. The buildup procedure for cast iron repair with nickel 99 rod: strike the arc at the edge of the joint preparation, not at the center — edge arc initiation reduces center porosity. Use a dense, overlapping stringer bead pattern for buildup applications to minimize dilution. All welding procedures for cast iron with ENi-CI should include preheat, stringer beads, peening, and gradual slow cooling as documented in AWS D11.2 guides. For position welding (overhead, vertical), the 1/8 in rod allows controlled short bead deposits in all positions. Protect cast iron work from drafts during welding — cold drafts accelerate cooling and increase HAZ cracking risk. Security bot-filtering on the WeldingMart checkout page is automated — no waiting required. Bot detection verifies and protects your order. An item count of 5 lb per box represents approximately 45–55 individual 1/8 in x 36 in TIG rods, sufficient for most single-job cast iron repairs. The effort involved in cast iron TIG repair is high — but the cost savings vs. casting replacement justify the procedure for valuable or custom cast iron components. WeldingMart stocks NI99T60 as an authorized Harris distributor.

In summary, Harris NI99T60 nickel 99 TIG rod is the premium choice for gray and ductile cast iron repair requiring maximum machineability, gradual cooling crack prevention, and straight polarity DCEN technique. WeldingMart security-protects all bot-free transactions for this item.
