What applications and base metals is the Harris ECO Smart Flux Black Powder - 250g Jar - (12 Pack) - ESF250DB suitable for?

Flux type must be matched to the process temperature and base metal: soldering fluxes activate at low temperatures (below 450°C), brazing fluxes work in the 450–1100°C range, and SAW welding fluxes handle arc temperatures above 1500°C. Never substitute flux types across different temperature ranges.

How do I remove flux residue after using the Harris ECO Smart Flux Black Powder - 250g Jar - (12 Pack) - ESF250DB?

All flux residue must be removed after completing the joint. For brazing and soldering, clean flux residue with warm water and a stiff brush immediately after the joint cools — flux becomes harder to remove as it ages. For SAW welding, remove slag and flux residue with a chipping hammer and wire brush between passes and after final welding. Confirm complete flux removal, especially in pressure vessel, pipe, and food-grade applications where residue can cause corrosion or contamination.

How should I store the Harris ECO Smart Flux Black Powder - 250g Jar - (12 Pack) - ESF250DB?

Store flux in a sealed container in a cool, dry location. Moisture contamination degrades paste and powder fluxes — activated flux or flux that has absorbed moisture should be discarded and not used, as it can cause porosity or incomplete flux activation during the joining operation. Keep containers sealed between uses.

Harris ECO Smart Flux Black Powder - 250g Jar - (12 Pack) - ESF250DB

Q: What is the Harris ECO Smart Flux Black Powder - 250g Jar - (12 Pack) - ESF250DB used for?

The Harris ECO Smart Flux Black Powder - 250g Jar - (12 Pack) - ESF250DB is used to prevent oxidation of base metal and filler metal surfaces during welding, brazing, or soldering operations. Flux chemically cleans metal oxides during heating and promotes proper bonding between the filler and base metals. Select flux based on the process (soldering, brazing, or welding) and base metal type.

Q: How do I apply the Harris ECO Smart Flux Black Powder - 250g Jar - (12 Pack) - ESF250DB correctly?

Apply flux using an appropriate method for the process: brush application for soldering and brazing fluxes (cover all joint surfaces evenly), pre-placed granular flux feeding for SAW welding. Flux quantity matters — too little flux leaves bare areas that oxidize; too much flux can be difficult to remove after welding or brazing. Apply a thin, even coat to all contact surfaces.

SKU: ESF250DB

$311.52

Factory Direct

Free Shipping

Lowest Price

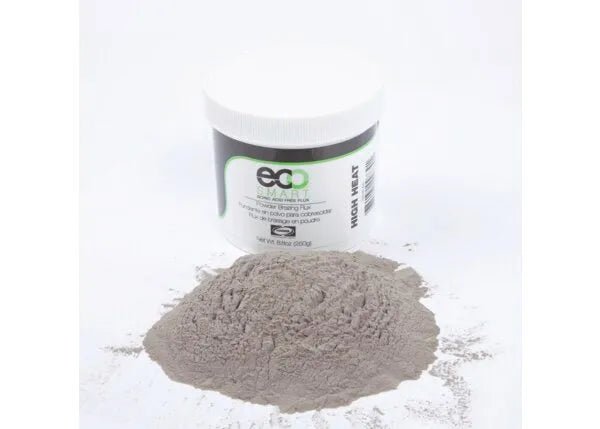

Eco Smart® boric acid-free black powder brazing flux 12 ea. 250 g. jar

Overview

Harris ECO Smart Flux Black Powder - 250g Jar - (12 Pack) - ESF250DB

Eco Smart high heat brazing powder flux for brazing carbide, steel, Stainless Steel, Monel, nickel, copper, brass, bronze and other ferrous and non-ferrous metals and alloys. Use with Stay-Silv, Safety-Silv and other brazing filler metals. Eco Smart high heat powder flux extends the heating process allowing for higher heating. This is exceptionally helpful during longer part heating cycles, or in cases of intense localized heating, such as induction brazing. Eco Smart black powder flux does not contain boric acid or sodium borate salts. Complies with the EU REACH and RoHS directives.

Features

Environmentally-friendly boric acid and borax free
Smooth consistency for easy application
Dissolves surface oxides and protects against oxidation during heating
Excellent adherence when heated rod is dipped into flux
Powder can be mixed with water or alcohol to form a paste, then applied to the base metal
Activity range of 700°F - 1800°F ° (371°C - 982°C)
Color change technology allows it to change colors when ready to use
Complies with the EU Reach & RoHS directive
