What diameter is the Harris ER80S-B2 Low Alloy Steel TIG Rod 5/32 x 36 in. x 10 lb. box - 80SB270 available in, and how do I choose the right size?

The Harris ER80S-B2 Low Alloy Steel TIG Rod 5/32 x 36 in. x 10 lb. box - 80SB270 is available in 5/32 diameter. Rod diameter selection depends on the base metal thickness and the amperage being used: 1/16 in (1.6 mm) rods suit light gauge up to 3/16 in at 60–130A; 3/32 in (2.4 mm) rods cover 3/16 in–1/2 in material; 1/8 in (3.2 mm) rods are used for heavier sections at 130–250A+. As a general rule, rod diameter should be close to or slightly smaller than base metal thickness.

What shielding gas should I use with the Harris ER80S-B2 Low Alloy Steel TIG Rod 5/32 x 36 in. x 10 lb. box - 80SB270?

TIG welding shielding gas selection: use pure argon (99.995% purity) for most TIG applications including steel, stainless, aluminum, and titanium. Helium additions (25–75% He/Ar mix) increase heat input and travel speed for heavy section work and aluminum welding where higher deposition is needed. Never use CO2 or mixed gases designed for MIG welding in TIG torches.

What is the AWS classification of the Harris ER80S-B2 Low Alloy Steel TIG Rod 5/32 x 36 in. x 10 lb. box - 80SB270?

TIG filler rods carry an AWS classification (e.g., ER70S-2 for mild steel, ER308L for 304 stainless, ER4043 for aluminum) that specifies the chemical composition and mechanical properties of the deposited weld metal. Always verify the AWS class when writing or qualifying a Welding Procedure Specification (WPS) for code work.

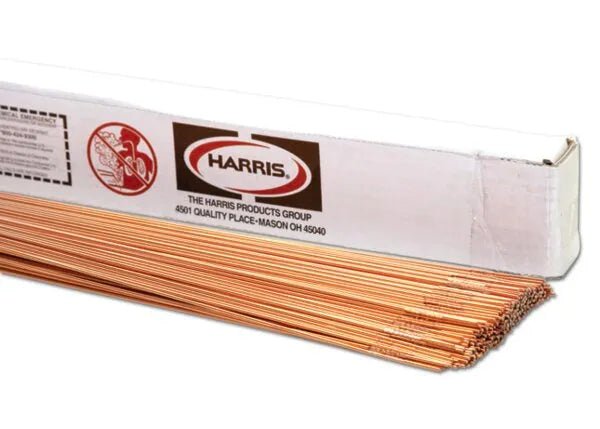

Harris ER80S TIG Rod 5/32" – 10 lb

Q: What is the Harris ER80S-B2 Low Alloy Steel TIG Rod 5/32 x 36 in. x 10 lb. box - 80SB270 used for?

TIG (GTAW) filler rods are used in the gas tungsten arc welding process, where the welder manually feeds the rod into the weld pool while maintaining the arc with the torch. TIG welding produces the highest quality, lowest spatter welds and is the process of choice for precision work on stainless, aluminum, titanium, and exotic alloys.

SKU: 80SB270

$134.15

Factory Direct

Free Shipping over $250

Lowest Price

ER80SB-2 low alloy steel TIG (GTAW) welding alloy 5/32 x 36 in. x 10 lb. box

Overview

Harris ER80S-B2 Low Alloy Steel TIG Rod 5/32 x 36 in. x 10 lb. box - 80SB270

ER80S-B2 low alloy steel TIG (GTAW) welding alloy is used to weld 1/2 chromium-1/2 molybdenum, 1 chromium-1/2 molybdenum and 1-1/4 chromium-1/2 molybdenum steels for elevated temperatures and corrosive service. Also, used for welding dissimilar combinations of chromium-molybdenum and carbon steels. Use with a pre-heat and interpass temperature of 275◦F (135◦C) minimum. Conforms to AWS 5.28.

Features

General-purpose TIG (GTAW) low alloy welding rod for chromium-molybdenum steels
This alloy welds steels for elevated temperatures and corrosive service
Welds alloys like 1/2% chromium-1/2% molybdenum, 1% chromium-1/2% molybdenum and 11/4% chromium-1/2% molybdenum steels
Welding dissimilar combinations of chromium-molybdenum and carbon steels
Use with pre-heat and interpass temperature of 275◦F min. (135◦C min.)
Marked with model number on each end for easy identification after use
Conforms to AISI/AWS A5.28 & ASME SFA 5.28 ER80S-B2

Reviews

Q&A

Product Overview

Harris ER80S-B2 Low Alloy Steel TIG Rod 5/32 x 36 in. x 10 lb. box - 80SB270

Features

General-purpose TIG (GTAW) low alloy welding rod for chromium-molybdenum steels
This alloy welds steels for elevated temperatures and corrosive service
Welds alloys like 1/2% chromium-1/2% molybdenum, 1% chromium-1/2% molybdenum and 11/4% chromium-1/2% molybdenum steels
Welding dissimilar combinations of chromium-molybdenum and carbon steels
Use with pre-heat and interpass temperature of 275◦F min. (135◦C min.)
Marked with model number on each end for easy identification after use
Conforms to AISI/AWS A5.28 & ASME SFA 5.28 ER80S-B2
