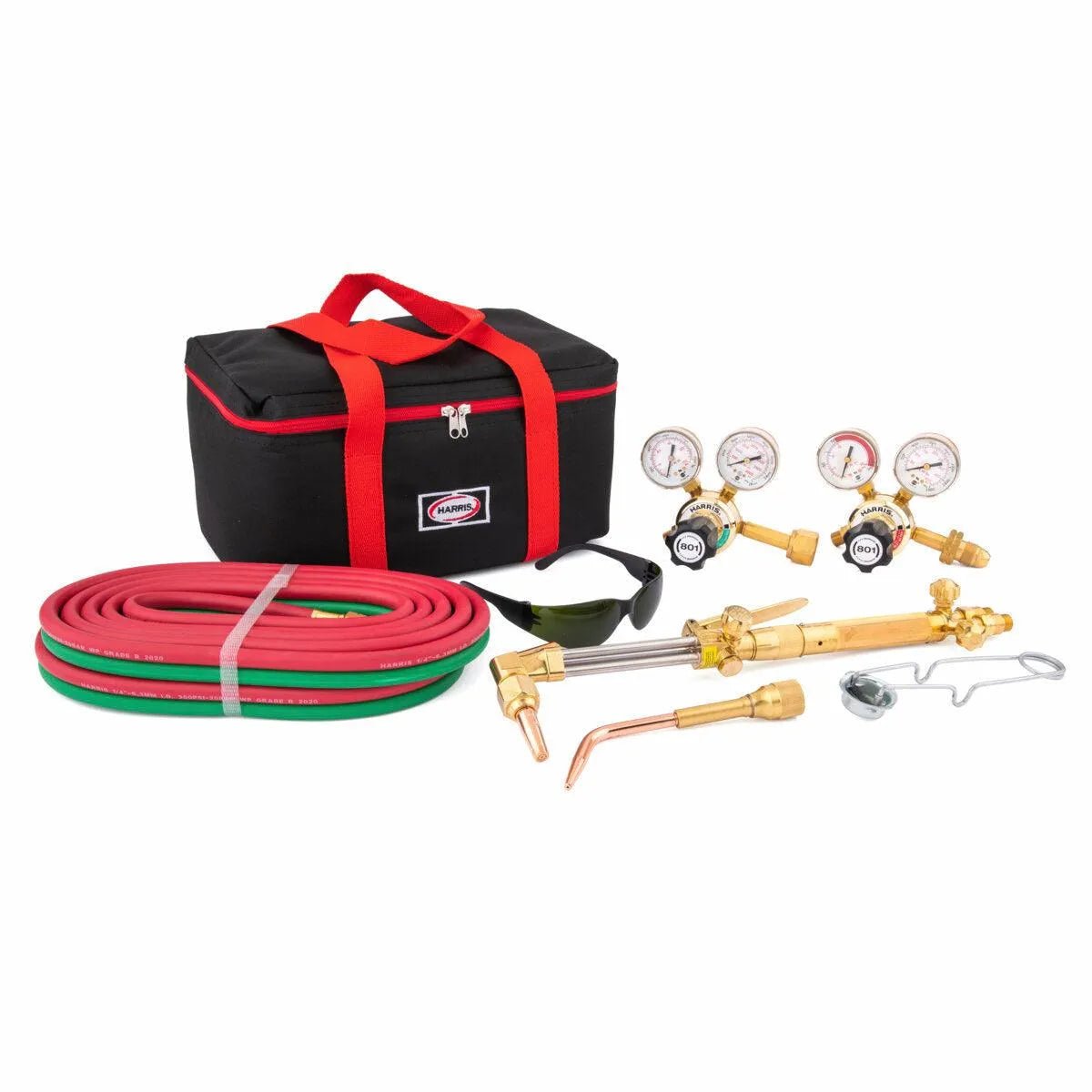

Harris Model 801 Deluxe Ironworker Acetylene Torch Kit contains quality equipment needed for cutting, brazing, and welding using oxygen and acetylene gases. The outfit can cut up 5 in. (127mm) and is supplied with a tip to cut up to 1 in. (25.4mm) plate. The kit can braze up to 3 in. (76.2) diameter copper tube and is supplied with a size tip for brazing copper up to 1 ½ in. (38.1mm) tube. The kit is capable of welding up to ½ in. (12.7mm) and is supplied with a tip that welds up to 1/16 in. (1.6mm) plate.
- Medium Duty 3-tube design outfit to be used with oxygen and acetylene gases.
- Regulator oxygen and acetylene Harris Model 801 with easy-to-read dual scale 2 in. gauges, ergonomic plastic adjusting knob, neoprene diaphragms and our distinguished internal encapsulated seat filter. Oxygen Regulator that delivers up to 145 psi and acetylene Regulator delivers up to 15 psi.
- Torch handle Harris Model 85 that silver-brazed connections and is equipped with external replaceable FlashGuard check valves.
- Cutting attachment Harris Model 72-3 features brazed triangular stainless-steel tubes, fold-forward cutting lever, ease-on cutting valve and solid brass head.
- Consumables included - 6290-1AC cutting tip, D85 mixer and 23A90-5 welding tip.
- Accessories included - Shade 5 safety glasses (ANSI Z87.1 CE Weld);Handheld ignitor;1/4 in. x 20 ft. twin R-grade hose and Harris black and red insulated tool kit bag
| Cutting Attachment Model Number | 72-3 |
| Cutting Capacity | Up to 5 in. (127.0mm) plate with optional tip(s) Optional tip(s) sold separately |
| Cutting Tip Style - Acetylene-h3 (Size) | 6290-1AC |
| Duty | Medium |
| Equipped With | FlashGuard check valves - handle |
| Fuel Gas Regulator Model Number | 801-15-510 |
| Gas / Gas Service | Acetylene |
| Gauges | 2 in. Steel dual scale (psi/kPa) - Regulators |
| Hose Connection/Fittings | BxB |
| Hose Size | 1/4 in. x 20 ft. |
| Hose Type | Twin Oxygen-Acetylene R-grade |
| Included Accessories | Shade 5 safety glasses (ANSI Z87.1 CE Weld) Handheld ignitor 1/4 in. x 20 ft. twin BxB R-grade hoseHarris black and red insulated tool kit bag |
| Mixer Model Number | D-85 |
| Mixer Type | E-Equal or positive pressure |
| Oxygen Regulator Model Number | 801-145-540 |
| Recommended Items/Accessories | Standard Tip Cleaner - Model C-9 - PN 9000156 Two-Piece Tip Cleaner - Model E-9 - PN 9000160 |
| Seat | PTFE Teflon - Regulators |
| Tank Connection | CGA 540 CGA 510 |
| Torch Handle Model Number | 85 |
| Welding Capacity | Up to 1/2 in. (12.7mm) plate with optional tip(s) Optional tips sold separately |
| Welding/Brazing Tip Model Number - Acetylene |
23A90-5 |
