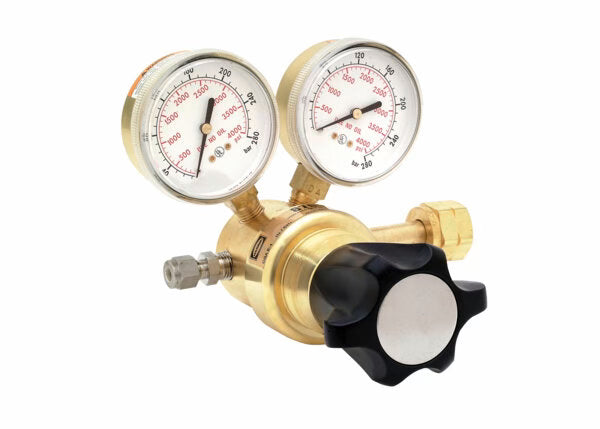

Harris HP8700-1500-540 Single Stage Oxygen Regulator - 3200306
Model HP8700 is a Single Stage brass Oxygen Regulator that is designed to deliver high outlet pressures from ultra high-pressure Cylinders . The Model HP8700 is suitable for high pressure testing charging accumulators and pressurizing struts for hydraulic systems and aircraft/heavy equipment.. This model features a brass body, bonnet and dual scale gauges, ergonomic plastic knob for improved grip and ease of adjustment of the delivery pressure, and one-piece encapsulated seat that is design with internal 10 micron filter and CTFE (Kel F) seat. It has a 1/4 in. NPT outlet with Stainless Steel 1/4 in. tube fitting.
Features
- Operates on high pressure Cylinders up to 3000 PSIG
- Brass Barstock body and bonnet and brass nozzle for longer service life
- Ergonomic ABS plastic knob for improved grip and precise adjustment
- 2.5 in. Brass Barstock dual scale easy-to-read gauges (psi/bar)
- One-piece encapsulated seat design with 10 micron sintered internal filter to protect the PCTFE (Kel-F™) seat from particulate contamination
- Neoprene diaphragm for greater sensitivity and improved performance
- 1/4 in. NPT outlet with Stainless Steel 1/4 in. tube fitting
- Suitable for high pressure testing, charging accumulators and pressurizing aircraft struts
- Conforms to CGA E4 standard for gas pressure Regulators
Specifications
Equipment
| Adjusting Knob | ABS black plastic |
| Body | Brass barstock |
| Bonnet | Brass barstock |
| Capacity | Ultra high pressure |
| Certification | CGA E-4 |
| Cv | 0.08 |
| Delivery Pressure Gauge (PSIG) | 3000 |
| Delivery Pressure Range (PSIG) | 0 - 1500 |
| Diaphragm | Neoprene |
| Equipped With | Inlet surge guard |
| Filter | Nickel-plated sintered bronze - 10 micron |
| Gas / Gas Service | Oxygen |
| Gauges | 2.5 in. Brass dual scale (psi/bar) |
| Inlet Connection | CGA 540 |
| Maximum Inlet Pressure (PSIG) | 3000 |
| Nozzle | Brass |
| Outlet Connection | 1/4 in. NPT outlet with 1/4 in. stainless steel tube fitting |
| Pressure Regulation PSIG/100 PSIG | 3.3 |
| Recommended Items/Accessories | Panel Mounting Nut - PN 9100887 |
| Seat | PCTFE (Kel-F®) |
| Seat Return Spring | PH 17-7 Stainless steel |
| Supply Pressure Gauge (PSIG) | 4000 |
Warranty
| Warranty | 1 Year |
