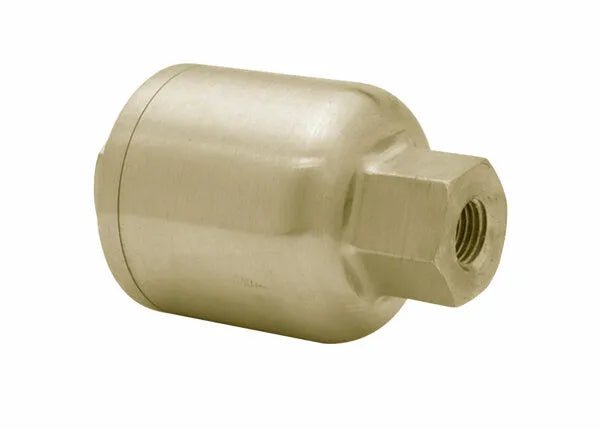

Harris Inline Flashback Arrestor - 4300378
This inline flashback arrestor prevents flashback in oxy-fuel gas systems. An internal check valve prevents backflow while a sintered metal filter absorbs the heat and extinguishes the flame from a flashback. Maximum flow rate is 50 SCFH.
Features
- Brass housing construction for durability
- Maximum inlet pressure 362 PSIG/25 BAR
- Maximum ambient/working temperature is 158◦F
- Can be mounted in any position
- 1/4” FNPT x 1/4” NPT (F) inlet and outlet connections
