Harris 3000163 - 301-Ar60-580 General-Purpose Single Stage Flowgauge Regulator

SKU: 3000163
$99.07 $136.77
Factory Direct
Free Shipping over $250
Lowest Price
Harris - Model 301-Ar60-580 compact general purpose medium-to-heavy duty single stage flowgauge regulator for use with Argon (Ar)
Certification: CGA E-4;UL® listed
Overview

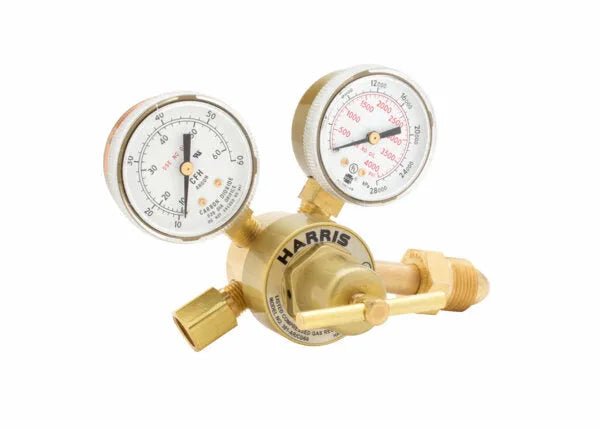

Harris Model 301-Ar60-580 General-Purpose Single Stage Flowgauge Regulator - 3000163

Harris Model 301 Single Stage flowgauge Regulator is designed to be compact, lightweight and rugged. It is time proven to provide accurate flow-control up to 60 SCFH using the most common welding shielding gases. Harris Model 301 features a brass body, 2 in. steel dual scale gauges, one-piece encapsulated seat design with internal filter and PTFE Teflon seat and 5/8 in. - 18 in. (F) outlet connection. This Harris Model is UL listed.

Features
  • Compact flowgauge Regulator
  • Lightweight, yet rugged
  • Provides accurate pressure regulation to 60 SCFH
  • Brass body and brass-painted zinc bonnet for longer service life
  • Easy-to-operate brass T-screw adjusting handle
  • 2 in. Steel dual scale easy-to-read gauges
  • One-piece encapsulated seat design with internal filter to protect the PTFE Teflon seat from particulate contamination
  • Neoprene diaphragm for improved pressure control
  • UL listed
Specifications
FeatureValue
Gas / GasService Argon
Adjusting Screw Brass T-screw
Body Brass
Bonnet Brass-painted zinc
Diaphragm Neoprene
Duty Medium to heavy
Flow Capacity (SCFH) 60
Gauges 2 in. Gold painted steel dual scale (psi/kPa)
Inlet Connection CGA 580
Maximum Inlet Pressure (PSIG) 3000
Outlet Connection 5/8 in. - 18 (F)
Seat PTFE Teflon®
Supply Pressure Gauge (PSIG) 4000
Typical Application Gas-shielded welding; Other industrial applications
Includes
  • Harris - Model 301-Ar60-580 General-Purpose Single-Stage Flowgauge Regulator
