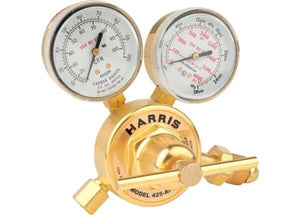

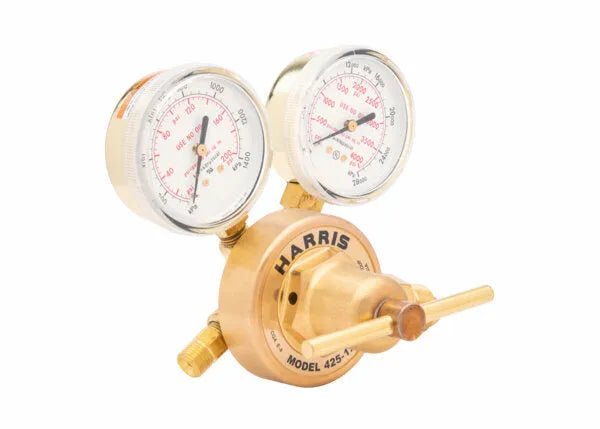

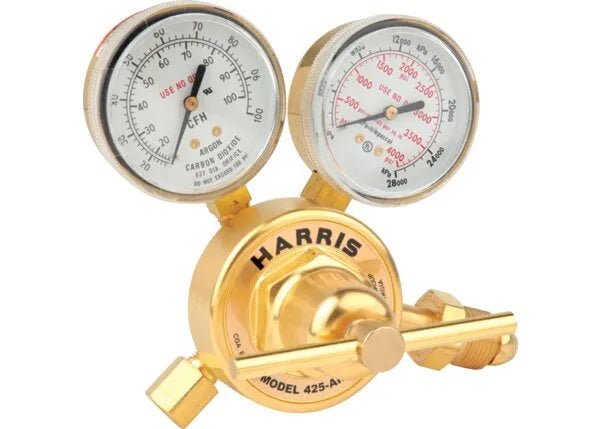

Harris Model 425-CD100-320 General-Purpose Single Stage Flowgauge Regulator - 3000776
Model 425-CD flowgauge Regulator is based upon our premium Model 425 Single Stage pressure Regulator It is a rugged, long lasting performer capable of 100 SCFH flow and it features an internal, self-seating high pressure safety valve.
Features
- Single Stage flowgauge Regulator for use with carbon dioxide
- Designed for rugged, long-lasting performance
- Easy-to-operate brass T-screw adjusting handle
- Brass body and bonnet for longer service life
- Neoprene diaphragm for improved pressure control
- 2.5 in. Brass dual scale easy-to-read gauges
- One-piece encapsulated seat design with internal filter to protect the PTFE Teflon seat from particulate contamination
- Flow capacity of 100 SCFH
- UL listed
- 5/8 in. - 18 RH (F) outlet connection
