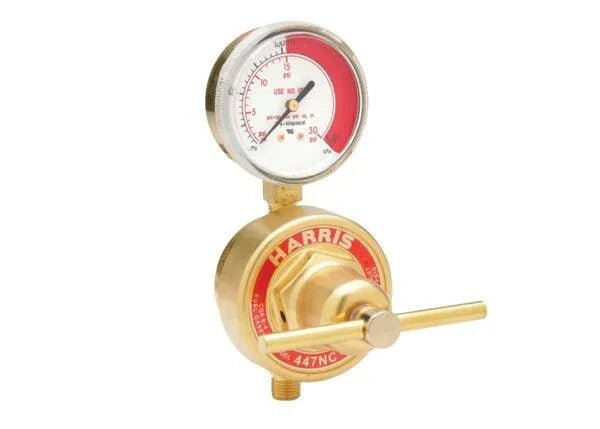

Harris Model 447-FG-1/4 in. Pipeline Single Stage Flowgauge Regulator - 4000565
Model 447 flowgauge Regulator was designed to deliver high gas flows from low pressure piping systems. The 447 features a sold brass body and bonnet. For installations requiring back entry equipment.
Features
- Heavy duty back entry flowgauge Regulator
- Designed to deliver high gas flows from low pressure piping systems
- Easy-to-operate brass T-screw
- Forged brass body and bonnet for longer service life
- Rubber diaphragm for better pressure control
- 2.5 in. Brass-plated steel dual scale (psi/kPa) easy-to-read gauges
- One-piece encapsulated seat design with internal filter to protect the PTFE Teflon seat from particulate contamination
- 1/4 in. NPT (F) inlet connection
- Ideal for installations requiring back entry equipment
- Conforms to CGA E-4
4000565
