Harris Model 6290-00000VVC Machine Cutting Tip - 1501310

SKU: 1501310
$17.77
Factory Direct
Free Shipping over $250
Lowest Price

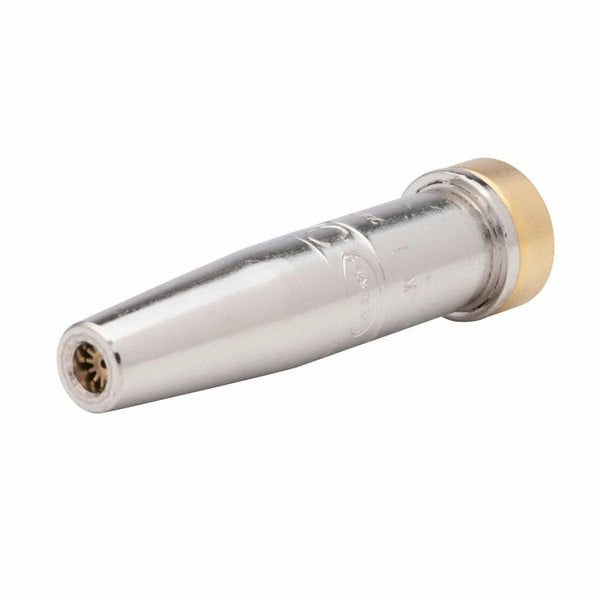

Harris - Model 6290-00000VVC premium machine cutting tip for use with propane and natural gas

Overview
Harris Model 6290-VVC high-speed propane/natural gas machine cutting tip with an electroless nickel-plated shell (.088 cup depth).This tip maximizes kerf while increasing cutting speeds to reduce heat input. The tip produces high-quality cuts thus reducing afterwork. The 6290-VVC tip is used with low-cost fuel gases.

Features
  • Two-piece machine cutting tip
  • Electroless nickel-plated outer shell and brass internal shell construction (.088 cup depth)
  • Premium high-speed
  • Minimizes kerf
  • Increased cutting speed reduces heat input
  • High quality cuts, reduce afterwork
  • For use with low cost alternate fuel gases - propane/natural gas. NOT FOR USE WITH ACETYLENE
  • Typical applications include hand cutting, machine cutting, fabrication, shipbuilding, etc.
  • Marked with Harris logo and tip size for easy identification
  • One year warranty
Specifications
FeatureValue
Gas / GasService NaturalGas; Propane
Compatible Torch Harris - Model Number 98-6E; 98-6F
Construction Two-piece - Electroless nickel-plated (outer shell) and Brass (inner shell)
Cutting Oxygen Consumption SCFH 15
Cutting Oxygen PSIG 40
Cutting Speed (IPM) 20
Kerf (Approx.) in. 0.05
Low Preheat Oxygen Consumption SCFH 20 - 30
Material Thickness 3/16 in. (4.76mm)
Natural Gas Consumption SCFH 15
Preheat Fuel Gas PSIG 4 oz. - 2 lbs.
Preheat Oxygen PSIG - High Pressure 15
Preheat Oxygen PSIG - Low Pressure 8
Propane Consumption SCFH 6
Style Machine cutting
Tip Size / Number 0
Typical Application Machine cutting; Demolition; Fabrication; Maintenance; Shipbuilding
Includes
  • Harris - Model 6290-00000VVC premium machine cutting tip for use with propane/natural gas
