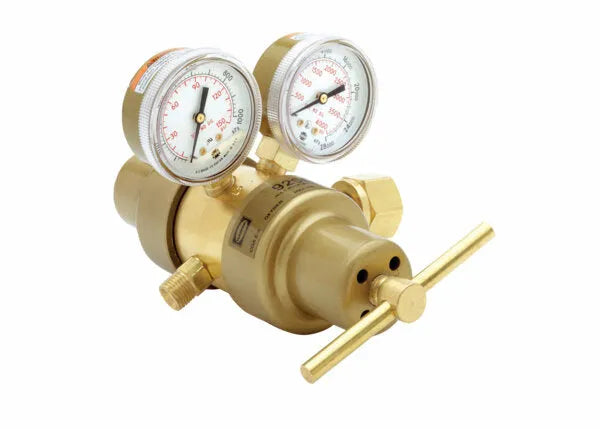

Harris Model 9296SS-50-590 General-Purpose SS Diaphragm Two Stage Pressure Regulator - 3302697
Model 9296SS is a general purpose, heavy duty, Regulator recommended for applications where outgassing and/or permeation are concerns. It is also designed for applications where a constant delivery pressure is required over a wide range of inlet pressures. This model features a Stainless Steel diaphragm, brass body, 2 in. brass dual scale gauges, T-screw adjustment and one-piece encapsulated seat design with internal filter and PTFE Teflon seat.
Features
- Stainless Steel diaphragms prevent outgassing and/or permeation from occurring.
- Designed for applications where a constant delivery pressure is required
- Easy-to-operate brass T-screw adjusting handle
- Brass body and painted brass bonnet for longer service life
- Stainless Steel diaphragms to prevent out-gassing and/or permeation
- 2 in. Steel dual scale easy-to-read gauges
- One-piece encapsulated seat design with internal filter to protect the PTFE Teflon seat from particulate contamination
- Maximum inlet pressure is 3000 PSIG
- Equipped with a tamper-proof, self-reseating, high pressure internal safety relief valve
- Conforms to CGA E-4 standard
Specifications
Equipment
| Adjusting Screw | Brass T-screw |
| Body | Brass |
| Bonnet | Gold painted brass |
| Certification | CGA E-4 |
| Cv | 0.15 |
| Delivery Pressure Gauge (PSIG) | 60 |
| Delivery Pressure Range (PSIG) | 0 - 50 |
| Diaphragm | Stainless Steel |
| Duty | Heavy |
| Gas / Gas Service | Air (Industrial) |
| Gauges | 2 in. Gold painted steel dual scale (psi/kPa) |
| Inlet Connection | CGA 590 |
| Maximum Inlet Pressure (PSIG) | 3000 |
| Outlet Connection | 1/4 in. NPT (M) |
| Pressure Regulation PSIG/100 PSIG | 0.04 |
| Seat | PTFE Teflon |
| Supply Pressure Gauge (PSIG) | 4000 |
Warranty
| Warranty | 7 Years |
