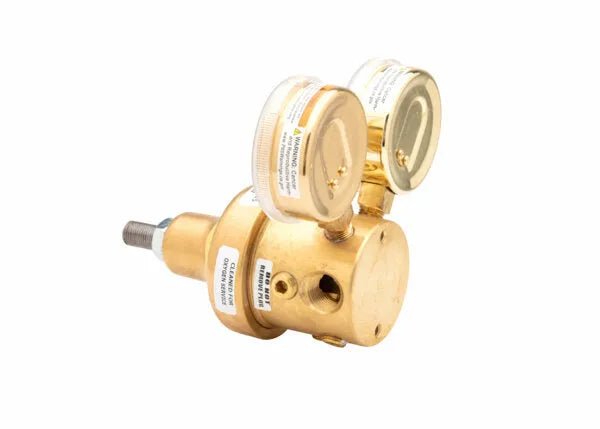

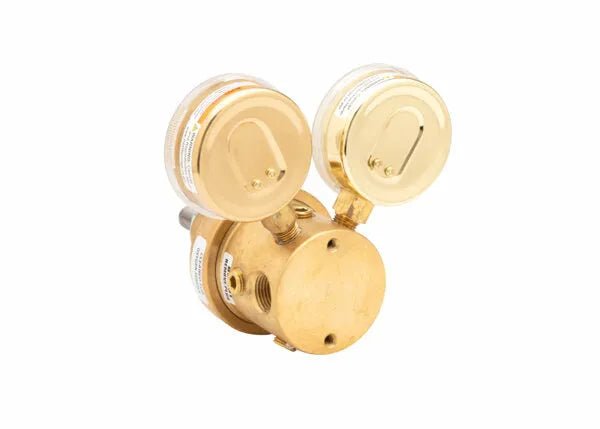

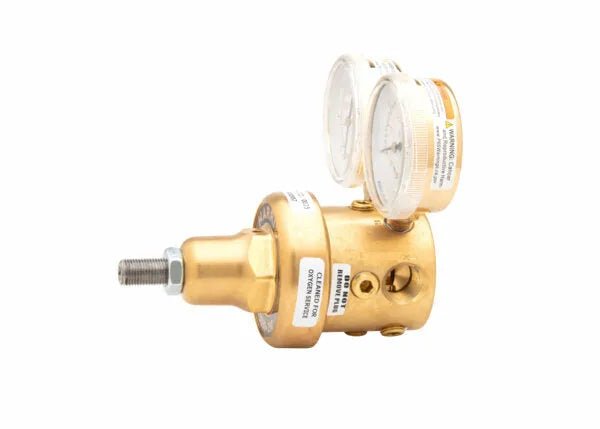

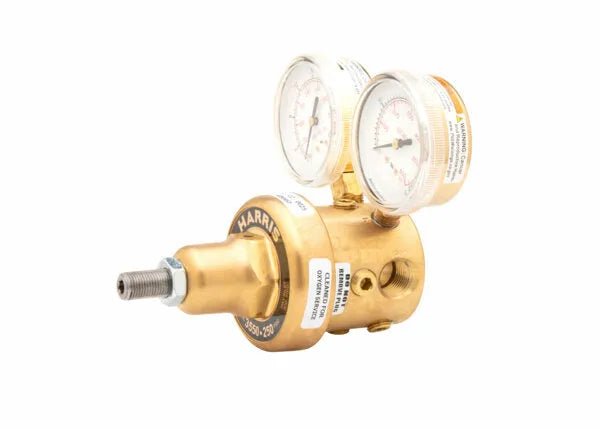

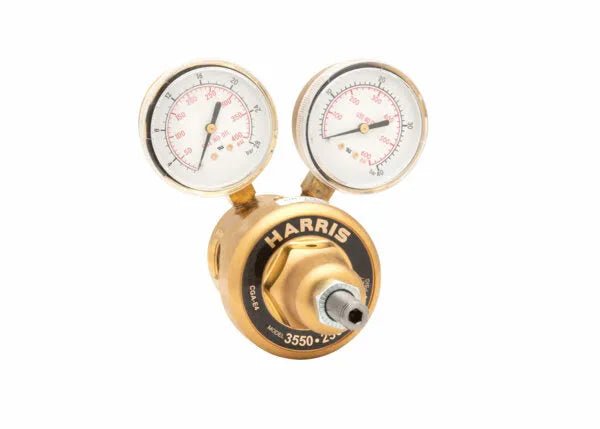

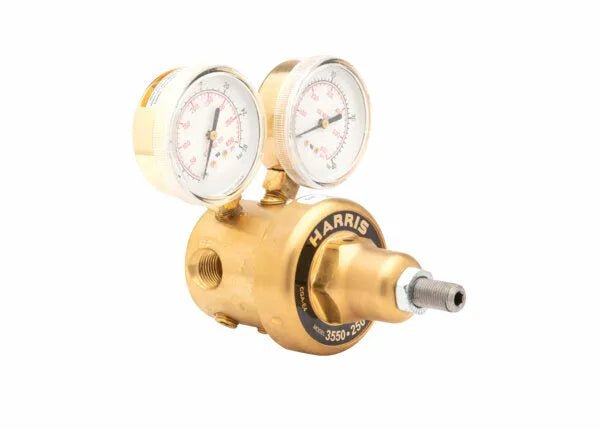

Harris Model HP3550-250P High Purity Brass Regulator - 4000957
Model HP3550 is a Brass Barstock pipeline Regulator with Stainless Steel diaphragm, Kel-F seat, 4 ports and 1/2 in. NPT (F) inlet and outlet connections. The outlet pressure is preset to 250 PSIG.
Features
- 316 Stainless Steel diaphragm eliminates contamination from diffusion or outgassing
- One-piece encapsulated seat design with 10 micron sintered internal filter to protect the Kel-F seat from particulate contamination
- Equipped with 4 ports (2 low and 2 high)
- Brass Barstock body, bonnet and fittings
- 2.5 in. Brass dual scale easy-to-read gauges (psi/bar)
- Pre-set to 250 PSIG outlet pressure
- 500 PSIG maximum inlet pressure
- Use with any non-corrosive gas, except acetylene
- Panel mountable
