Harris  |  SKU: 3100222

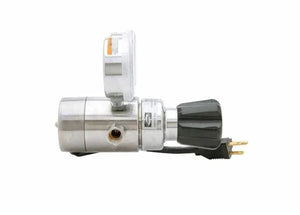

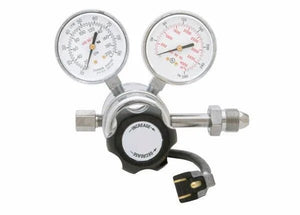

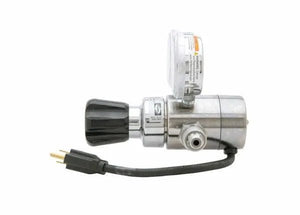

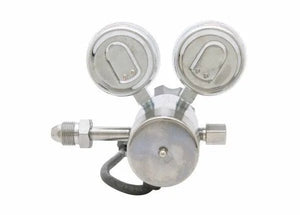

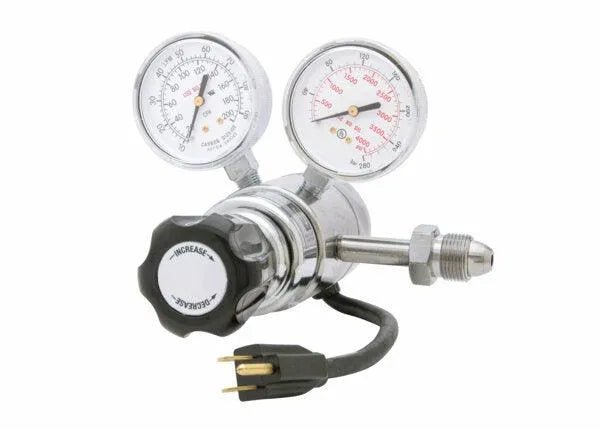

Harris Model HP715-100SCFH-580 120 volt Flowgauge Regulator - 3100222

$992.89
Model HP715-100SCFH-580 120 volts electrically heated flowgauge regulator for use with Argon (Ar), Carbon Dioxide (CO2) & mixes

Financing / Leasing Available

Welding Equipment And Industrial Supplies Financing

Welding Mart has partnered with Clicklease to provide industry-leading welding equipment for a low monthly payment customized to fit your budget. Our welder financing services allow professionals to outfit their shop with the right welding machines and systems to serve customers. Whether you need a new MIG welder, a rental TIG welder, a virtual welding training simulator or something else, rent-to-own welders from leading brands such as Lincoln Electric and Miller are a great solution.

It's never been easier to afford the equipment you need to grow your business.
Apply in just four minutes and get real approval in seconds - there's no hard credit pull and no documents are needed.

Benefits of Lease-to-Own Welders

A welding machine rental is great for short-term and long-term business needs. Welder leases and rentals let companies stay on top of the latest welding technology without draining their operating budget by paying upfront, in full for new machines. At the end of the lease period, you can either purchase the welding equipment outright or return it to WeldingMart. You can also buy the equipment anytime within the first year of your lease - see below for more details.

Welder rentals can also have tax benefits. In many cases, the payments you make when you lease or finance a welding machine for business or educational purposes are tax-deductible. This frees up even more resources to get the equipment, supplies and personnel that welding businesses need.



More Information

Welding machine financing is available 24/7 so you can apply whenever it's convenient for you. It will only take about four minutes of your time.

Once approved, you'll have the option to select the term that best fits your budget and, if approved for more than you request, our calculator makes it easy to see how your payments change for any additional items you add to your lease. eDocs are available immediately, allowing you to order your new gear within minutes.

Have additional questions? Contact us to speak with a member of the WeldingMart team.

DETAILS

Harris Model HP715-100SCFH-580 120 volt Flowgauge Regulator - 3100222

Model HP715 is an electrically heated Two Stage flowgauge Regulator designed to resist high-flow carbon dioxide (CO2) Regulator freeze-up. It is perfectly suited for gas shielded welding, Ph control, blanketing and purging. The Regulator features chrome-plated brass body, body and 2.5" dual scale gauges, large ergonomic ABS plastic adjusting knob, Stainless Steel diaphragm and one-piece encapsulated seat design with internal filter and PTFE Teflon seat. The heater is 200 watts, 120 volts. The outlet connection is 5/8" - 18" RH (F). Electrical components are UL listed.

Features

  • Electrically heated flowgauge Regulator for use with CO2 and Ar/CO2 mixes
  • Prevents dry ice from developing in gas systems
  • Provides up to 100 SCFH flow at 100% duty cycle
  • Thermostatically controlled temperature
  • Equipped with a 200 watt, 120 volt electric heater
  • Chrome-plated brass body and bonnet for longer service life
  • 2.5" chrome-plated brass dual scale easy-to-read gauges
  • One-piece encapsulated seat design with internal filter and PTFE Teflon seat to protect from particulate contamination
  • Features a Stainless Steel diaphragm to eliminate the absorption and release (or off-gas) contaminants.

3100222

Harris Model HP715-100SCFH-580 120 volt Flowgauge Regulator - 3100222

Model HP715 is an electrically heated Two Stage flowgauge Regulator designed to resist high-flow carbon dioxide (CO2) Regulator freeze-up. It is perfectly suited for gas shielded welding, Ph control, blanketing and purging. The Regulator features chrome-plated brass body, body and 2.5" dual scale gauges, large ergonomic ABS plastic adjusting knob, Stainless Steel diaphragm and one-piece encapsulated seat design with internal filter and PTFE Teflon seat. The heater is 200 watts, 120 volts. The outlet connection is 5/8" - 18" RH (F). Electrical components are UL listed.

Features

  • Electrically heated flowgauge Regulator for use with CO2 and Ar/CO2 mixes
  • Prevents dry ice from developing in gas systems
  • Provides up to 100 SCFH flow at 100% duty cycle
  • Thermostatically controlled temperature
  • Equipped with a 200 watt, 120 volt electric heater
  • Chrome-plated brass body and bonnet for longer service life
  • 2.5" chrome-plated brass dual scale easy-to-read gauges
  • One-piece encapsulated seat design with internal filter and PTFE Teflon seat to protect from particulate contamination
  • Features a Stainless Steel diaphragm to eliminate the absorption and release (or off-gas) contaminants.

3100222
