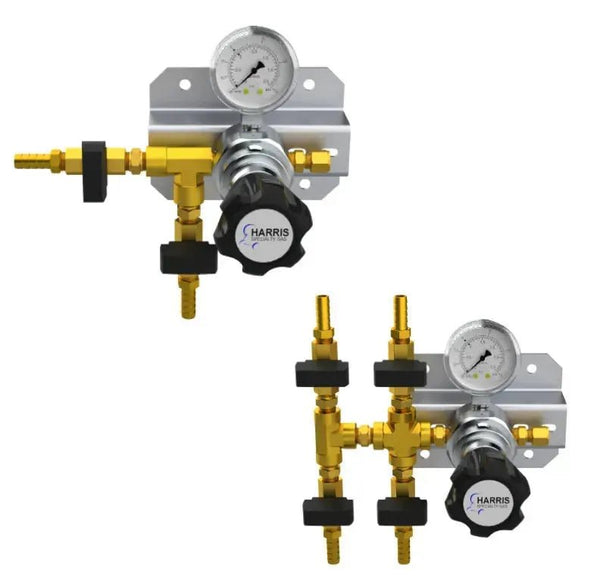

Harris Model HP723C-015 6 Valve Incubator Regulator - 4001402
This line Regulator is specifically designed to serve multiple incubators from
a single house line providing delivery pressures up to 15 psig. The Model 723C
Regulator will control the pressure from the source to the incubators. The ball
valves provide positive shut off while giving a visual indication that the valve
is open or closed.
The Regulator comes mounted to a bracket to allow for easy wall mounting.
The hose barbs allow for easy installation to the incubators.
FEATURES
• 316L Stainless Steel diaphragm eliminates contamination
from diffusion or outgassing
• One piece encapsulated seat design includes 10 micron
sintered filter to protect the seat from particle contamination
• 2” dual scale brass gauge (psi/bar)
• Regulator designed to 1 x 10-9 cc/sec inboard helium leak
rate to maintain gas purity levels
SPECIFICATIONS
• Maximum rated inlet pressure: 3, 000 psig
• Outlet pressure ranges: 15 psig
• Flow capacity: Cv = 0.08
• Ambient operating temperature: -20°f to +140° f
• Designed leak rate: 1 x 10-9 cc/sec
• Weight: 2.68 Lbs
• Ports (4): ¼” FNPT
• Outlet: ¼” NPT male
• Decay inlet characteristic: 1.8/100 psig
