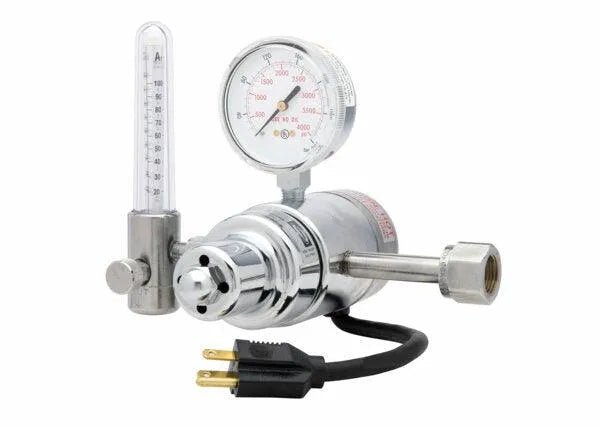

Harris Model HP725-100SCFH-320 120 volt Flowmeter Regulator - 3100402
Model HP725 is a Two Stage electrically heated flowmeter Regulator designed to resist carbon dioxide (CO2) Regulator freeze-up. It is well suited for shielding arc welding, chemical blanketing, purging and Ph control. The flowmeter includes a sensitive needle valve for fingertip control and durable, easy-to-read, flow tube and cover. The Regulator has a electroless nickel-plated brass body and 2.5 in. dual scale gauge, Stainless Steel diaphragm and one-piece encapsulated seat design with internal filter and PTFE Teflon seat. The heater is 200 watts, 120 volts. The outlet connection is 5/8 in. - 18 (F). Electrical components are UL listed.
Features
- Electrically heated flowmeter Regulator for use with carbon dioxide and argon-carbon dioxide mixes
- More accurate than ball and tube flowmeters
- Provides up to 100 SCFH flow at 100% duty cycle
- Thermostatically controlled temperature
- Equipped with a 200 watt, 120 volt UL listed electric heater
- Electroless nickel-plated brass body and bonnet for longer service life
- 2.5 in. electroless nickel-plated brass dual scale easy-to-read gauge
- One-piece encapsulated seat design with internal filter and PTFE Teflon seat to protect from particulate contamination
- Features a Stainless Steel diaphragm to eliminate the absorption and release of off-gas contaminants
- Durable cover and easy-to-read flow tube
3100402
