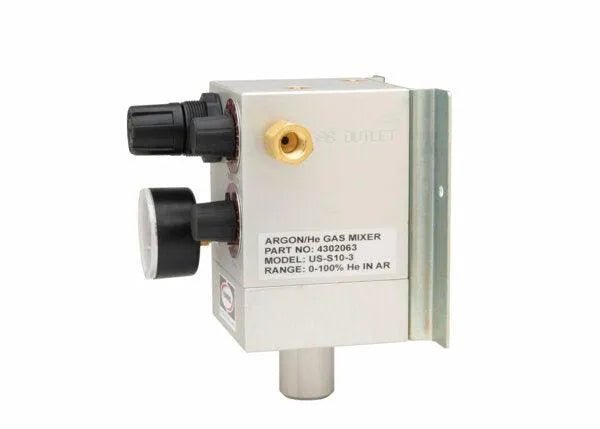

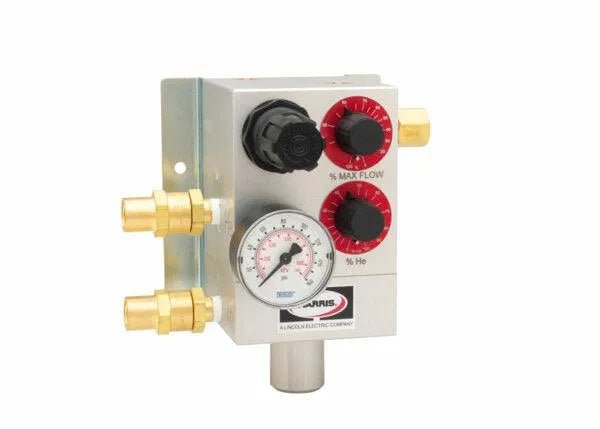

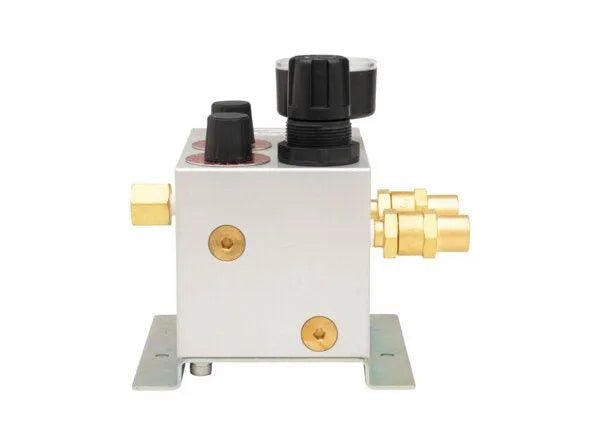

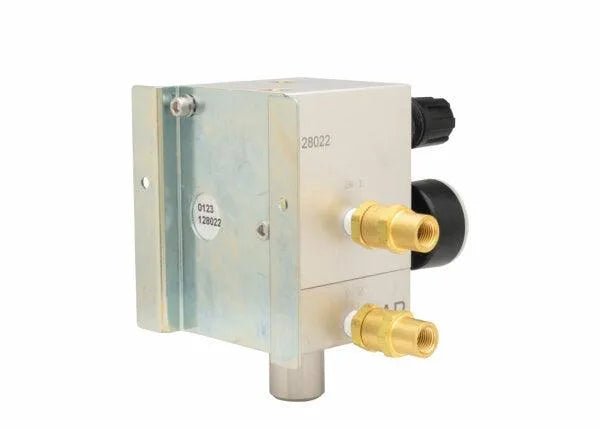

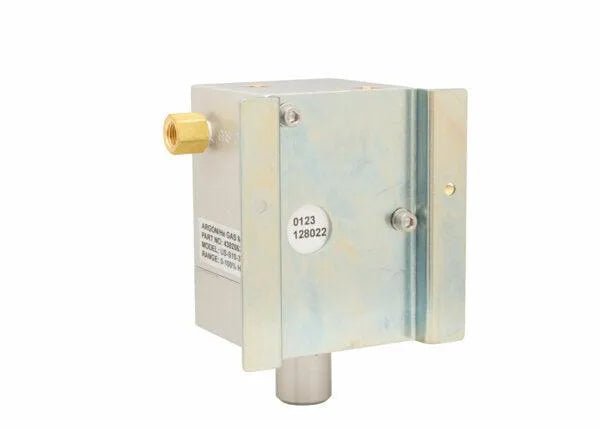

Harris Model US-S10-3 Two-Gas Blender - 4302063
Model US-S10 is a small, compact, wall mounted variable-ratio gas blender designed to create a mix of blended gases from pure gas Cylinders. The gases are mixed in proportions defined by the user with the turn of a single knob. The mixed gas is then distributed downstream through the pipeline system. The US-S10 requires no receiver tank and no electricity to operate.
Features
- Variable ratios up to 100%
- Maximum flow rate up to 500 SCFH
- Accuracy +/- 2%
- 0 - 100% Helium in Argon
- No receiver tank required
- Wall mountable
- One year manufacturer’s warranty
Specifications
Flow Capacity (SCFH) | 500 |
Gas / Gas Service | Argon Helium |
Inlet Connection | 1/4 in. NPT (F) |
Maximum Flow Capacity (SCFH) | 500 |
Mixing Range | 0 - 100% Helium in Argon |
Mounting Location | Wall |
Outlet Connection | 1/4 in. NPT (F) |
Recommended Items/Accessories | Adaptor for inert hose B-fitting (CGA 032) - 5/8 in. - 18 RH (F) x 1/4 in. MNPT - PN 9000371 CO2/)2 Analyzer - PN 4302076 |
Tank Connection | No receiver tank required |
Typical Application | Welding processes Packaging Food service |
