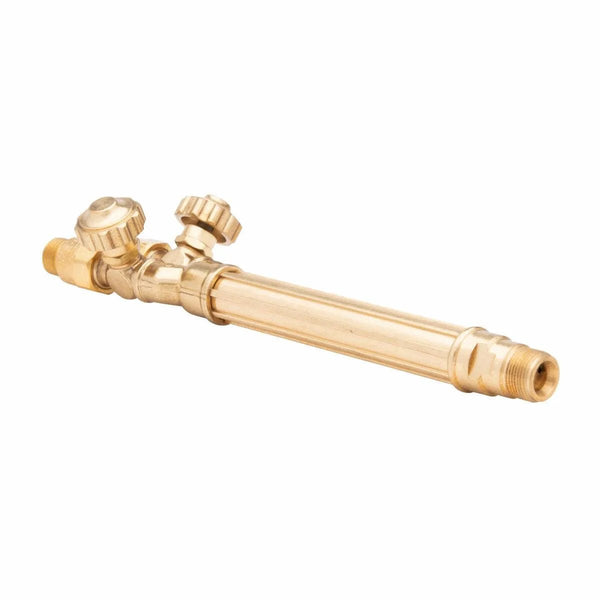

Harris Model Vh30 V-Series Combination Torch Handle with Check Valves - 1400424
Harris Model Vh30 V-Series is a medium duty combination torch handle for welding, brazing, cutting and heating. It can be used with all fuel gases. Harris Model Vh30 features tube-within-a-tube construction with threaded connections and O-ring seals. The Vh30 is equipped with easy-to-replace FlashGuard high capacity check valves. Cuts up to 5 in. (127.0mm) plate and welds up to 1/2 in. (12.7mm) plate.
Features
- Medium duty combination torch handle for use with all fuel gases
- Silver-brazed twin inner tube construction for strength, safety and durability while still being lightweight
- Tube-within-a-tube construction for optimum flow performance while providing maximum leak integrity
- O-ring sealed for greater strength and higher capacity
- Threaded connections
- Marked with Harris logo and tip size for easy identification
- Handle is 8-3/4 in. (222.2mm) in length
- Equipped with FlashGuard replaceable check valves
- Cuts up to 5 in. (127.0mm) plate; Welds up to 1/2 in. (12.7mm) plate
| Compatible Cutting Attachment Model Number | Vh33 |
| Compatible Cutting Tip Model Number - Acetylene-h3 (Size) | V3-101 |
| Compatible Cutting Tip Model Number - Alternate Fuel (Size) | 3-GPN 3-GPP |
| Compatible Heating Tip Model Number - Acetylene-h3 (Size) | J-63 (1, 2) 1390-HA |
| Compatible Heating Tip Model Number - Alternate Fuel (Size) | 1390 (B&H) |
| Compatible Mixer Model Number | V-W-1 |
| Compatible Tip Tube Model Number | 8593 |
| Compatible Welding/Brazing Tip Style - Acetylene-h3 (Size) | 23A90 (0-10) 1390 (0-10) |
| Compatible Welding/Brazing Tip Style - Alternate Fuel (Size) | 1390-N (4-10) |
| Construction | Tube-within-a-tube |
| Cutting Capacity | Up to 5 in. (127.0mm) plate |
| Duty | Medium |
| Equipped With | FlashGuard Check Valves |
| Gas / Gas Service | Acetylene Hydrogen Natural Gas Methane Propane Propylene |
| Recommended Items/Accessories | FlashGuard Check Valve Torch Type - Model 88-6CVT (R&L) - PN 4300390 |
| Torch Length | 8-3/4 in. (222.2 mm) |
| Typical Application | Welding Brazing Cutting Heating |
| Welding Capacity | Up to 1⁄2 in. (12.7mm) plate |
