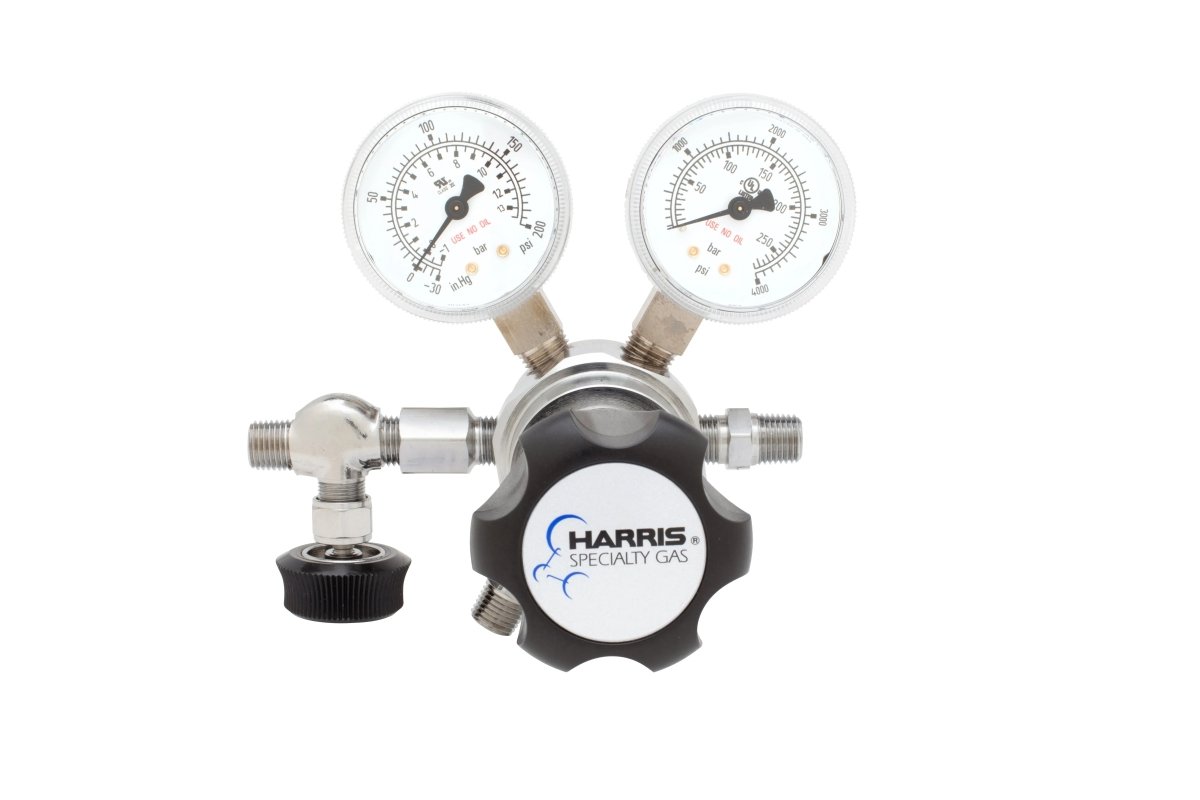

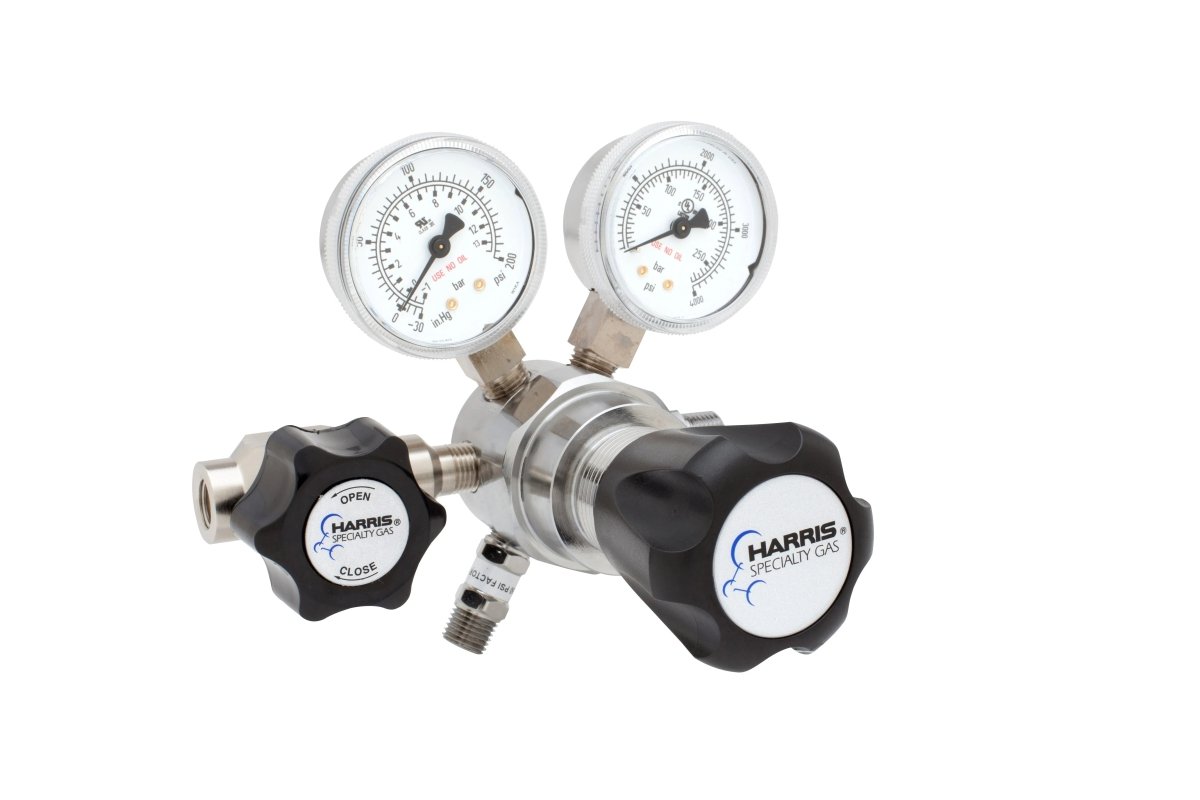

Harris - Two Stage Ultra High Purity Brass Barstock Regulator Model 721C-015-590-D - 721C015590D

SKU: 721C015590D
$526.08

Financing Options

•
Loading Affirm Estimate…
•
Lease-To-Own From $24/mo — 24-Mo Term, No Hard Credit Check
Factory Direct
Free Shipping
Lowest Price
These single-stage, ultra high purity regulators are recommended for non-corrosive analytical and process applications where precise flow control is not critical. A specially designed, convoluted, stainless steel diaphram provides good regulating performance and maxium purity integrity. These rgulators are capable of withstanding an internal vacuum and can be provided with a diffusion-resistant valve.
Overview
Harris Two Stage Ultra High Purity Brass Barstock Regulator Model 721C-015-590-D - 721C015590D
Features
  • 1-11/16"- 316L Stainless Steel diaphragm eliminates contamination from diffusion or outgassing
  • One-piece encapsulated seat design with 10 micron sintered internal filter to protect the PTFE Teflon seat from particulate contamination
  • External relief valve is standard
  • Brass Barstock body, bonnet and fittings
  • 2” dual scale Brass Barstock gauges (psi/bar)
  • Designed to 1 x 10-9 cc/sec inboard helium leak rate to maintain gas purity levels
  • Maximum inlet pressure 3000 PSIG, except for models with CGA 300 and 510 that are equipped with a 400 PSIG inlet gauge
  • Front or back panel mountable
  • Conforms to CGA E-4 standard for gas pressure Regulators

A materials list for a product shows components and their materials, such as brass, stainless steel, PTFE Teflon, bronze, and ABS plastic. Text on the right says SHIPS 24 TO 48hr in large, bold letters.Table showing HP 721 ordering information, including delivery pressure ranges, CGA/inlet fittings, accessories, and options such as relief valve and leak detector for different HP 721 models.
