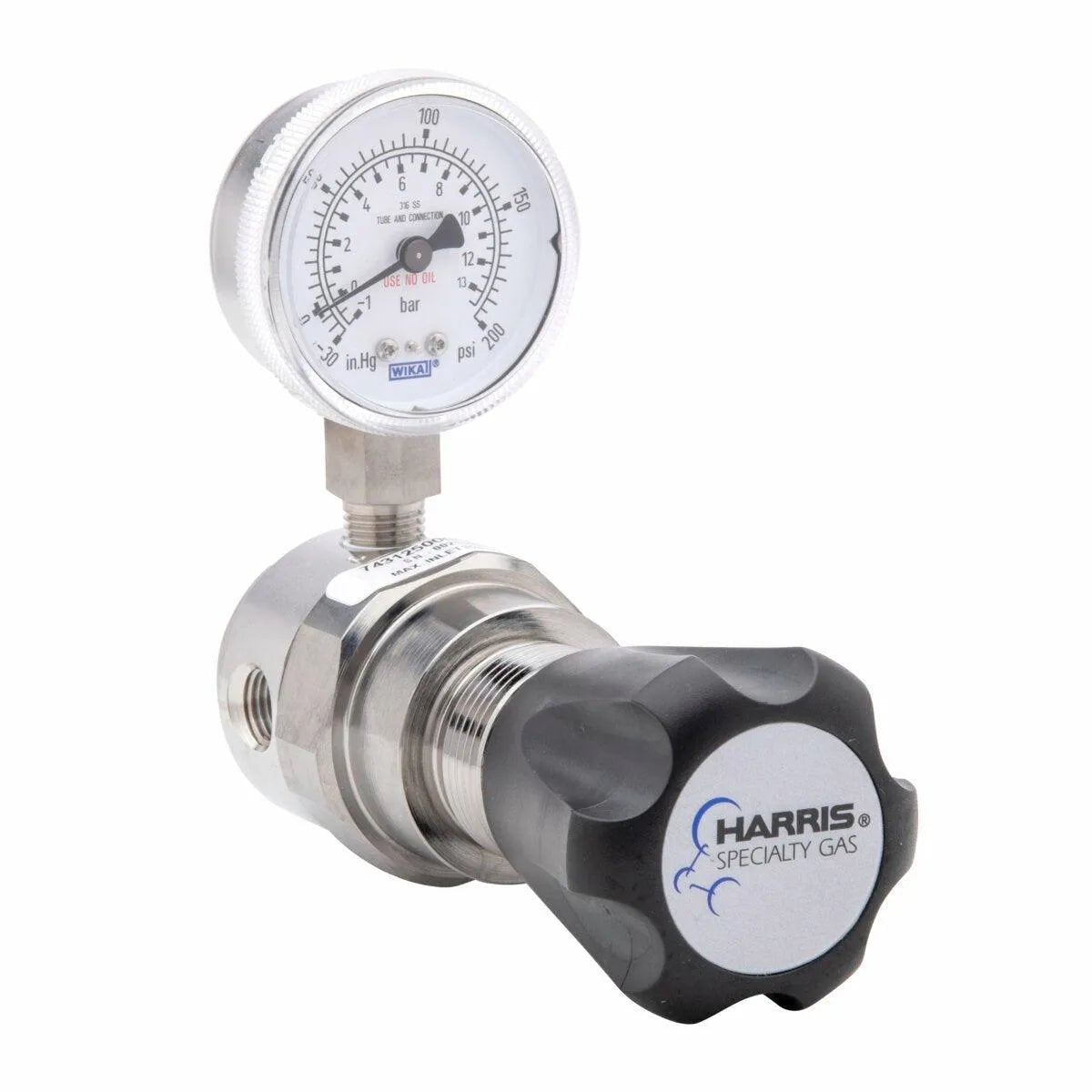

Harris Model HP743-125-000-C Ultra High Purity Stainless Steel Barstock Regulator - 743125000C
Model HP743 is a Single Stage, Stainless Steel barstock line Regulator suitable for ultra High Purity gas, corrosive gas applications, research sample systems gases, process analyzer gases, gas chromatography, EPA protocol gases, laser gas systems and emission monitoring systems.Features
• 1-11/16 in. 316L Stainless Steel diaphragm eliminates contamination from diffusion or outgassing• One-piece encapsulated seat design with 10 micron sintered internal filter to protect the PTFE Teflon seat from particulate contamination
• Stainless Steel body and fittings and nickel-plated brass bonnet
• 2 in. Stainless Steel dual scale gauge (psi/bar)
• Designed to 1 x 10-9 cc/sec inboard helium leak rate to maintain gas purity levels
• Maximum inlet 3000 PSIG
• Front or back panel mountable
• Conforms to CGA E-4 standard for gas pressure Regulators
•
•
