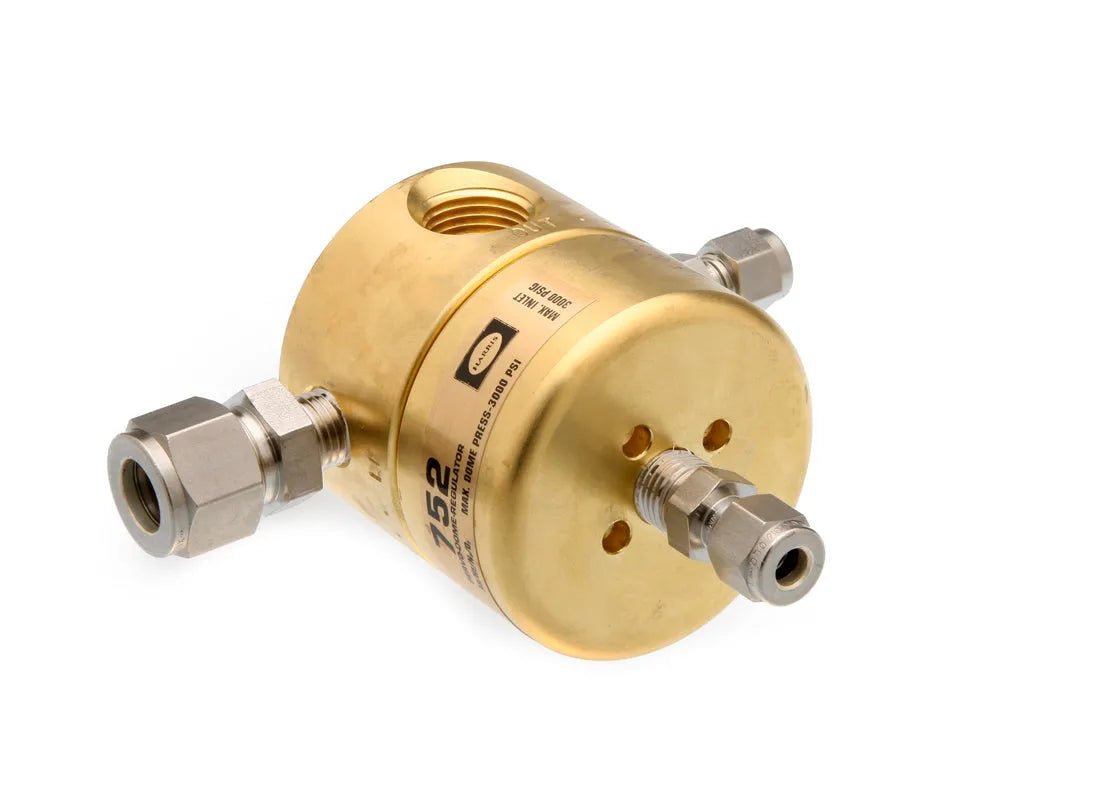

Harris Model 752 Servo Dome Remote - 3000871
The Model HP 752 series Regulator is a remote high pressure,
high flow Regulator system. The key to the performance of this Regulator is the servo-dome load technology. The servo-dome load feature allows the Regulator system to supply andcontrol high flow rates with straight line pressure regulation.
The HP 752 is suitable for:
• Laser assist gases
• Pressure transfer
• Blanketing & high flow manifold delivery systems
Note: HP 752 requires pilot Regulator (included) for proper
function (see below).
FEATURES
• 0- 500 PSIG delivery pressure
• Up to 3000 PSIG inlet pressure
• One piece encapsulated seat design with 10-micron
filtration
• 1/2” diameter sensing line for precise servo flow control
• 1/4” diameter dome pressure line
• Front panel mount bonnet on remote pilot Regulator
• Model 752 inlet & outlet: 1/2” FNPT
• Remote pilot Regulator can be mounted up to 100 feet
away
