What is the correct soldering technique for the Harris Select Lead-Free Solid Wire Solder - 0.118 in (3.0 mm) - 25 lb Box - 331754?

Soldering technique for copper plumbing: clean pipe and fitting surfaces with sandpaper or steel wool until bright, apply paste flux, assemble the joint, and heat the fitting (not the solder) with a torch until solder flows freely when touched to the joint. Remove heat as soon as the solder flows — overheating burns the flux and can cause a dry joint or oxidized solder. Allow to cool for 30 seconds before wiping and moving the assembly.

1 7

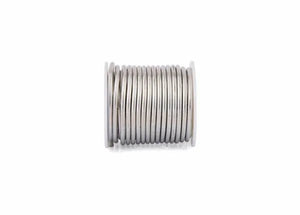

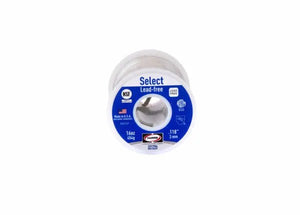

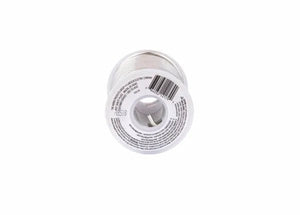

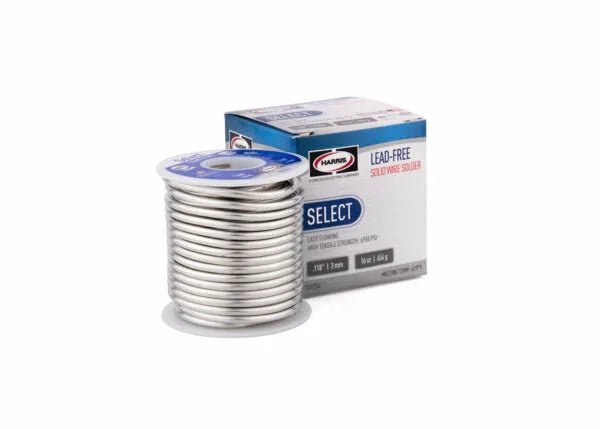

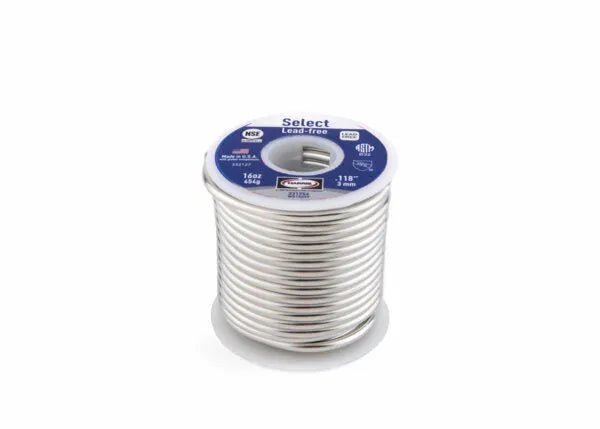

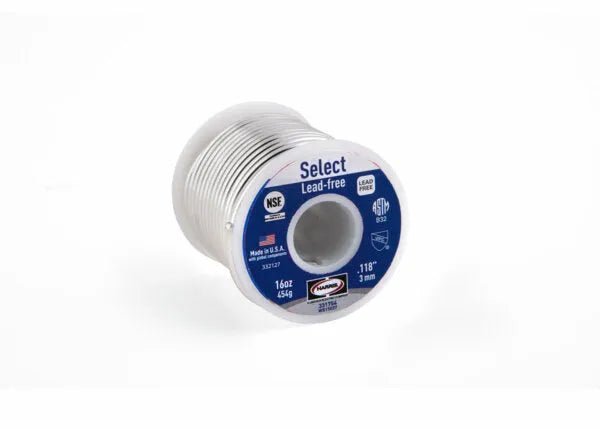

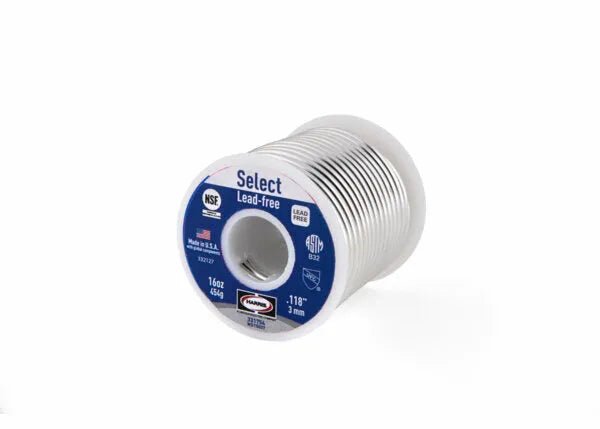

Harris Select Lead-Free Solid Wire Solder - 0.118 in (3.0 mm) - 25 lb Box - 331754

Q: What is the Harris Select Lead-Free Solid Wire Solder - 0.118 in (3.0 mm) - 25 lb Box - 331754 used for?

Lead-free solder is used for joining metal components at temperatures below 840°F (450°C) in plumbing, electronics, and light metal fabrication. Lead-free solders are required by NSF/ANSI 61 for potable water plumbing systems and are mandatory in many states — never use lead-containing solder on drinking water supply lines.

Q: Does the Harris Select Lead-Free Solid Wire Solder - 0.118 in (3.0 mm) - 25 lb Box - 331754 require separate flux?

A separate flux must be applied to clean joint surfaces before soldering with wire or bar solder. Harris Bridgit Flux or a similar non-corrosive paste flux is recommended for plumbing copper joints. Apply flux to all contact surfaces, assemble the joint, then heat the base metal and touch solder to the joint — the solder flows by capillary action into the flux-wetted gap. Remove flux residue after the joint cools.

Q: What diameter and quantity is the Harris Select Lead-Free Solid Wire Solder - 0.118 in (3.0 mm) - 25 lb Box - 331754 available in?

Wire solder is sold in various diameters and spool weights. For residential plumbing, 1/8 in (3.2 mm) or 3/32 in (2.4 mm) wire on a 1 lb spool covers most common repairs. For production plumbing work, larger spools (5 lb, 25 lb) minimize changeover and reduce per-foot cost.

Q: How should I store the Harris Select Lead-Free Solid Wire Solder - 0.118 in (3.0 mm) - 25 lb Box - 331754?

Store solder in a cool, dry location away from moisture and chemical fumes. Lead-free solders containing silver (Sn-Ag, Sn-Ag-Cu) are more brittle than traditional tin-lead solders and should be handled with care to avoid cracking the wire on the spool. Flux-core solder should be stored away from extreme heat to prevent flux degradation inside the core.

SKU: 331754

$1,630.00

Factory Direct

Free Shipping

Lowest Price

Select lead-free solid wire solder 0.118 in. x 1 lb. spool x 25 lb. per box

Overview

Select lead-free solid wire plumbing solder achieves the highest product standards. It meets or exceeds the requirements for lead-free plumbing solder set forth in the Federal Safe Drinking Water Act. It is 100% environmentally safe with no antimony or nickel. Complies with the EU Reach & RoHS directive.

Features

Low melting temperature of 410◦F (210◦C)
Formulated for plumbing and other potable water system applications
Melting range is ideal for filling and "capping" solder connections
Lead and antimony free
Recommend Harris Water Soluble Plumbing Flux (ASTM B813) for copper and brass plumbing applications
Meets ASTM B-32 specifications
Meets NSF/ANSI/CAN Standard 61 for drinking water system components - health effects
Meets NSF/ANSI/CAN Standard 372 for drinking water system components - lead content & US Safe Drinking Water Act amendments
Complies with the EU Reach & RoHS directive

Reviews

Q&A

Product Overview

Features

Low melting temperature of 410◦F (210◦C)
Formulated for plumbing and other potable water system applications
Melting range is ideal for filling and "capping" solder connections
Lead and antimony free
Recommend Harris Water Soluble Plumbing Flux (ASTM B813) for copper and brass plumbing applications
Meets ASTM B-32 specifications
Meets NSF/ANSI/CAN Standard 61 for drinking water system components - health effects
Meets NSF/ANSI/CAN Standard 372 for drinking water system components - lead content & US Safe Drinking Water Act amendments
Complies with the EU Reach & RoHS directive
