Product Overview

What Is Harris Silicon Bronze MIG Wire 0.025 in (ERCuSi-A)?

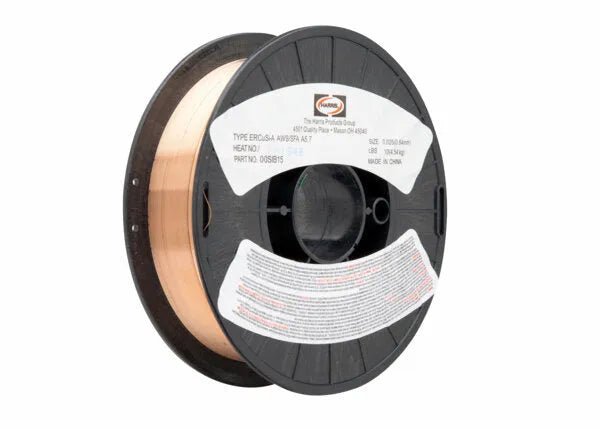

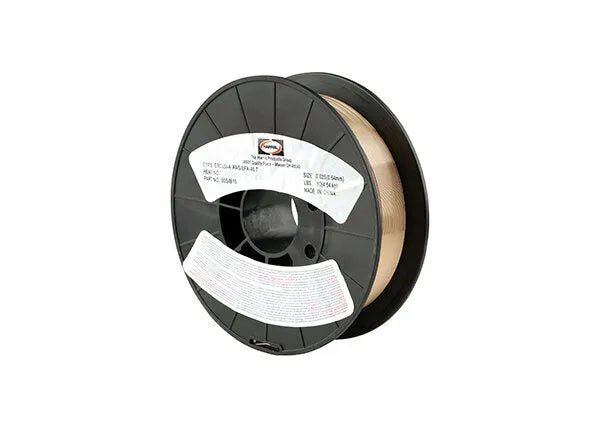

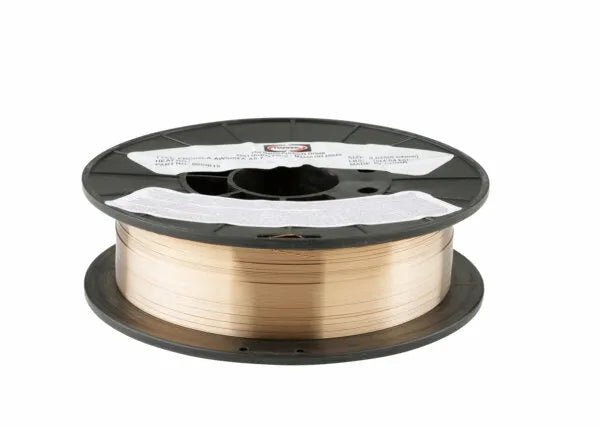

The Harris 00SIB15 is an ERCuSi-A classified silicon bronze MIG GMAW wire in 0.025 in (0.64 mm) diameter on a 10 lb spool. This ultra-fine diameter makes it the premier choice for mig brazing silicon bronze on the thinnest gauge coated sheet steels, auto-body panels (18–24 gauge), and precision copper base metals where the 0.035 in standard size risks burn-through. Harris Products Group, a Lincoln Electric company, manufactures this silicon bronze alloy to AWS A5.7 ERCuSi-A specifications. WeldingMart is an authorized Harris distributor.

Silicon bronze mig wire in 0.025 in diameter operates at the lowest wire feed speeds and amperage settings in the ERCuSi-A product line, enabling the surgeon-precise heat control demanded by automotive body shops, custom fabricators, and HVAC technicians joining thin coated sheet steels with virtually no distortion or coating burn-back.

Specifications & AWS Classification

Best Applications for 0.025 in Silicon Bronze MIG Wire

• Ultra-thin auto body panels: Braze welding 20–24 gauge galvanized, electrogalvanized, and aluminized steel body panels where 0.035 in wire would produce excessive heat.
• Precision copper braze welding: Joining thin copper base metals for HVAC evaporator coils, refrigeration tube assemblies, and electrical bus bar connections.
• Restoration fabrication: Classic vehicle body repair using silicon bronze mig for maximum control on thin, irregular panels without burn-through.
• Coated sheet steels and dissimilar metals: All the same applications as 0.035 in ERCuSi-A, but with finer heat control for the thinnest gauges.
• Precision dissimilar metal assemblies: Joining thin copper to steel in electronics enclosures, RF shielding, and grounding assemblies where bead consistency is critical.

How to Use — Settings, Technique, and Process Parameters

At 0.025 in diameter, this wire runs at the lowest heat settings in the silicon bronze product family. Use a short contact-tip-to-work distance (1/4–3/8 in) and a smooth, consistent travel speed to achieve even wetting. Start with wire feed speed at the low end of the range on scrap material before moving to production panels. With 100% argon and minimal CO₂, spatter is extremely low — a key advantage for auto body work where post-weld grinding must be minimized.

Storage & Handling

Store in sealed packaging in a dry location at 40–120 °F. Use Teflon-lined MIG gun cables for 0.025 in wire — fine-diameter soft wire is particularly prone to birdnesting in steel-lined guns. Drive rolls must be sized for 0.025 in wire (not 0.030 or 0.035 in grooves, which will crush the soft wire).

Compatible Machines & Shielding Gas

Harris 00SIB15 requires a MIG machine capable of stable short-circuit output at 50–110 A. Light-duty machines including the Lincoln Power MIG 180C and MIG-capable multi-process units are appropriate. Use a Teflon-lined torch specifically set up for 0.025 in wire to prevent birdnesting. For comparison in the Harris silicon bronze line, see Harris Silicon Bronze 0.035 in 2 lb and Harris Silicon Bronze 0.045 in 30 lb. Browse all welding wire.

FAQs — Harris Silicon Bronze MIG Wire 0.025 in

Why use 0.025 in silicon bronze wire instead of 0.035 in?

The 0.025 in diameter operates at lower amperage (50–110 A vs 80–150 A for 0.035 in), reducing heat input. On 20–24 gauge sheet metal, this prevents burn-through and minimizes panel warpage. The finer wire also produces a narrower bead for precision work on tight joints and complex panel shapes.

Can I use 0.025 in silicon bronze in a standard MIG gun?

Yes, but you must use the correct liner and drive rolls. Fit the gun with a Teflon (PTFE) liner sized for 0.025 in wire and install U-groove drive rolls sized 0.023/0.025 in. Using a 0.030/0.035 in groove will crush the soft copper-silicon wire, causing feeding problems and wire shavings in the liner.

What shielding gas for 0.025 in silicon bronze?

100% Argon is required. No CO₂ additions. The very low amperage and heat input of 0.025 in ERCuSi-A makes the weld pool especially sensitive to oxidation from CO₂ — use pure argon for clean, porosity-free welds.

Is silicon bronze MIG wire appropriate for automotive structural welds?

Silicon bronze braze-welds are appropriate for cosmetic and non-structural automotive body work. For structural panels, subframes, and safety-critical components, refer to the OEM repair procedure — some require specific steel MIG wire and procedures. Silicon bronze is typically approved for Class B (non-structural) automotive body panel repairs.

Can I weld copper to galvanized steel with 0.025 in silicon bronze MIG wire?

Yes. The low heat input of fine-diameter silicon bronze MIG wire makes it ideal for joining copper to galvanized steel on HVAC and electrical assemblies. Maintain ventilation — zinc vaporizes at the weld zone even with the low heat input. Use 100% argon for minimum spatter and clean wetting.

What is the contact tip size for 0.025 in silicon bronze wire?

Use a 0.025 in (0.6 mm) contact tip. Installing a 0.030 in tip on 0.025 in wire causes arc instability and poor arc starts. Silicon bronze wire is slightly smaller than the nominal 0.025 in dimension due to soft-alloy compression, so a precisely sized 0.025 in tip ensures proper electrical contact.

Does silicon bronze mig wire require flux?

No. ERCuSi-A is a bare solid wire that uses only shielding gas (100% Ar) for protection. The silicon in the alloy acts as an in-pool deoxidizer, eliminating the need for flux. This produces low-spatter, virtually no-slag welds that require minimal post-weld cleanup — a key advantage for auto body applications.

Product Selection — Choosing the Right Silicon Bronze MIG Wire Diameter

Choosing the correct silicon bronze wire diameter is critical to achieving the right combination of heat input and deposition rate. Regular price comparison between 0.025 in and 0.035 in products often focuses on per-pound cost, but the real choice is about process capability. Add 0.025 in wire to your cart when working on 20–24 gauge panels; select 0.035 in for 16–18 gauge; and choose 0.045 in for 14 gauge and heavier structural sections. For each type of application, the subtotal cost of wire per linear foot of weld is comparable — the key variable is the spool size required. This 10 lb spool format is the most popular item in the 0.025 in silicon bronze line because it balances the need for enough wire to handle a typical production run without the risk of wire aging from sitting too long on a feeder. When you type in your machine's wire feed speed settings, start 20% lower than you would for 0.030 in steel wire to find the right quickly-adjusted baseline for silicon bronze brazing.

Silicon Bronze MIG Brazing — Technique Guide for 0.025 in Wire

The Harris 00SIB15 silicon bronze MIG wire at 0.025 in (0.6 mm) diameter is the finest gauge in the Harris silicon bronze range, designed for ultra-thin sheet metal work, auto body panels (18–24 gauge), HVAC sheet, and precision copper braze welding applications where heat input must be minimized. At 0.025 in, the wire runs at 60–120 A — lower current than 0.030 or 0.035 in ERCuSi-A — making it the right choice for panels too thin to tolerate the heat of larger diameters.

Silicon bronze mig brazing at 0.025 in diameter produces consistent short-circuit transfer at machine settings that avoid burn-through on 22–24 gauge coated steel. The 10 lb spool format of 00SIB15 is an economical quantity for body shops, restoration shops, and custom fabricators who perform silicon bronze MIG brazing regularly but do not need production-scale 30 lb spools. Ten pounds provides approximately 250–300 linear feet of 0.025 in wire, sufficient for dozens of panel brazing jobs.

Setup for 0.025 in Silicon Bronze Wire

Because 0.025 in wire is thin and soft (copper-silicon alloy has less column strength than steel), bird-nesting and liner drag are the most common feeding problems. Use a push-pull MIG gun or a short 10–12 ft gun cable. Clean the liner every 5–10 spools. Tension the drive rolls lightly — over-tensioning deforms the soft wire and worsens feeding. Use the smallest practical contact tip for the wire diameter: 0.025 in tip with 0.025 in wire maintains proper electrical contact without burning back.

Applications: Where 0.025 in Silicon Bronze Beats Other Options

• Auto body panel braze welding: Galvanized, zinc-coated, and aluminum-coated body steel from modern vehicles joins cleanly with silicon bronze MIG brazing without zinc burn-off or distortion visible through finished paintwork.
• HVAC duct joining: Thin-gauge galvanized ductwork (26–28 gauge) joins with 0.025 in silicon bronze wire without burn-through, producing sound seams compatible with mastic or tape sealing.
• Copper pipe and fitting repair: The 0.025 in wire works for small-diameter copper tube repair where a torch is impractical. The ERCuSi-A alloy matches copper base metal chemistry closely, giving a near-invisible joint in decorative and architectural applications.
• Cast iron cosmetic repair: Fine-diameter silicon bronze MIG wire allows cosmetic repair of cast iron housings, brackets, and decorative castings with small beads and minimal HAZ.
• Jewelry and artistic fabrication: 0.025 in ERCuSi-A at low amperage works for bronze-on-steel artistic welding on sculpture, railings, and decorative metalwork where bead aesthetics are critical.

Troubleshooting Silicon Bronze MIG Wire Feeding Problems

Silicon bronze wire feeding issues are almost always mechanical, not electrical. The alloy is 40–50% softer than steel wire and responds poorly to the same setup that works for ER70S-6. Diagnosing and resolving feeding problems in sequence saves significant time:

1. Check liner type: Steel-liner guns wear rapidly with silicon bronze wire; bronze shavings contaminate the weld. Replace with a Teflon or nylon liner.
2. Check drive roll groove: V-groove knurled rolls crush soft copper alloy. Replace with U-groove (round-groove) smooth rolls for copper and aluminum wire.
3. Check drive roll tension: Back off the tension screw until the wire just barely feeds without slipping. Excess tension deforms the wire.
4. Check contact tip size: A 0.030 in tip with 0.025 in wire causes arc instability and erratic feeding. Match tip to wire diameter exactly.
5. Check gun cable length: Long cables (15–25 ft) increase feeding resistance with small-diameter soft wire. Use 10–12 ft guns for best performance.

Harris 00SIB15 10 lb spool is an authorized WeldingMart product. See also Harris Silicon Bronze 0.035 in 2 lb Spool and Harris Silicon Bronze 0.045 in 30 lb Spool for the full diameter range.

Silicon Bronze MIG Brazing — Technique Guide for 0.025 in Wire

The Harris 00SIB15 silicon bronze MIG wire at 0.025 in (0.6 mm) diameter is the finest gauge in the Harris silicon bronze range, designed for ultra-thin sheet metal work, auto body panels (18–24 gauge), HVAC sheet, and precision copper braze welding applications where heat input must be minimized. At 0.025 in, the wire runs at 60–120 A — lower current than 0.030 or 0.035 in ERCuSi-A — making it the right choice for panels too thin to tolerate the heat of larger diameters.

Silicon bronze mig brazing at 0.025 in diameter produces consistent short-circuit transfer at machine settings that avoid burn-through on 22–24 gauge coated steel. The 10 lb spool format of 00SIB15 is an economical quantity for body shops, restoration shops, and custom fabricators who perform silicon bronze MIG brazing regularly but do not need production-scale 30 lb spools. Ten pounds provides approximately 250–300 linear feet of 0.025 in wire, sufficient for dozens of panel brazing jobs.

Setup for 0.025 in Silicon Bronze Wire

Because 0.025 in wire is thin and soft (copper-silicon alloy has less column strength than steel), bird-nesting and liner drag are the most common feeding problems. Use a push-pull MIG gun or a short 10–12 ft gun cable. Clean the liner every 5–10 spools. Tension the drive rolls lightly — over-tensioning deforms the soft wire and worsens feeding. Use the smallest practical contact tip for the wire diameter: 0.025 in tip with 0.025 in wire maintains proper electrical contact without burning back.

Applications: Where 0.025 in Silicon Bronze Beats Other Options

• Auto body panel braze welding: Galvanized, zinc-coated, and aluminum-coated body steel from modern vehicles joins cleanly with silicon bronze MIG brazing without zinc burn-off or distortion visible through finished paintwork.
• HVAC duct joining: Thin-gauge galvanized ductwork (26–28 gauge) joins with 0.025 in silicon bronze wire without burn-through, producing sound seams compatible with mastic or tape sealing.
• Copper pipe and fitting repair: The 0.025 in wire works for small-diameter copper tube repair where a torch is impractical. The ERCuSi-A alloy matches copper base metal chemistry closely, giving a near-invisible joint in decorative and architectural applications.
• Cast iron cosmetic repair: Fine-diameter silicon bronze MIG wire allows cosmetic repair of cast iron housings, brackets, and decorative castings with small beads and minimal HAZ.
• Jewelry and artistic fabrication: 0.025 in ERCuSi-A at low amperage works for bronze-on-steel artistic welding on sculpture, railings, and decorative metalwork where bead aesthetics are critical.

Troubleshooting Silicon Bronze MIG Wire Feeding Problems

Silicon bronze wire feeding issues are almost always mechanical, not electrical. The alloy is 40–50% softer than steel wire and responds poorly to the same setup that works for ER70S-6. Diagnosing and resolving feeding problems in sequence saves significant time:

1. Check liner type: Steel-liner guns wear rapidly with silicon bronze wire; bronze shavings contaminate the weld. Replace with a Teflon or nylon liner.
2. Check drive roll groove: V-groove knurled rolls crush soft copper alloy. Replace with U-groove (round-groove) smooth rolls for copper and aluminum wire.
3. Check drive roll tension: Back off the tension screw until the wire just barely feeds without slipping. Excess tension deforms the wire.
4. Check contact tip size: A 0.030 in tip with 0.025 in wire causes arc instability and erratic feeding. Match tip to wire diameter exactly.
5. Check gun cable length: Long cables (15–25 ft) increase feeding resistance with small-diameter soft wire. Use 10–12 ft guns for best performance.

Harris 00SIB15 10 lb spool is an authorized WeldingMart product. See also Harris Silicon Bronze 0.035 in 2 lb Spool and Harris Silicon Bronze 0.045 in 30 lb Spool for the full diameter range.

Silicon Bronze TIG Brazing and MIG Applications — 0.025 in Filler Material Guide

Silicon bronze TIG brazing is a related process to silicon bronze MIG brazing — both use ERCuSi-A silicon bronze alloy as filler material, but TIG brazing uses the GTAW torch for precise heat control. The Harris 00SIB15 0.025 in wire format is the MIG version; for tig brazing applications, Harris also offers silicon bronze tig rod in equivalent chemistry. The primary distinction between silicon bronze TIG brazing and silicon bronze MIG processes is heat input control — tig brazing allows the operator to precisely modulate arc heat, making it preferable for thin base metals where the short-circuit MIG transfer mode of 0.025 in wire still produces more heat than TIG at equivalent deposits.

For similar composition base metals including copper brass, welding alloy silicon bronze deposits on galvanized steels with 0.025 in wire. Tig brazing on galvanized steels produces minimal zinc burn-off — silicon bronze tig brazing with a TIG torch and ERCuSi-A filler rod is used in precision automotive assembly for joining zinc-coated mild steel stampings. The welding base metals procedure for silicon bronze tig work requires a filler rod (not a spool), while silicon bronze MIG brazing uses the wire-in-spool format of 00SIB15.

The filler rod (when used in tig brazing) is fed manually into the tig torch arc zone. The silicon bronze tig process on galvanized steels follows the same shielding gas requirement as MIG — 100% Ar. The tig torch work angle is 70–80° from the base metal, with the filler material rod introduced at 15–20° from horizontal in the leading puddle area. Silicon bronze tig brazing is particularly useful on mild steel where the base metals require a joint that retains the galvanized steel's zinc coating adjacent to the braze. Base metals of brass, copper, and silicon bronze base metals all respond well to silicon bronze tig and MIG brazing when surfaces are clean and 100% Ar shielding is maintained.

Silicon Bronze 0.025 Wire — More Uses, Brass Joining, and Weld Technique Supplement

Harris 00SIB15 silicon bronze 0.025 in wire is used to weld and braze weld an extensive range of base metals. The wire is frequently used for thin-gauge coated sheet steel in automotive and body shop applications. The 10 lb box format is a practical spool size for shops that weld silicon bronze occasionally — the box stores well and the wire does not degrade significantly with time when kept sealed. To weld galvanized steels frequently in an automotive body shop, silicon bronze MIG wire is the standard specification because it produces minimal zinc burn-off and requires pre heat only on brass and heavy copper sections.

Brass joining with silicon bronze wire is an important application — require pre heat on brass base metals over 3/16 in thick to avoid thermally-induced cracking. Copper content in the ERCuSi-A silicon bronze alloy is approximately 93–96%, making the filler close to the copper content of most brass alloys. For silicon bronze base metals (joinings and fittings), 0.025 in wire provides fine bead control. The melt pool of silicon bronze at 0.025 in diameter is small — approximately 3/8 in wide on thin sheet — which is ideal for precise braze weld beads. Share the product page with your shop foreman or purchasing team; the 10 lb box quantity can be ordered in multiples for production runs that frequently use 0.025 in silicon bronze wire. Add multiple boxes to cart for volume pricing. Metal type determines the pre heat requirement: galvanized steels require no preheat; brass and copper require 200–400 °F depending on section thickness; cast iron requires 400–600 °F.

Silicon Bronze 0.025 Wire — Temperature, Welders, and Conforms to AWS A5.7

Harris 00SIB15 silicon bronze welding wire conforms to AWS A5.7 ERCuSi-A classification requirements. The wire conforms to rigorous chemistry and mechanical property standards for silicon bronze mig wire. Welders familiar with steel MIG wire will find silicon bronze requires lower temperature settings — the weld pool temperature of ERCuSi-A braze welds is approximately 1,900 °F, well below the 2,600 °F fusion temperature of steel MIG. This lower temperature reduces distortion and zinc burn-off on galvanized base metals. Temperature control is critical — require pre heat on brass sections over 3/16 in, with pre heat depending on thickness and configuration of the brass joint. Welders transitioning from steel MIG to silicon bronze MIG brazing should reduce voltage by 15–20% from their steel settings as a starting point, then fine-tune based on bead appearance.

The 10 lb box of 0.025 in silicon bronze welding wire is practical for a wide range of shop sizes. Melt characteristics of the 0.025 in wire: the small diameter wire melts quickly at low current (60 A minimum), producing a narrow, controllable bead that welders can direct precisely on thin sheet. The welding wire spool contains approximately 1,600 ft of 0.025 in wire. AC MIG machines are not recommended for silicon bronze wire — use a DC constant-voltage GMAW power source. Weld total count for the 10 lb box at typical auto body panel application (5 in bead per joint): approximately 280–320 body panel braze joints per box, making the 10 lb box a box that lasts a medium-sized body shop several weeks. The box format (as opposed to a drum) fits standard 4 in or 8 in spool holders, and the welding wire conforms to the spool hub configuration for most MIG machines. Pre heat depending on base metal: galvanized steel panels require no pre heat; brass require pre heat at 200–400 °F; cast iron requires pre heat at 400–600 °F. Welders operating at the metal temperature limits should monitor with contact thermometer to confirm temperature before tacking. Pretty consistent arc behavior from this wire when setup is correct: AC power sources should be avoided, but any DC CV MIG machine conforms to the wire requirements.

Silicon Bronze TIG Welding Wire 0.025 — Stock, Brand, and Base Material Guide

Harris silicon bronze tig welding wire 025 equivalent chemistry is also available in TIG rod form from Harris. The 00SIB15 MIG wire and the TIG rod share the same ERCuSi-A welding alloy classification per AWS A5.7, making either format suitable for silicon bronze applications. For the MIG spool format, WeldingMart stocks Harris 00SIB15 as an authorized brand distributor. Check stock availability online or contact WeldingMart to confirm availability before ordering. Sold in 10 lb spools, this silicon bronze 0.025 welding alloy is the fine-diameter option in the Harris silicon bronze product line.

For welding base metals with 0.025 in silicon bronze mig wire, the base material determines preheat and technique. Silicon bronze mig wire 025 is frequently used to weld similar composition base metals including bronze fittings, copper base material, and brass or copper base components without flux. The melting point of silicon bronze (ERCuSi-A) is approximately 1,800–1,900 °F — lower than the melting point of the steel base material being braze welded. This melting point differential is why silicon bronze MIG brazing leaves galvanized coatings intact adjacent to the joint. The wire is used to weld and braze weld the following base material categories: coated sheet steels (galvanized, aluminized, zinc-coated), copper base material (pipe, sheet, fittings), brass or copper base components, and cast iron. Share the product page link with purchasing departments evaluating silicon bronze welding wire 025 for production brazing. For similar composition base metals including naval brass and commercial bronze, require pre heat on brass over 3/16 in thickness — pre heat depending on composition reduces thermal cracking risk. The brand (Harris) and AWS classification (ERCuSi-A) are the key specification identifiers to verify when sourcing 0.025 in silicon bronze mig welding alloy. The brand verifies compatibility with Harris PRO-LINE MIG guns using standard 0.025 in tips.
