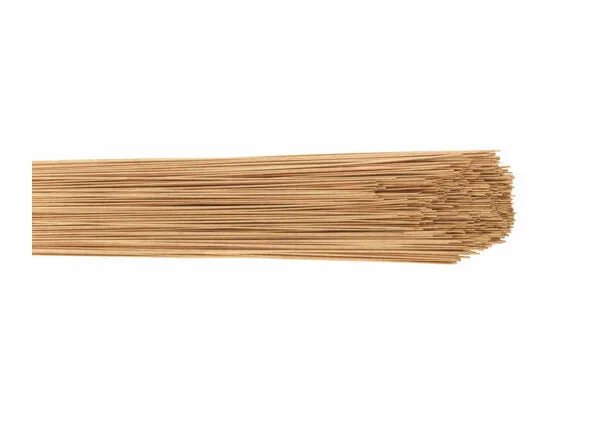

The Harris ERCuSi-A Silicon Bronze TIG Welding Rod (part number 03SIB30) is a fine-diameter copper-silicon filler metal classified ERCuSi-A per AWS A5.7/A5.7M. Available in a 1/16 in (1.59 mm) diameter, 36-inch cut length, 10 lb box, this rod provides the same silicon bronze chemistry as larger diameter ERCuSi-A rods — approximately 94% copper with 2.8–4.0% silicon, plus trace manganese and tin — but in the fine diameter needed for precision TIG work on thin copper alloy sections, light-gauge steel braze-welding, and intricate artistic metalwork. Harris Products Group, a Lincoln Electric company, produces this rod with consistent lot chemistry for repeatable arc character and weld pool behavior. The 1/16 in diameter allows welding at significantly lower amperage (40–90 A) than the 1/8 or 3/32 in sizes, extending the usefulness of the ERCuSi-A alloy to thin-wall copper tube, delicate silicon bronze sculpture, and thin-gauge automotive sheet metal braze-welding where the larger diameter would deposit too much material per pass.
Silicon bronze is one of the few filler metals that bridges fusion copper welding and braze-welding applications in a single rod. On silicon bronze or copper base metal, ERCuSi-A TIG produces a true fusion weld. On mild steel, galvanized steel, or thin stainless, the same rod produces a braze-weld — the base metal does not melt, but the silicon bronze bonds to the cleaned surface at below-steel-melting temperatures. This dual capability makes 1/16 in ERCuSi-A a uniquely versatile tool in automotive restoration, artistic metal fabrication, and custom copper plumbing applications.
| Attribute | Value |
|---|---|
| AWS Classification | ERCuSi-A (AWS A5.7/A5.7M) |
| Harris Part Number | 03SIB30 |
| Diameter | 1/16 in (1.59 mm) |
| Cut Length | 36 in (914 mm) |
| Package Weight | 10 lb box |
| Silicon Content | 2.8–4.0% |
| Copper | Balance (~94–96%) |
| Manganese | 1.5% max |
| Zinc | 1.0% max |
| Tin | 1.0% max |
| Tensile Strength (as welded) | ≥55,000 psi (379 MPa) |
| Elongation (as welded) | ≥17% |
| Polarity | DCEN |
| Shielding Gas | 100% Argon |
| Process | GTAW (TIG) |
| Applications | Thin copper alloy fusion welding; thin steel and galvanized steel braze-welding; silicon bronze sculpture; bicycle frames |
- Thin-Wall Copper Tube Welding: 3/8 in–3/4 in OD copper water pipe, 1/4 in instrumentation tubing, and medical gas copper tube at thin wall gauges (Type L, Type K). The 1/16 in diameter provides precise heat control on small-bore copper joints where 3/32 in or 1/8 in rod deposits too much filler and risks flooding the bore.
- Silicon Bronze Sculpture & Art Metal: Delicate sculpture assemblies, thin-section bronze castings, and art metalwork requiring fine, controllable bead placement. The 1/16 in diameter allows detail TIG work at 40–70 A that would be impossible with larger-diameter bronze rod.
- Automotive Sheet Metal Braze-Welding (Thin Gauge): Joining 18–22 gauge galvanized steel body panels with minimum heat input. Classic car restoration shops working on thin vintage steel body panels (0.030–0.055 in) use 1/16 in silicon bronze TIG to braze-weld patches and seams without the warpage that would result from fusion welding at those thicknesses.
- Bicycle Frame Building — Detail Joints: Mitered tube-to-tube joints, seat stay caps, dropout reinforcements, and dropouts on steel and chromoly bicycle frames where the joint geometry is too small and detailed for 3/32 in rod.
- Plumbing Repair & Custom Copper Work: Precision copper repairs, custom copper furniture components (Craftsman-style table bases, copper bar tops, decorative pipe work), and medical/dental gas plumbing repairs in confined locations.
- Jewelry & Decorative Metalwork: Large-scale jewelry and sculptural metalwork in silicon bronze where the 1/16 in diameter matches the scale of the work. Bronze casting repair, metal art installations, and museum restoration projects.
Fine-diameter silicon bronze TIG welding at 1/16 in requires low-amperage DCEN setup and particular attention to base metal preparation:
Base Metal Preparation (Critical): Silicon bronze will not properly wet onto contaminated surfaces. For copper base metal, clean with 400-grit abrasive and degrease with acetone. For steel braze-welding, clean all rust, paint, grease, and mill scale — sand to bright steel with 80–120 grit abrasive and degrease immediately before welding. Any contamination prevents the liquid bronze from wetting the surface, producing cold-lap (lack of bond) defects.
Tungsten for 1/16 in Rod: 1/16 in 2% ceriated tungsten is ideal for low-amperage precision work with 1/16 in ERCuSi-A. At 40–90 A DCEN, the ceriated tungsten provides excellent arc starts. Grind to a fine point for precise arc placement on small joints and intricate sculptural geometry.
Steel Braze-Weld Technique: For thin-gauge steel, hold the arc at the filler rod only — do not point the tungsten directly at the steel surface. Allow the molten silicon bronze to flow and wet the steel under its own fluidity and gravity. If the steel begins to glow orange-red, the amperage is too high and the steel is overheating. Reduce amperage and increase travel speed to prevent steel melt-through.
| Application | Amperage | Travel Speed | Shielding Gas |
|---|---|---|---|
| Silicon bronze sculpture (thin section) | 40–70 A DCEN | 3–5 in/min | 100% Ar, 15 CFH |
| Copper tube 3/8 in OD | 50–80 A DCEN | 4–6 in/min | 100% Ar, 15–18 CFH |
| Braze-weld 20 gauge galvanized steel | 45–70 A DCEN | 5–8 in/min | 100% Ar, 15 CFH |
| Braze-weld 18 gauge steel | 60–85 A DCEN | 4–7 in/min | 100% Ar, 16 CFH |
- Oxidation Management: Copper alloy rods in fine 1/16 in diameter develop surface oxidation faster than larger diameters due to higher surface-area-to-volume ratio. Store in sealed original box in a dry environment (below 50% RH). Light green-brown tarnish (patina) is normal and generally does not affect weld quality. Severe corrosion or pitting warrants rod replacement.
- Gloves When Handling: Clean gloves prevent skin oils from contaminating the copper rod surface. While silicon bronze is not as hydrogen-sensitive as aluminum, skin grease can cause poor wetting on steel braze-welds where surface cleanliness is already the most critical variable.
- Ventilation: Copper and silicon alloy welding generates fumes. Store in ventilated areas and weld in well-ventilated spaces. 1/16 in rod at lower amperage generates less fume than larger-diameter rods at higher amperage, but adequate ventilation is still required.
- Kink Prevention: Like all fine-diameter TIG rods, the 1/16 in silicon bronze rod kinks if bent. Handle the box gently and store flat. A kinked rod creates irregular arc behavior at the bend point — discard kinked sections.
- Separation from Aluminum Rods: Store silicon bronze rods separately from aluminum TIG rods. At 1/16 in, they are dimensionally similar and visually difficult to distinguish. Accidentally using silicon bronze on aluminum creates a completely incompatible weld — copper and aluminum do not form a sound weld. Label boxes clearly.
Any DC TIG machine works for 1/16 in ERCuSi-A at the low amperages used:
- Lincoln Electric Invertec V155-S: Compact DC TIG machine well-suited for body shop silicon bronze braze-welding and light copper fabrication with 1/16 in rod.
- Lincoln Electric Square Wave TIG 200 (K5126-1): Versatile AC/DC machine; DC mode for silicon bronze and copper; AC mode for aluminum — handles both alloy families with one machine.
- Any GTAW machine with HF start and foot pedal: Foot pedal is recommended for thin copper tube work and artistic sculpture where amperage modulation in and out of corners and terminations is essential.
| Base Metal | ERCuSi-A 1/16 Compatibility | Notes |
|---|---|---|
| Silicon bronze (Everdur CDA 655) | ✅ Primary fusion weld | Matching chemistry — sculpture, architectural bronze |
| C110 / C102 copper (thin) | ✅ Primary | Small-bore tube welding; preheat only required on heavier sections |
| Mild steel (braze-weld, thin gauge) | ✅ Braze-weld | Do not melt steel; use low amperage and fast travel |
| Galvanized steel (18–22 gauge) | ✅ Automotive primary | OEM automotive braze-weld spec; reduces zinc fume |
| Chromoly steel (bicycle frames) | ✅ Braze-weld | Classic technique; low distortion on thin-wall CrMo tubing |
| Brass (70/30, 65/35) | ✅ Acceptable | Zinc-bearing base metal; ERCuSn-A may better match brass composition |
| Aluminum | ❌ | Copper-aluminum intermetallics form brittle joint — never use |
Q1: Can I use 1/16 in silicon bronze TIG rod for bicycle frame building?
Yes. The 1/16 in diameter is ideal for bicycle frame braze-welding work. Classic steel frame builders use silicon bronze TIG at 50–80 A for the small-section tube-to-tube joints found in bicycle frames — seat tubes (1 in OD typically), top tubes, down tubes, and stays. The low heat input of silicon bronze TIG versus steel fusion TIG preserves the mechanical properties of thin-wall chromoly (4130) tubing, which can be negatively affected by the high heat of full fusion welding.
Q2: Is 1/16 in silicon bronze suitable for copper water pipe joints?
Yes, for pipe up to about 3/4 in OD at Type L or K wall thickness. For larger-bore pipe above 3/4 in OD, 3/32 in or 1/8 in ERCuSi-A rod is more efficient. The 1/16 in diameter is excellent for 3/8 in and 1/2 in copper tube joints — small-bore medical gas, pneumatic control, and instrument copper piping commonly found in process facilities.
Q3: What causes my silicon bronze weld bead to "ball up" instead of wetting the steel?
"Balling up" — where the molten bronze does not flow out and wet the base metal — is caused by one of three things: (1) contaminated base metal surface — the bronze will not wet through paint, rust, mill scale, or oil; clean to bright metal immediately before welding, (2) too little amperage or arc is aimed at the rod only and not warming the base metal surface, (3) base metal too cold — particularly relevant in cold shop conditions where the steel draws heat away faster than the arc can supply it. Increase travel speed slightly and aim the arc between the rod and the joint to preheat the steel surface ahead of the molten pool.
Q4: Does silicon bronze TIG welding leave a visible bead line on car body panels?
Yes. Silicon bronze TIG braze-welding leaves a visible bronze-colored (golden) bead line that is distinctly different from the steel base metal color. In automotive body repair, this bead is typically dressed with a grinder (disc or flap wheel) or body filler, then primed and painted. The braze bead grinds easily — much more smoothly than fusion steel welds — and a skilled body worker can dress a silicon bronze braze seam to an invisible finish under paint.
Q5: What is the difference between 1/16 in and 3/32 in silicon bronze TIG rod for automotive work?
The 1/16 in rod is preferred for the thinnest gauges (18–22 gauge steel) and for intricate joints with limited access. It deposits less material per pass at lower amperage, reducing heat input and base metal heating. The 3/32 in rod is more efficient for 14–16 gauge steel, large panel seams, and structural sections. For typical late-model automotive body repair (most panels are 18–22 gauge), 1/16 in silicon bronze TIG is the standard choice.
Q6: Can I use silicon bronze TIG rod on stainless steel exhaust flanges?
Not recommended for exhaust applications. The ERCuSi-A deposit would create a copper-alloy joint in a high-temperature oxidizing environment — copper alloys are not rated for sustained temperatures above 500°F (260°C) in oxidizing conditions. For stainless exhaust flanges, use a TIG fusion weld with ER308L or ER316L stainless rod. Silicon bronze is for room-temperature and moderate-temperature service only.
Q7: Does the 1/16 in silicon bronze rod work with an automated TIG system?
Yes. Cold-wire feed TIG systems can use 1/16 in ERCuSi-A rod from a coil or spool (ensure the feed system is designed for cut-rod or coiled wire as applicable). Automated silicon bronze TIG braze-welding is used in automotive OEM body-in-white production lines for joining galvanized roof panels to body sides — a production application that validates the 1/16 in diameter at automated amperage settings of 55–90 A.
