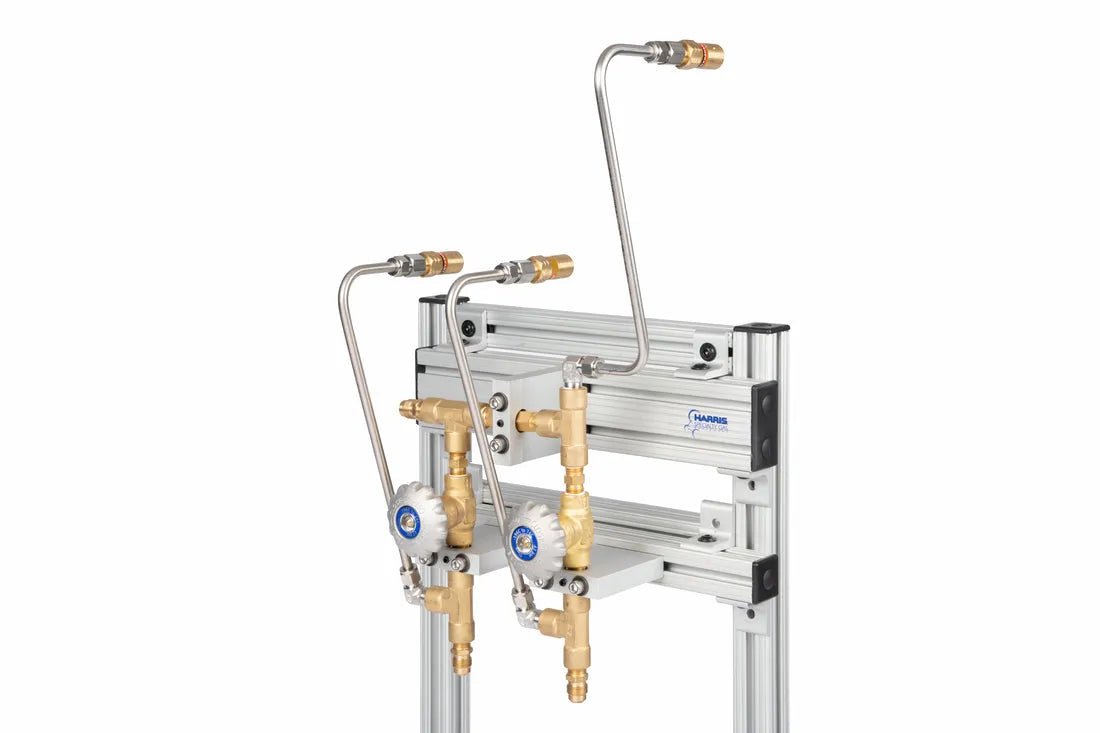

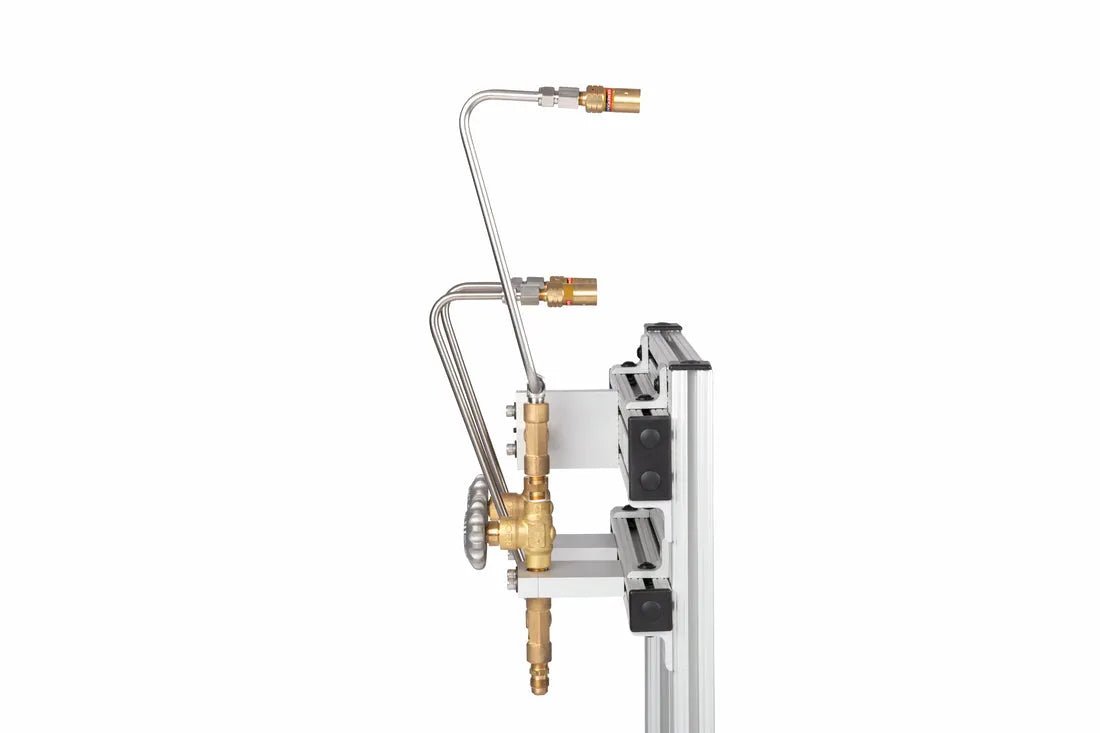

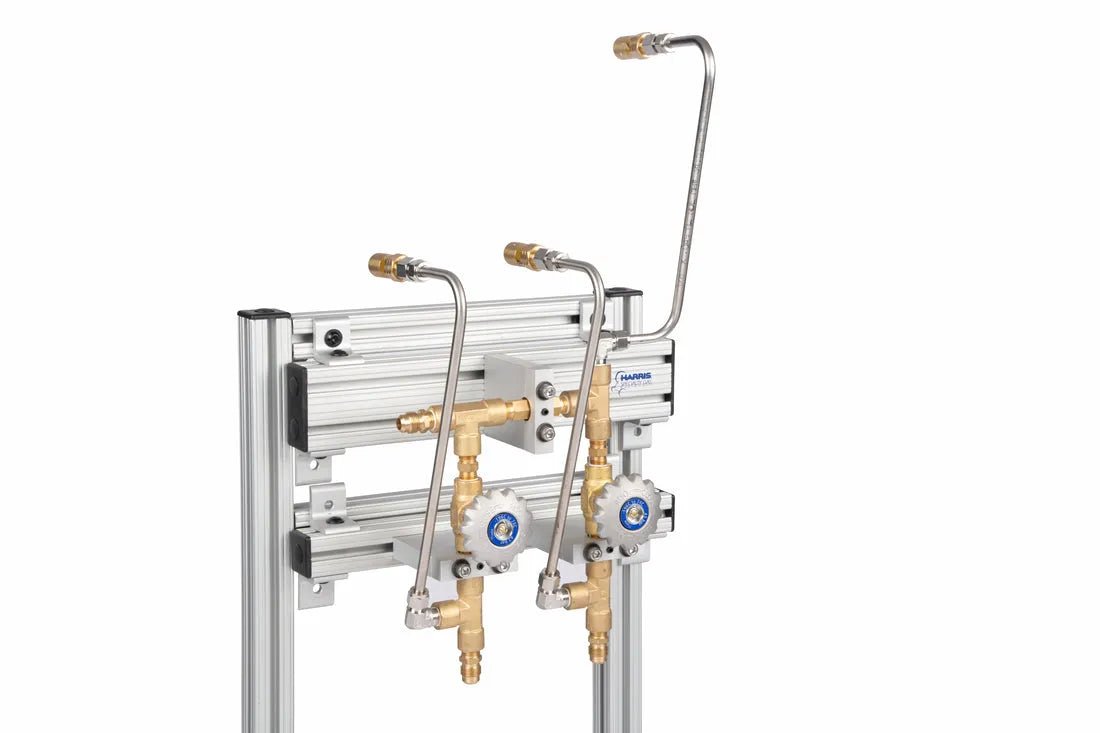

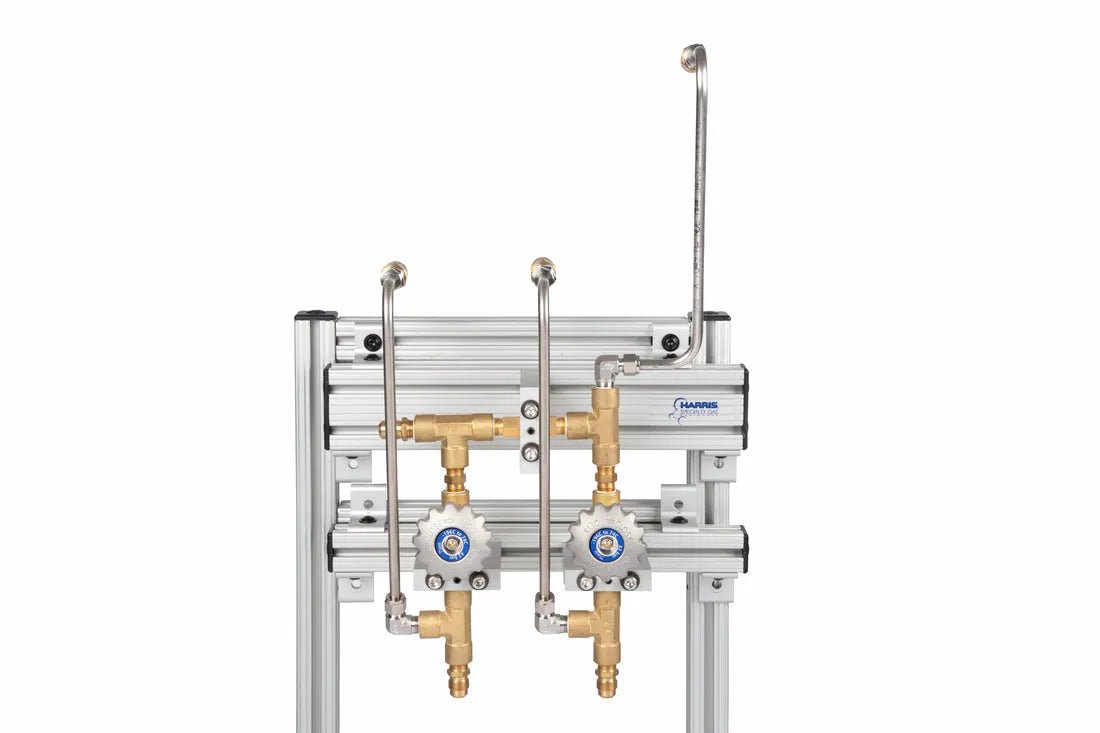

Harris Two N2 Dewar Source x One Freezer with one Liquid N2 Withdrawal Port CGA 295 - 4703012
Harris cryogenic header manifolds are designed specifically to supply liquid nitrogen to freezers. The manifolds have cryogenic service safety relief valves to prevent the pipe failure if liquid nitrogen becomes trapped between shut-off valve and the freezer solenoid valves.
The header is made from 3/8” brass pipe. The safety relief valves are extended to a height ensuring they do not become encased in ice if manifold develops exterior ice coating.
Manifolds come complete with cryogenic hoses, cryo check valves, and 295 adapters. All manifolds come standard with wall mounting hardware.
In addition, the 2, 3, and 4 Dewar Cylinder models come with optional dispensing hose equipped with a phase separator.
SPECIFICATIONS
• Header - 3/8" extra heavy brass pipe
• Safety Relief Valve Setting - 75 PSIG
• Inlet Connection - CGA 295 Female swivel
• Output Connections - CGA 295 Male
