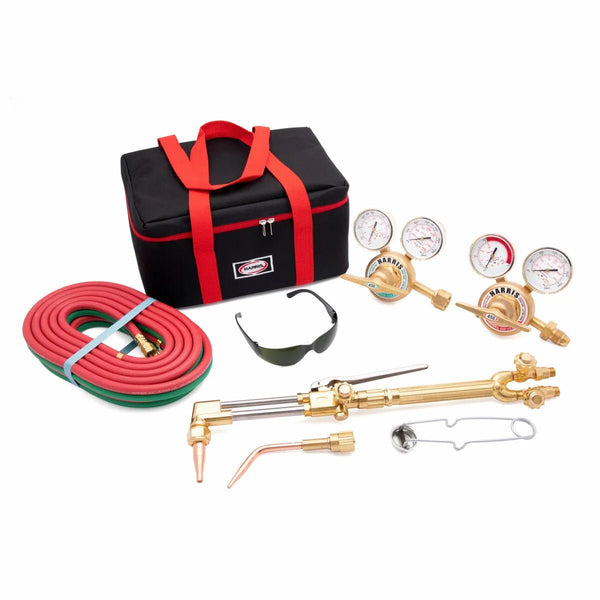

Harris Model 450 Deluxe Ironworker acetylene torch kit contains quality equipment needed for cutting, brazing, and welding using oxygen and acetylene gases. The outfit can cut up 8 in. (203.2mm) and is supplied with a tip to cut up to 1 in. (25.4mm) plate. The kit can braze up to 6 in. (152.4) diameter copper tube and is supplied with a size tip for brazing copper up to 1 ½ in. (38.1mm) tube. The kit is capable of welding up to 1 in. (25.4mm) and is supplied with a tip that welds up to 1/16 in. (1.6mm) plate.
Features
- Extra Heavy Duty 2-tube design outfit to be used with oxygen and acetylene gases.
- Regulator oxygen and acetylene Harris Model 450 with easy-to-read dual scale 2.5 in. gauges, brass T-screw handle, Stainless Steel diaphragms and tamper-proof, self-reseating safety relief valve and our distinguished internal encapsulated seat filter. Oxygen Regulator that delivers up to 125 psi and acetylene Regulator delivers up to 15 psi.
- Torch handle Harris Model VH31 that has tube-within-a-tube construction and is equipped with external replaceable FlashGuard check valves. This handle is the ideal choice for heavy heating applications.
- Cutting attachment Harris Model Vh34 features a stainless-steel lever, an in-tube mixer, and threaded connections for easy repair.
- Consumables included - V1-101-1 cutting tip, V-W mixer and 23A90-5 welding tip.
- Accessories included - Shade 5 safety glasses (ANSI Z87.1 CE Weld);Handheld ignitor;1/4 in. x 20 ft. twin R-grade hose and Harris black and red insulated tool kit bag
Specifications
| Cutting Attachment Model Number | Vh34 |
| Cutting Capacity | Up to 8 in. (203.2mm) plate with optional tip(s) Optional tip(s) sold separately |
| Cutting Tip Style - Acetylene-h3 (Size) | V1-101-1 |
| Duty | Extra-Heavy |
| Equipped With | FlashGuard check valves - handle |
| Fuel Gas Regulator Model Number | 450-15-300 |
| Gas / Gas Service | Acetylene |
| Gauges | 2.5 in. Brass dual scale (psi/kPa) - Regulators |
| Hose Connection/Fittings | BxB |
| Hose Size | 1/4 in. x 20 ft. |
| Hose Type | Twin Oxygen-Acetylene R-grade |
| Included Accessories | Shade 5 safety glasses (ANSI Z87.1 CE Weld) Handheld ignitor 1/4 in. x 20 ft. twin BxB R-grade hose Harris black and red insulated tool kit bag |
| Mixer Model Number | V-W |
| Mixer Type | E-Equal or positive pressure |
| Oxygen Regulator Model Number | 450-125-540 |
| Recommended Items/Accessories | Steel Gauge Guard - Red (Fuel) - PN 4300863 Steel Gauge Guard - Green (Oxygen) - PN 4300862 Standard Tip Cleaner - Model C-9 - PN 9000156 Two-Piece Tip Cleaner - Model E-9 - PN 9000160 |
| Seat | PTFE Teflon - Regulators |
| Tank Connection | CGA 540 CGA 300 |
| Torch Handle Model Number | VH31 |
| Welding Capacity | Up to 1/2 in. (12.7mm) plate with optional tip(s) Optional tips sold separately |
| Welding/Brazing Tip Model Number - Acetylene | 23A90-5 |
