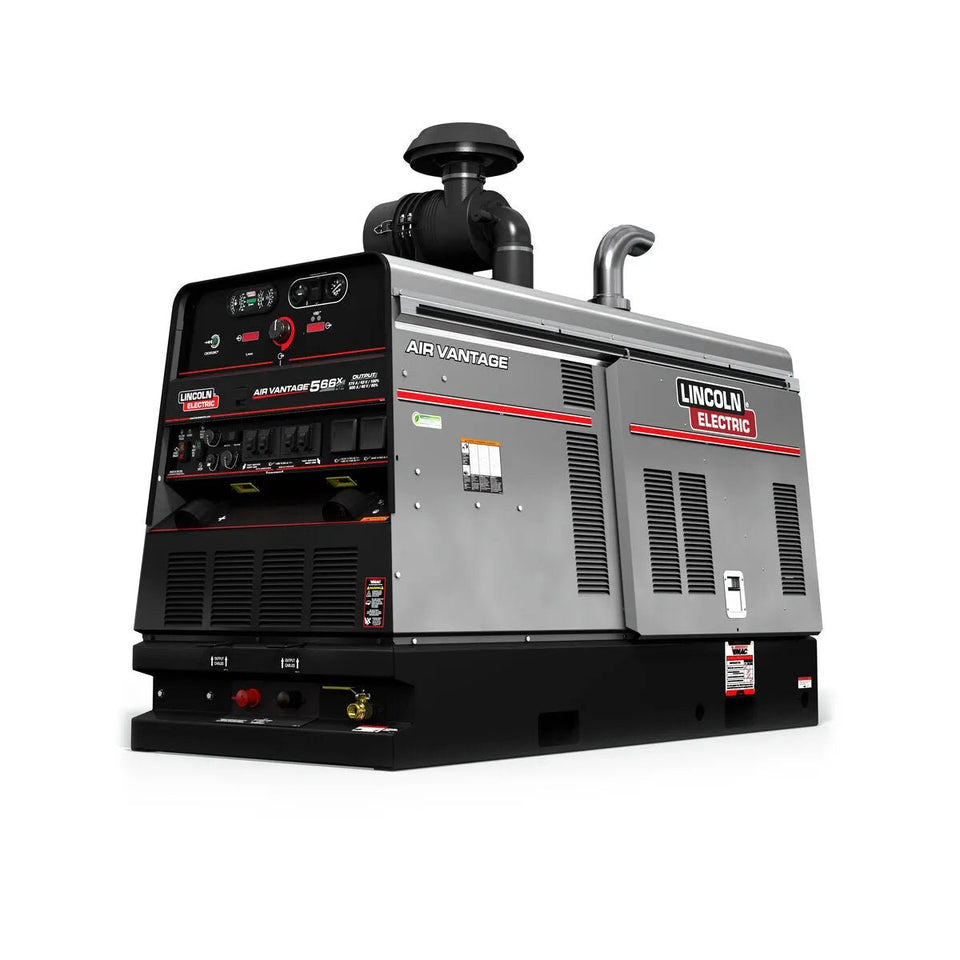

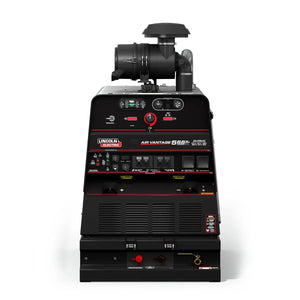

The Lincoln Air Vantage 566X Ready-Pak 3 (K3242-3-RP3) represents the ultimate mobile welding solution for demanding industrial applications, combining a professional-grade 600-amp welder, robust 20 kW generator, and high-performance 60 CFM air compressor in one factory-assembled trailer package. This comprehensive 3-in-1 system arrives jobsite-ready with a heavy-duty trailer, fender and light kit, and integrated cable rack, providing contractors, maintenance crews, and rental fleets with immediate deployment capability for remote locations and challenging industrial environments. The Air Vantage 566X Ready-Pak 3 delivers exceptional versatility with its multi-process welding capabilities supporting stick welding, TIG welding, MIG welding, flux-cored welding, and aggressive carbon arc gouging with carbons up to 3/8 inch, establishing it as the premier mobile welding solution for construction sites, pipeline operations, mining applications, and structural fabrication.
Engineered with Lincoln's advanced CrossLinc Technology, the Air Vantage 566X Ready-Pak 3 revolutionizes remote welding operations by enabling precise voltage and current control directly at the arc without additional control cables. This innovative technology dramatically enhances workplace safety, reduces jobsite clutter, and improves productivity by minimizing trips to the power source, while the built-in True Voltage Technology (TVT) compensates for voltage drop to ensure consistent performance even with long cable runs. Powered by a reliable 65.7 HP Deutz TD2.9L4 turbocharged diesel engine that meets EPA Tier 4 Final emissions standards, this industrial powerhouse delivers exceptional performance while maintaining environmental compliance. The integrated Lincoln Electric Chopper Technology provides superior arc characteristics with minimized spatter during stick and pipe welding, while preventing engine stalling during aggressive gouging operations.
The Air Vantage 566X Ready-Pak 3 excels in remote jobsite applications with its comprehensive power generation capabilities, providing 20 kW of continuous three-phase 240V power and 12 kW of single-phase 120/240V power for operating plasma cutters, grinders, inverter welders, and other essential tools. The industrial-grade VMAC rotary screw air compressor delivers a consistent 60 CFM at 100 PSI, eliminating the need for separate air compressors for plasma cutting, air carbon arc gouging, or pneumatic tools. With expanded welding capabilities including specialized modes for stainless steel, aluminum, steel, submerged arc welding, and orbital pipe applications, plus pulse welding functionality for exceptional control in out-of-position welding, this complete mobile welding package represents the ultimate solution for professionals requiring maximum versatility, reliability, and productivity in challenging industrial environments. The factory-assembled Ready-Pak 3 configuration streamlines acquisition and deployment, making this system ideal for rental fleets and contractors seeking immediate operational capability without additional assembly requirements.
- Air Vantage 566X (Deutz) | K3242-3
- Large Two-Wheel Welder Trailer | K2637-2
- Fender and Light Kit for Welder Trailers | K2639-1
- Cable Rack for Welder Trailers | K2640-1
- On Demand Versatility – Offers up to 600 amps (IEC rated at 525 amps) of welding current to tackle numerous welding and carbon arc gouging applications. Select one of five basic process modes including CC-Stick, Downhill Pipe, DC Touch Start TIG, CV-Wire, or Arc Gouging mode, which maximizes output for up to 3/8 in. (9.5 mm) carbon rods.
- Generator Output – Provides up to 20 kW of continuous three-phase power to run industrial tools such as plasma cutters, pumps, or inverter welders.
- Integrated Air Compressor – 60 cfm @ 100 psi of compressed air powered by VMAC
- Patented Chopper Technology – Experience premium arc performance with minimized spatter for stick or pipe welding as well as enhanced gouging performance that prevents the engine from stalling, resulting in smooth material removal.
- CrossLinc Enabled – Allows communication through a standard weld cable to enable voltage or current control at the arc without a control cable to help improve safety, quality, and productivity with less trips to the power source and reduced jobsite clutter.
- Rent-Ready Package – Product comes in one preassembled package from the factory. Ready-Pak 3 option includes the welder, trailer, fender and light kit, and cable rack.
| Dimensions (H x W x D) | 42 in x 32.9 in x 69 in (1067 mm x 836 mm x 1753 mm) |
| Net Weight | 2109 lbs (957 kg) |
| Machines Processes | Stick (SMAW) Gouging (CAC-A) TIG (GTAW) MIG (GMAW) Pulsed MIG (GMAW-P) Flux-Cored Self-Shielded (FCAW-S) Flux-Cored Gas-Shielded (FCAW-G) Submerged Arc (SAW) |
| Open Circuit Voltage | 66 Peak OCV @ 1800 RPM |
| IEC Rating | 525A / 41V / 100% @ 104°F (40°C) |
| Output Range by Mode | CC-Stick: 30 - 600 A Downhill Pipe (CC): 40 - 350 A Touch Start TIG: 20 - 350 A CV-Wire: 15 - 45 V Arc Gouging: 90 - 600 A |
| Rated Gouging Carbon Diameter | 3/8" (9.5 mm) |
| Machines Communication Technology | CrossLinc ArcLink |
| Single Phase Auxiliary Output | 12,000 Watts Continuous, 120/240V |
| Three Phase Auxiliary Output | 20,000 Watts Continuous, 240V |
| Auxiliary Output Frequency | 60 Hz |
| Receptacle Types | NEMA 5-20R NEMA 14-50R NEMA 15-50R |
| Engine Brand & Model | Deutz TD2.9L4 |
| Engine Description | 4 Cylinder Turbocharged Water Cooled Diesel Engine |
| Engine Horsepower | 65.7 hp (49.0 kW) |
| Engine Block Size & Displacement | 178 cu. in. (2.9 L), Bore x Stroke - 3.62 in x 4.33 in (92 mm x 110 mm) |
| Emissions Rating | US EPA Tier 4 Final |
| High Idle Operating Speed @ Rated Output | 1800 |
| Low Idle Operating Speed | 1525 |
| Fuel Tank Size (US gal.) | 25 US gal. |
| Fuel Tank Size (L) | 94.6 L |
| Oil Capacity (qts.) | 9.0 qts. |
| Oil Capacity (L) | 8.5 L |
| Coolant Capacity (US gal.) | 2.5 US gal. |
| Coolant Capacity (L) | 9.5 L |
| Air Compressor Brand/Model | VMAC S700162 |
| Air Compressor Description | Belt Rotary Screw |
| Air Compressor Output | 60 cfm @ 100 psi (1.7 m³/min @ 6.9 bar) |
| Air Compressor Max System Pressure | 150 psi (10.3 bar) |
| Air Compressor Protections | Safety Relief Valve High Temp Shutdown |
| Air Compressor Oil Capacity (US gal.) | 1.1 US gal. |
| Air Compressor Oil Capacity (L) | 4.0 L |
| Typical Application | Construction Mining Railroad Maintenance Construction & Field Erection Maintenance & Repair Offshore Oil & Gas Power Generation Shipbuilding Structural Fabrication Structural Welding |
| Warranty | 3 Years Parts and Labor - Engine warranted separately by engine manufacturer. Compressor warranted separately by compressor manufacturer. |
