The Lincoln APEX 30S HELIX M627 TIG Ready-Pak (K52285-1) is Lincoln Electric's complete orbital GTAW system for production pipe and tube welding — engineered for operators who need precision, repeatability, and speed that handheld TIG cannot consistently deliver. Combining the APEX 30S weld controller with the HELIX M627 orbital weld head, a full set of pipe shoes, and all required consumables in a single package, the K52285-1 is the fastest path to mechanized orbital welding on pipes ranging from 1.5" to 6" nominal diameter.
- Low radial clearance: 2.87" (72.9 mm). The HELIX M627's tight radial clearance is its defining advantage for industrial installations. Most orbital weld heads require 4" or more of radial clearance — limiting their use in congested pipe racks, near structural steel, or in confined maintenance access points. The M627's 2.87" clearance enables mechanized orbital welding in the tight clearances typical of process plant, pharmaceutical, semiconductor, and power generation facilities.
- Latest-generation digital motor control — zero setup calibration. The HELIX M627 uses advanced digital motor drive for precise travel speed and true oscillation control without the calibration setup required by older analog orbital weld head systems. The head delivers consistent, repeatable motor performance from the first arc strike without operator calibration at the start of each shift.
- AutoPilot and Auto-Sectors technology. AutoPilot automates arc sequencing based on weld position — as the weld head rotates from flat (6 o'clock position) through vertical and overhead positions, AutoPilot automatically adjusts amperage, oscillation, and travel speed for each sector to maintain consistent fusion and bead geometry around the full pipe circumference. Auto-Sectors allows programmable independent control of up to 8 weld sectors per pass, enabling per-position parameter optimization for challenging alloy or heavy-wall pipe procedures.
- Water-cooled motor housing and torch. Orbital TIG on stainless pipe often involves extended arc-on times at high amperages on repeated passes. The HELIX M627's water-cooled motor housing and torch assembly prevents the thermal degradation of motor performance and torch wear that affects air-cooled orbital heads during sustained production operation. The Cool Arc 55S Smart Cooler (sold separately) integrates with the APEX 30S controller for automated coolant management.
- Quick-release clamping mechanism. The HELIX M627 attaches and detaches from the pipe with a single-motion clamp release — allowing the operator to reposition the head rapidly between passes or move to the next joint without time-consuming disassembly. In production pipe spool fabrication, rapid head repositioning is a significant productivity factor.

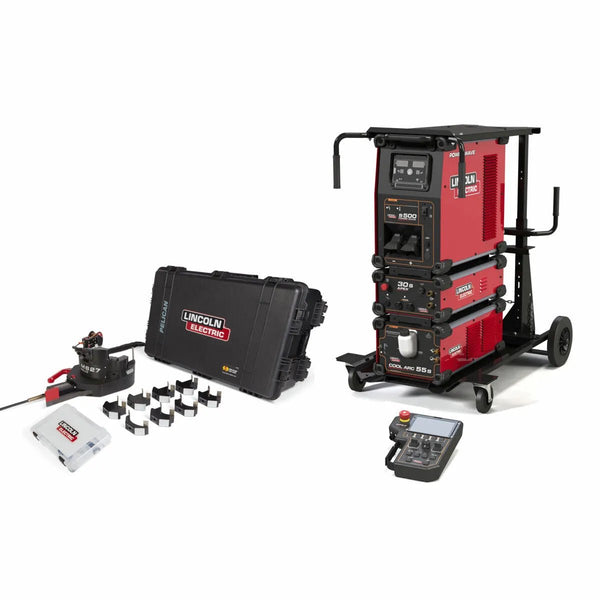

- Complete Ready-Pak — ready to weld on day one. The K52285-1 includes the HELIX M627 weld head, APEX 30S controller, durable storage case, all shoes to weld pipe from 1.5" to 6" nominal, and a full consumable set. No additional procurement required except power source (Power Wave S500 recommended) and shielding/purge gas.
- Full Lincoln Electric mechanized welding support. The APEX 30S HELIX M627 is backed by Lincoln Electric's mechanized welding application engineering team, factory training programs, and global service network — critical for operators qualifying weld procedures to ASME Section IX, AWS D10.12, or process plant piping code requirements.
| SKU / Model | K52285-1 / APEX 30S HELIX M627 TIG Ready-Pak |
| Weld Process | Orbital GTAW (TIG) — autogenous or wire-fed |
| Controller | APEX 30S Orbital Weld Controller |
| Weld Head | HELIX M627 Clamp-On Orbital Weld Head |
| Radial Clearance | 2.87 in (72.9 mm) — low-clearance design for congested installations |
| Pipe Diameter Range | 1.5" – 6" nominal pipe size (using included shoe set) |
| Torch Cooling | Water-cooled (motor housing and torch assembly) |
| Motor Control | Digital — precision travel speed and oscillation, zero calibration |
| AutoPilot | Yes — automatic per-position parameter adjustment during rotation |
| Auto-Sectors | Yes — up to 8 programmable sectors per pass for per-position control |
| Compatible Power Source | Power Wave S500 (recommended); other CC/CV Lincoln S-Series sources |
| Input Voltage (Controller) | Per APEX 30S controller spec — refer to Lincoln Electric mechanized welding documentation |
| Duty Cycle | Production-rated — water-cooled for extended arc-on times |
| Weld Wire Compatibility | 316L precision layer-wound orbital TIG wire and standard cut-length TIG rod formats |
| Condition | New — Lincoln Electric K-prefix (factory-new) |
| Warranty | Standard Lincoln Electric new equipment warranty — contact WeldingMart for current terms |
- HELIX M627 Orbital Weld Head
- APEX 30S Orbital Weld Controller
- Durable transport and storage case
- Full shoe set — all required shoes for 1.5" through 6" nominal pipe sizes
- Full consumables kit to start orbital TIG immediately on delivery
- Interconnecting cables between controller and weld head
- Operator's manual and weld procedure documentation
- Note: Power source (Power Wave S500 recommended), Cool Arc 55S water cooler, and shielding/purge gas are not included in this Ready-Pak. Contact WeldingMart for a complete system quotation including power source.
The APEX 30S HELIX M627 integrates with Lincoln Electric's mechanized welding ecosystem and requires compatible consumables and support equipment:
- Orbital TIG Filler Wire — 316L precision layer-wound orbital TIG wire is the industry standard for stainless pipe orbital welding. Layer-wound wire (vs. random-wound MIG wire) is required for orbital TIG feeders to ensure consistent feed tension through the weld head's internal guide path. Also available: ER70S-2 layer-wound for carbon steel orbital TIG, ERTi-2 for titanium pipe, and ER308L for 304/304L stainless pipe applications.
- Shielding Gas & Purge Gas Regulators — Orbital stainless pipe TIG requires both shielding gas (argon or argon/helium blend at the arc) and purge gas (pure argon introduced inside the pipe to protect the root pass from oxidation). CGA-580 dual-stage argon regulators for consistent shielding flow; inline purge gas dams and inflatable plugs for ID purging on stainless and duplex pipe welds.
- Orbital TIG Consumables — 2% ceriated tungsten in the head-specified diameter; gas lens collet bodies for improved shielding coverage on the root pass (critical for stainless and duplex orbital welds that must meet ASME Section IX surface roughness and porosity criteria); replacement torch parts for the HELIX M627.
- TIG Torch Accessories — Spare torch heads, flexible necks, and water-cooled torch bodies compatible with the HELIX M627's torch interface; trailing shield cups and dragging gas lenses for titanium orbital welding requiring extended shielding coverage beyond the primary cup.
The APEX 30S HELIX M627 serves industries where orbital TIG welding is required or preferred over manual TIG for quality, traceability, and throughput reasons:
- Process plant piping — chemical, petrochemical, and refining. ASME B31.3 process piping in stainless steel, duplex stainless, and chrome-moly alloys requires full-penetration welds with radiographic (X-ray) or ultrasonic inspection. Orbital TIG with AutoPilot and Auto-Sectors produces highly consistent, reproducible root and fill passes that reduce reject rates vs. manual TIG on production spool fabrication. Weld records stored in the APEX 30S controller support traceability documentation required for ASME pressure piping compliance.
- Pharmaceutical and biotech — stainless sanitary pipe systems. ASME BPE (Bioprocessing Equipment) standard requires sanitary TIG welds on 316L stainless tubing with ID surface finish typically Ra <25 µin (0.6 µm). Orbital TIG is the production-standard process for BPE-compliant pipe welds — consistent arc parameters and autogenous fusion welding (no filler, no inclusions) on clean-tube systems. The HELIX M627's low radial clearance is critical in pharmaceutical facility installations where pipe racks and equipment are closely spaced.
- Semiconductor and microelectronics — high-purity gas distribution. Semiconductor fabs use electropolished 316L stainless tubing for ultra-high-purity (UHP) gas distribution systems where particle counts in the low ppb range are required. Orbital TIG autogenous root welds on EP tubing must produce smooth, concave ID weld beads with no undercutting, porosity, or cold laps that would trap particles. The APEX 30S HELIX M627 with proper purge setup produces the repeatable, traceable weld quality required for SEMI standards compliance.
- Power generation — boiler tube and heat exchanger piping. ASME Section I and Section VIII boiler and pressure vessel tube-to-tube and tube-to-header welds on P1, P5, and P9 chrome-moly alloys benefit from orbital TIG's thermal consistency. Maintaining consistent heat input pass-to-pass is critical for chrome-moly alloys where over-temperature HAZ microstructure negatively affects creep life. Auto-Sectors allows operators to program per-position current adjustments for vertical and overhead sectors where gravity affects the molten puddle on heavy-wall tube orbital welds.
- Nuclear and defense — critical pressure boundary welds. Orbital TIG is widely used for nuclear QA Level 1 and defense pressure boundary pipe welds where weld procedure qualification (WPS/PQR), welder qualification, and per-weld traceability documentation are mandatory. The APEX 30S controller's built-in weld data logging provides per-weld parameter records (current, speed, voltage, gas flow per sector and pass) — a documentation infrastructure that manual TIG cannot replicate for code-quality nuclear pipe work.
No — the K52285-1 includes the HELIX M627 orbital weld head, the APEX 30S weld controller, the full pipe shoe set (1.5"–6" nominal), consumables, and the transport case. The power source — Lincoln Electric recommends the Power Wave S500 for this system — is a separate purchase. Contact WeldingMart for a complete APEX 30S HELIX M627 system quotation including the Power Wave S500 and Cool Arc 55S water cooler.
The K52285-1 Ready-Pak includes shoes for 1.5" through 6" nominal pipe sizes. Additional shoes for pipe sizes outside this range are available from Lincoln Electric. The HELIX M627 is also available in larger weld head configurations (M85, M155, and M627 represent different diameter ranges within the HELIX family) — contact Lincoln Electric mechanized welding for large-diameter pipe orbital welding requirements above 6" nominal.
AutoPilot is Lincoln Electric's proprietary orbital weld sequencing system that automatically adjusts welding parameters — amperage, oscillation width, dwell times, and travel speed — as the weld head rotates from the flat position at the bottom (6 o'clock) through vertical (3 and 9 o'clock) to overhead (12 o'clock). Gravity, puddle shape, and surface tension change significantly as position changes during a full pipe orbit. AutoPilot compensates for these changes automatically, maintaining consistent fusion width and penetration around the full pipe circumference without operator intervention during the weld cycle.
Orbital TIG consistently produces lower reject rates than manual TIG on code-quality pipe welds. Studies and field data from Lincoln Electric and independent qualification records consistently show orbital TIG achieving radiographic (RT) reject rates below 0.5% on qualified procedures, compared to typical manual TIG field reject rates of 2–5% on the same pipe and alloy. The advantage comes from parameter consistency — orbital TIG delivers the same current, speed, gas flow, and oscillation for every arc of every weld, regardless of operator fatigue, posture, or experience variation. Code-quality manual TIG pipe welding remains viable, but for production pipe shops and facility contractors, orbital TIG improves throughput and reduces rework costs.
Yes. The APEX 30S controller supports weld data logging that provides per-pass, per-sector documentation of all essential and supplementary essential variables required under ASME Section IX for mechanized GTAW. Operators can qualify weld procedures (WPS/PQR) using the APEX 30S system on the target pipe material and thickness range, and the controller's data log supports the QA documentation requirements of ASME Section IX, ASME B31.1, ASME B31.3, and most project-specific QA plans for nuclear and defense applications. Contact Lincoln Electric mechanized welding for procedure qualification support services.
