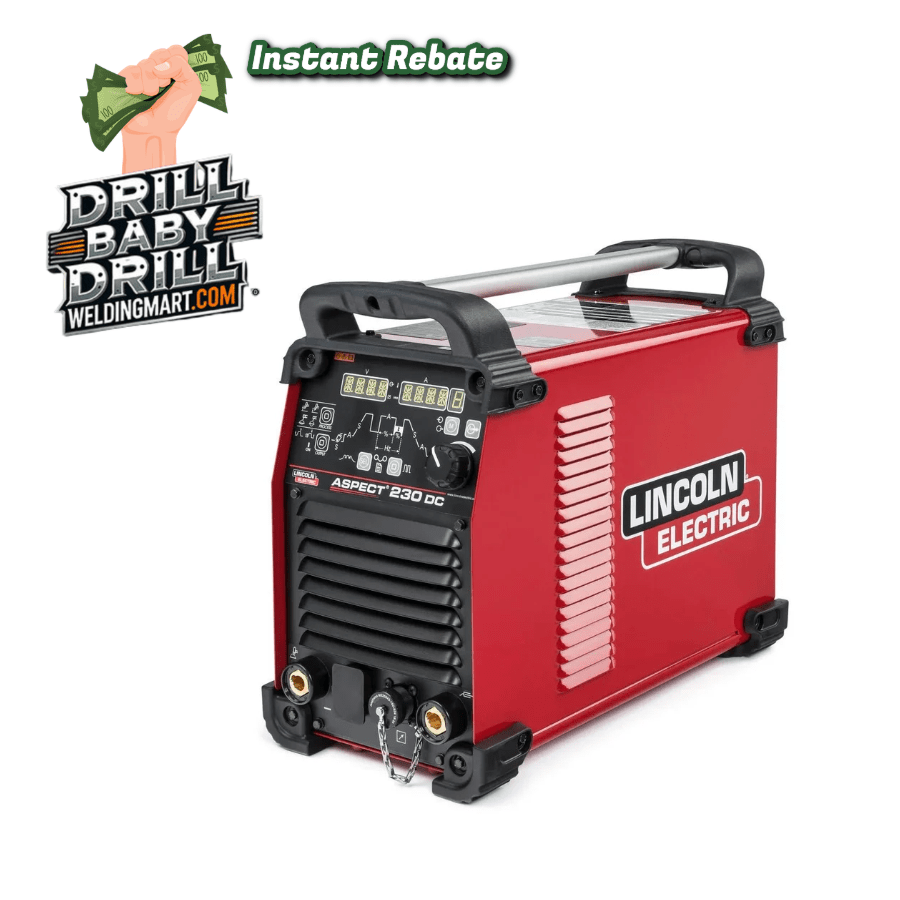

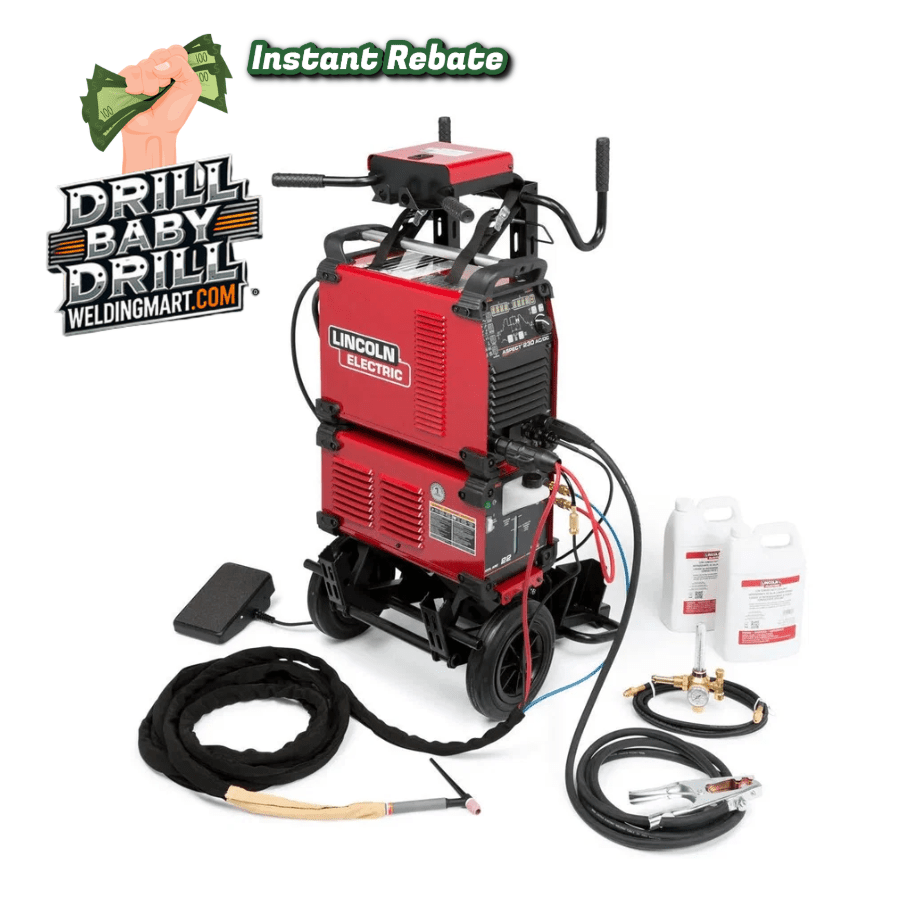

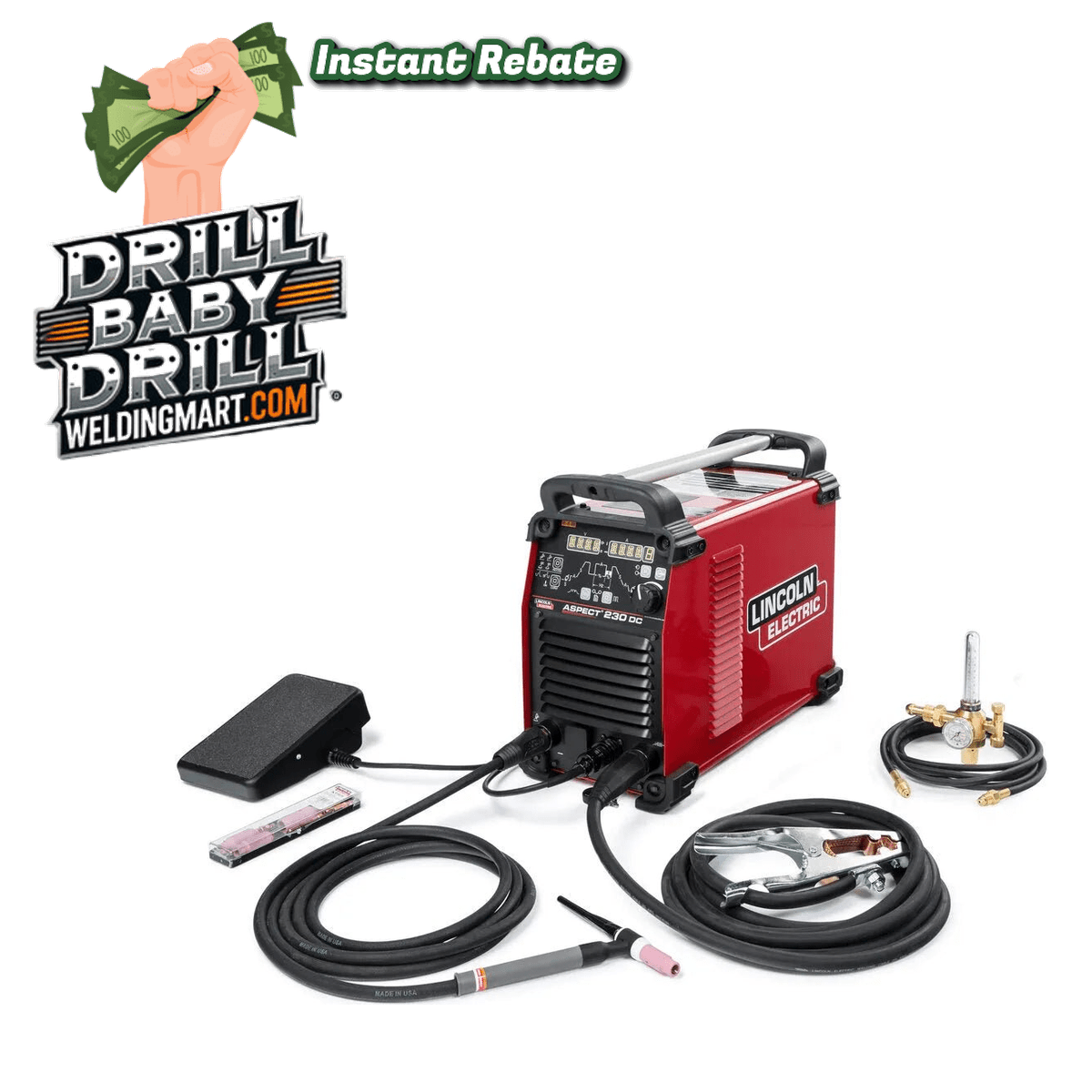

The Lincoln Electric Aspect® 230 AC/DC TIG Welder is a 230-amp inverter-based machine engineered for high-precision GTAW on aluminum, stainless steel, titanium, and carbon steel. With independent AC/DC output, built-in high-frequency (HF) arc start, and advanced pulse controls, the Aspect 230 delivers the arc stability and heat control demanded by aerospace fabricators, motorsport shops, and professional pipe welders. Its compact inverter platform draws 230 V single-phase input, making it equally at home in a production bay or a mobile trailer.
| Specification | Value |
|---|---|
| Model / Part Number | Aspect 230 (K2535-2) |
| Welding Process | AC TIG (GTAW), DC TIG (GTAW), Stick (SMAW) |
| Output — DC TIG | 5–230 A |
| Output — AC TIG | 5–200 A |
| Duty Cycle | 40% @ 200 A (AC); 40% @ 230 A (DC) |
| Input Voltage | 208–230 V, 1-Phase, 60 Hz |
| Max Input Current | 27 A (230 V) |
| Arc Start | High-Frequency (HF); Lift-Arc (DC) |
| Pulse Frequency | 0.1–500 Hz |
| AC Frequency | 20–200 Hz (adjustable) |
| AC Balance Control | 10–90% electrode negative (EN) |
| Post-Flow Gas Control | Yes — adjustable 0–25 sec |
| Output Terminals | Dinse-style 35–50 |
| Weight | 18 lb (8.2 kg) |
| Dimensions (H × W × D) | 9.2 × 5.5 × 16.3 in |
| Certifications | CSA, CE |
Source: Lincoln Electric Aspect 230 product page and AWS A5.12 tungsten electrode standards.
The Aspect 230 excels wherever weld quality, aesthetics, and metallurgical integrity are non-negotiable:
- Aerospace & Defense: Titanium airframe components, aluminum fuel tanks, stainless hydraulic lines — applications that demand clean, repeatable arc starts and precise heat input.
- Motorsport & Automotive: 4130 chromoly chassis tubes, aluminum intercooler end tanks, exhaust headers in 304/321 stainless.
- Food & Pharmaceutical: Sanitary 316L stainless tubing and vessels require full-penetration, crevice-free TIG beads — the AC/DC selector and fine amperage control make this straightforward.
- Pipe & Structural Fabrication: Root passes on P91 chrome-moly pressure pipe with DC TIG; structural aluminum (5083/5086) using AC TIG.
- Art & Custom Fabrication: Thin-gauge aluminum sculpture, stainless architectural panels, copper decorative work.
When to choose AC TIG: Select AC output for aluminum, magnesium, and their alloys. The AC cleaning action removes the tenacious aluminum oxide layer on the electrode-positive half-cycle while the electrode-negative half-cycle deposits heat into the base metal. Dial the Aspect 230's AC Balance to 70–75% EN for most 5xxx and 6xxx alloys; increase EN toward 80–85% for heavily oxidized castings.
When to choose DC TIG: Use DC electrode-negative (DCEN) for stainless steel, titanium, carbon steel, nickel alloys, and copper. DC delivers a focused, penetrating arc with minimal electrode heat. Engage HF start to avoid tungsten contamination on AC-susceptible materials.
Pulse TIG for thin materials: Enable the pulse function (0.1–500 Hz range) when welding thin-gauge sheet (under 0.090 in / 2.3 mm). Pulse reduces average heat input, minimizing distortion on stainless and aluminum. Low-frequency pulse (1–2 Hz) creates the "stacked-dime" bead appearance prized in motorsport and exhaust fabrication.
Selecting the right tungsten: Pair the Aspect 230 with Lincoln Tri-Mix 1/8 in tungsten for AC aluminum work; use 2% lanthanated or ceriated electrodes for DC steel and stainless. See our full TIG rod and consumables guide and the TIG welders collection for compatible accessories.
Can the Lincoln Aspect 230 weld aluminum without a spool gun?
Yes. The Aspect 230 is a TIG welder, not a MIG machine, so no spool gun is needed. Feed aluminum filler rod (ER4043 or ER5356) by hand in the traditional TIG manner while the machine delivers AC output to break down the aluminum oxide layer. Spool guns are a MIG/GMAW accessory and are not relevant to TIG welding.
What input power does the Aspect 230 require?
The Aspect 230 runs on standard 208–230 V, single-phase, 60 Hz service — the same outlet used for a household dryer (NEMA 6-50 or 14-50 receptacle). It draws a maximum of 27 A at 230 V. No three-phase service or electrician upgrade is required for most shop environments. A 40-amp breaker is recommended.
What is the duty cycle at 200 amps AC?
The Aspect 230 is rated at 40% duty cycle at 200 A AC output, meaning you can weld continuously for 4 minutes out of every 10-minute period at that current level. Most manual TIG welding naturally stays within duty cycle limits. For sustained higher-amperage production work, consider the Lincoln Precision TIG 375.
Does the Aspect 230 have high-frequency arc start for AC?
Yes. High-frequency (HF) arc start is standard on the Aspect 230 for both AC and DC TIG modes. HF start eliminates the need to scratch or lift-start the tungsten, keeping it clean and uncontaminated — critical for aluminum work where any tungsten contamination immediately shows in the weld bead. Lift-Arc start is also available for DC electrode-negative applications in locations where HF interference is a concern (near CNC equipment, for example).
What filler rods pair best with the Aspect 230?
For aluminum: ER4043 (general-purpose, lower sensitivity to cracking) or ER5356 (higher strength, better anodizing response). For stainless: ER308L (304/304L base), ER316L (316/316L base), ER309L (dissimilar or high-alloy overlay). For carbon and chrome-moly steel: ER70S-2, ER80S-B2 (P11 pipe), or ER90S-B3 (P22 pipe). Browse the complete TIG filler rod catalog for all compatible alloys.
Is the Lincoln Aspect 230 suitable for pipe welding root passes?
Yes. The Aspect 230's fine amperage resolution (5 A minimum) and HF arc start make it well-suited for root pass TIG on schedule pipe. Use DCEN with an appropriate filler (ER70S-2 for carbon steel, ER80S-B2 for chrome-moly P11, or ER316L for 316 stainless). Purge the backside of the joint with argon to prevent sugaring on stainless and titanium.
