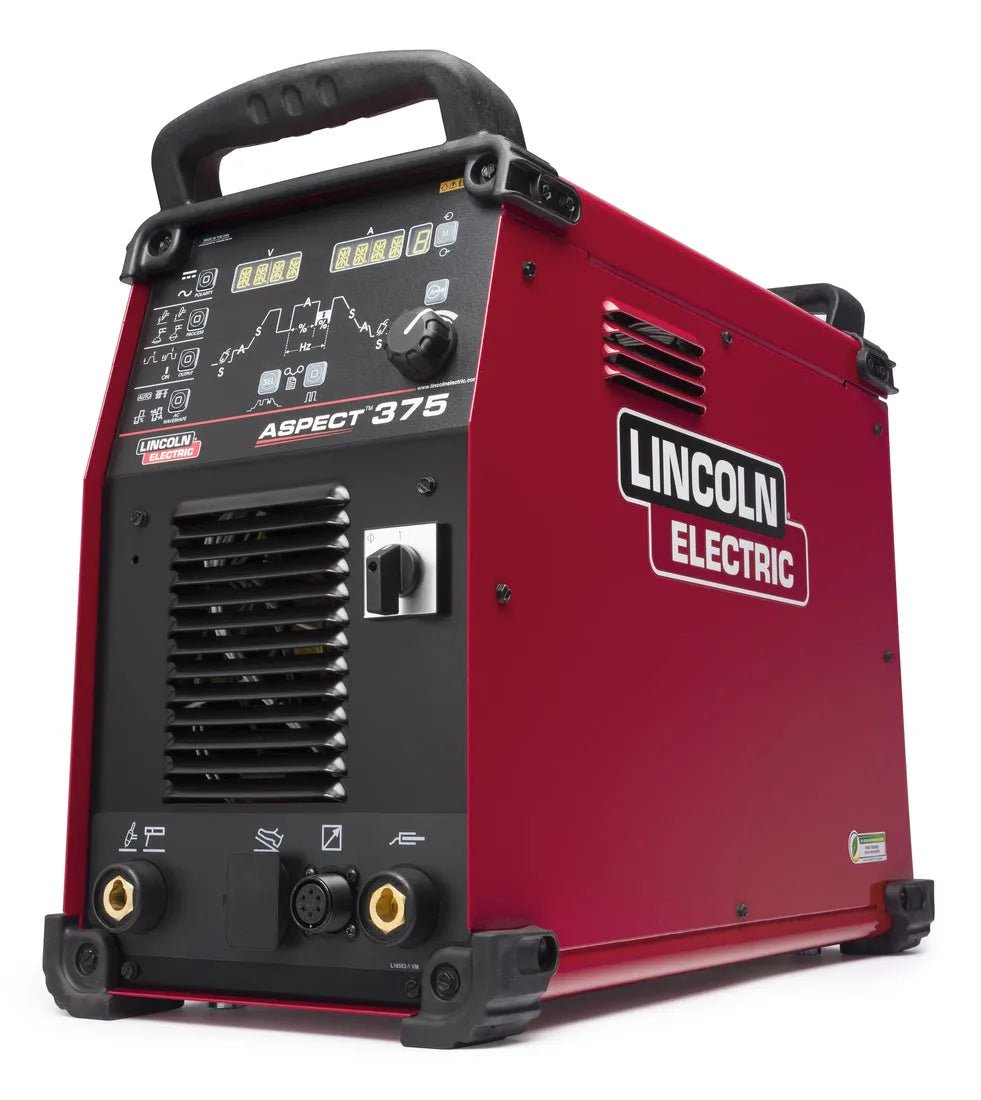

Lincoln Aspect 375 AC/DC - CCC (Not Available in US & Canada) - K3945-2

SKU: K3945-2
$10,544.00
SAVE In-stock Factory Demo available — save $1,845.00 View Factory Demo ›

Financing Options

As low as /mo with.
Loading Affirm Estimate…
Lincoln Elite Dealer
Free Shipping
Lowest Price
The Lincoln Electric Aspect 375 TIG welder offers smooth arc control, fast response, and easy customization for critical welds. Ideal for aerospace, motorsports, shipbuilding, and fabrication, it simplifies aluminum welding with automatic balance and adjustable arc shaping.

Overview

The Lincoln Aspect 375 CCC is engineered for welders who demand uncompromising quality and performance for critical applications. Built to exceed the high standards of aerospace, motorsports, shipbuilding, education, and high-spec fabrication industries, this TIG welding power source provides precise arc control, adaptability, and superior results. The Aspect 375 delivers outstanding arc stability, smooth operation, and fast response times to ensure every weld meets the most rigorous testing requirements with confidence.

Offering both simplicity and advanced customization, the Aspect 375 allows users to activate Intellistart technology for automatic start adjustments — providing softer starts for thin materials and hotter starts for thicker sections. Operators can choose full manual control when required, utilizing AC Wave Shape technology to fine-tune the arc profile. Whether you need deeper penetration, increased cleaning for heavy oxide layers, or enhanced arc control around tight corners, the Aspect 375 adapts easily to meet your welding needs. Combined with AC Auto Balance capability for optimized aluminum welding, this machine offers the versatility and reliability needed for mission-critical welds across demanding industries.

Key Features
  • Effortless arc control with extremely fast arc response for the smoothest, most stable welds.
  • AC Auto Balance technology automatically delivers the ideal mix of cleaning and penetration for aluminum welding.
  • Intellistart technology optimizes arc starts based on material thickness for minimal distortion and improved weld quality.
  • AC Wave Shape control allows precise customization of arc profile, cleaning action, and penetration.
  • Adaptable performance ideal for aerospace, motorsports, shipbuilding, education, and high-precision fabrication sectors.
Specifications

Product Weights & Dimensions

Dimensions (H x W x D): 21 in x 11.8 in x 25.5 in (533 mm x 300 mm x 648 mm)
Net Weight: 110 lbs (49.896 kg)

General Specifications

Input Voltage: 200-600

Input Current:
3 Phase: 60% Duty Cycle: 29/26/15/12/10
3 Phase: 40% Duty Cycle: 27/24/14/11/9
1 Phase: 60% Duty Cycle: 34/31/NA/NA/NA
1 Phase: 40% Duty Cycle: 32/29/NA/NA/NA

Input Hertz: 50/60
Input Phase: 1/3
Input Power: 200-600/1/3/50/60

Mode Icon: CC

Output Range:
3 Phase: 2-375A
1 Phase: 2-250A

Polarity: AC/DC

Applications

Typical Applications:
• Construction
• Automotive
• Brewery
• Distillery
• General Fabrication
• Heavy Fabrication
• Maintenance & Repair
• Marine Applications
• Marine Fabrication & Repair
• Oil & Gas
• Pharmaceutical Equipment
• Power Generation
• Power Plants
• Repair Welding
• Shipbuilding

Warranty

Warranty: 3 Years
