Lincoln Chopper Heatsink Assembly - 9SL11845-3 / L11845-3

Product Overview

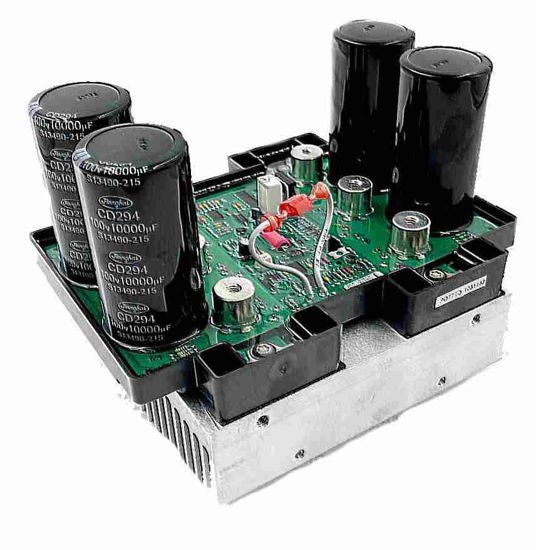

Lincoln L11845-3 Chopper Heatsink Assembly

Lincoln Electric L11845-3 is the manufacturer part number for this chopper heatsink assembly. WeldingMart orderable SKU: 9SL11845-3.

Verified product details

• Manufacturer: Lincoln Electric
• Manufacturer part number: L11845-3
• Orderable SKU: 9SL11845-3
• Component type: Chopper Heatsink Assembly
• Verified current catalog fitment: Ranger 305 and Red-D-Arc code-specific applications listed below

Verified fitment

The current catalog record lists these machine/code combinations: Ranger 305D – 12666, 11909, 11459, 11458; Ranger 305D Kubota – 12680, 11457; Ranger 305D CE – 12681, 12486, 11587; Ranger 305G – 12667, 12203, 12097, 11801, 11738, 11676; Ranger 305 LPG – 12669, 11677; RANGER 305 LPG (EQUIPMENTSHARE) – 13522; Ranger 305 LPG Sunbelt – 13173; Ranger 305 LPG Kohler – 13171; Ranger 305G EFI – 12206, 12157; Ranger 305G EFI Fall Camo – 12653; Ranger 305G EFI Kohler – 13172; Ranger 305G Sunbelt – 13170; Ranger 305G Kohler - 13163; RedDArc DX300E – 12484; RedDArc DX300E CE - 11527; RedDArc GX300 – 12204, 12098, 11802, 11795, 11740, 11678; RedDArc GX300 CSA – 13174. Match both model and code number. This list does not authorize fitment to unlisted codes.

Supersession boundary

An earlier L11845-1 listing is described by a third-party distributor as changed to L11845-3, but Lincoln first-party confirmation was not found; no supersession claim is proposed.

Before you order

1. Record the complete machine model and code number.
2. Confirm that the Lincoln parts record for that exact code calls for L11845-3 or SKU 9SL11845-3.
3. Match every suffix and revision character; nearby base numbers may identify a different assembly.
4. If the removed part has a different number, pause and verify the relationship before purchase or installation.

Need help? Use the Lincoln Electric service-parts finder with the model, code number and removed-part number ready. Browse service parts for related components.

Frequently asked questions

What number should I order?

Order WeldingMart SKU 9SL11845-3 for Lincoln part L11845-3.

How do I confirm fitment?

Match the machine model and code number to the Lincoln parts record, then confirm the complete part number including its suffix.

Does this draft claim a supersession?

No. No predecessor or successor is claimed without an authoritative source that states the relationship.

Can I order from the photo alone?

No. Use the exact part number and the machine code; photos are not a fitment control.
