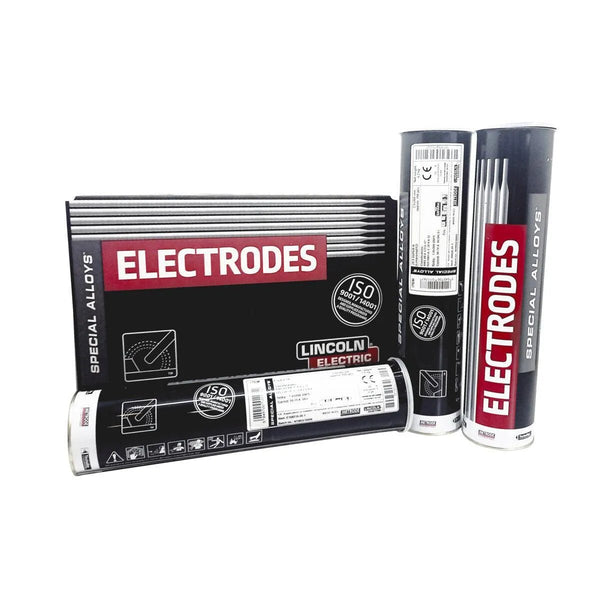

Lincoln Chromet 5 Stick (SMAW) Welding Rod

Product Overview

The Lincoln Chromet 5 Stick (SMAW) Welding Rod is a 5% chromium, ½% molybdenum (5Cr-½Mo) low-hydrogen basic-coated SMAW electrode classified to AWS A5.5M E8015-B6 H4. Chromet 5 is specifically engineered for high-integrity welding of creep-resisting steels in elevated-temperature service — used in power generation, petrochemical refinery piping, and process plant applications requiring resistance to creep, oxidation, and sulphur-bearing environments at service temperatures up to 600°C.

Specifications

• Classification: E8015-B6
• AWS Classification: AWS A5.5M E8015-B6 H4
• ISO: ISO 3580-A E CrMo5 B 3 2 H5
• Coating: Basic (lime-fluoride) low-hydrogen moisture-resistant
• Polarity: DC+ (DCEP) or AC (OCV: 70V minimum)
• Positions: All positions
• PWHT: 740±15°C / 1h (AWS); 730–760°C / 1h (ISO)
• Preheat: 200°C minimum; interpass max 300°C

Applications

High-temperature creep-resisting applications in power generation (boiler superheaters, steam piping, valve bodies), petrochemical refineries handling sulphur-bearing crude oil at 250–450°C, and process plant components requiring 5Cr-½Mo alloy composition. Suitable for P5 grade steels including ASTM A335 P5 and A182 F5.

Key Features

• 5Cr-½Mo alloy (B6) for elevated temperature service up to 600°C (1112°F)
• H4 low-hydrogen — ≤4 mL/100g diffusible hydrogen for crack resistance
• Excellent creep resistance for long-term high-temperature structural integrity
• High-purity low-carbon core wire with controlled trace elements
• Compatible with PWHT at 740°C for optimum creep properties
• Certified AWS A5.5M E8015-B6 H4

Mechanical Properties (After PWHT 740°C/1h — Typical)

Available Diameters & Package Sizes

Product Family (Combined Listing)

This Combined Listing parent page aggregates all package sizes and diameters for the Lincoln Chromet 5 Stick (SMAW) Welding Rod product family. Use the variant selector or browse individual child listings to find your specific size and packaging configuration.
