What is the AWS classification of the Lincoln Chromet 5 Stick SMAW Welding Rod 3.2 X 350mm 12.6 kg Can - CHROMET5-32-1?

The Lincoln Chromet 5 Stick SMAW Welding Rod 3.2 X 350mm 12.6 kg Can - CHROMET5-32-1 carries AWS E8015-B6 H4 classification. The AWS electrode classification system encodes the electrode's minimum tensile strength (first two digits, in ksi), recommended positions (third digit), and coating/current type (fourth digit). For example, E7018 = 70 ksi tensile minimum, all-position, iron powder low-hydrogen coating, AC or DC+.

What diameter is the Lincoln Chromet 5 Stick SMAW Welding Rod 3.2 X 350mm 12.6 kg Can - CHROMET5-32-1 available in, and what amperage does each require?

Match electrode diameter to base metal thickness: 3/32 in for thin sections, 1/8 in for general structural work (the most common all-purpose size), 5/32 in or 3/16 in for heavy plate and high-deposition passes. The electrode manufacturer's data sheet specifies the recommended amperage range for each diameter — operating outside that range causes poor fusion or burn-through.

What polarity and current type does the Lincoln Chromet 5 Stick SMAW Welding Rod 3.2 X 350mm 12.6 kg Can - CHROMET5-32-1 require?

E6010 and E6011 electrodes run on DC+ (direct current, electrode positive) and are designed for cellulosic coatings that generate deep penetrating, fast-freeze arcs — preferred for root passes on pipe and out-of-position work. E6013 runs on AC or DC and is a general-purpose electrode for light fabrication. E7018 is a low-hydrogen iron powder electrode that runs on AC or DC+ — it produces high-quality, low-hydrogen deposits for critical structural and code welding. Never substitute electrode types without understanding the current/polarity requirements.

How should I store low-hydrogen stick electrodes like the Lincoln Chromet 5 Stick SMAW Welding Rod 3.2 X 350mm 12.6 kg Can - CHROMET5-32-1?

Low-hydrogen electrodes (E7018, E7016, E8018, etc.) must be stored in a rod oven at 250–300°F after opening to maintain low hydrogen content. Electrodes that have been exposed to moisture for more than 2–4 hours should be re-dried per AWS D1.1 recondition procedures (typically 700–800°F for 1 hour for low-hydrogen electrodes). General-purpose (non-low-hydrogen) electrodes like E6013 are less moisture-sensitive but should still be kept dry. Never use visibly damp or rusted electrodes.

What package sizes is the Lincoln Chromet 5 Stick SMAW Welding Rod 3.2 X 350mm 12.6 kg Can - CHROMET5-32-1 available in?

The Lincoln Chromet 5 Stick SMAW Welding Rod 3.2 X 350mm 12.6 kg Can - CHROMET5-32-1 is available in 25 lb packages. Individual 1 lb packs suit occasional use; 5 lb and 10 lb cans are standard shop stock quantities; 50 lb master cartons are used for production and fleet purchasing. Low-hydrogen electrodes are packaged in hermetically sealed metal cans — once opened, transfer to a rod oven immediately to prevent moisture pickup.

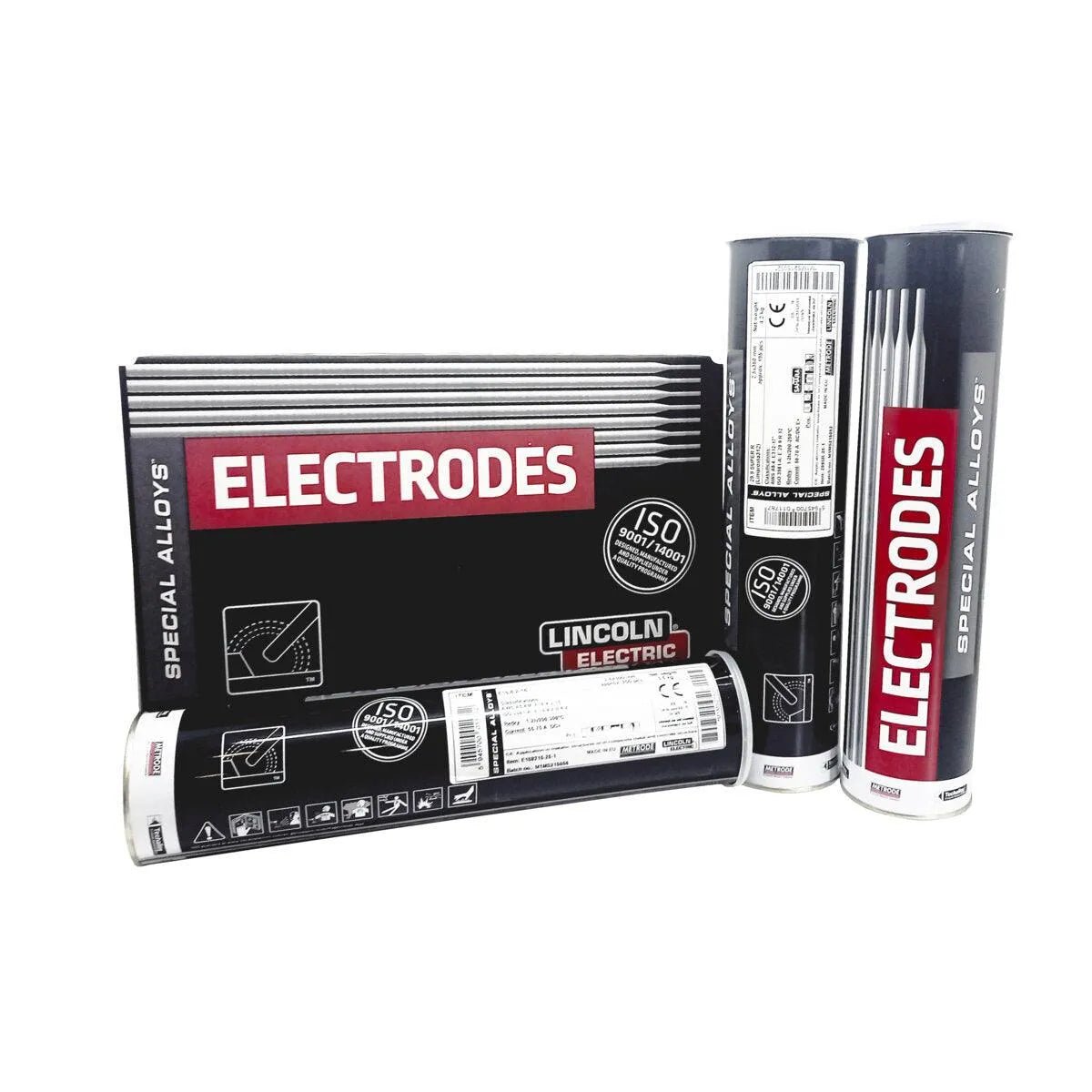

Lincoln Electric Stick Electrode – 12.6 kg

SKU: CHROMET5-32-1

$270.19 ~~$290.05~~

Lincoln Elite Dealer

Free Shipping

Lowest Price

B6 alloyed steel for elevated temperature service up to 600°C (1112°F) designed for high strength and improved corrosion resistance

AWS / Classification: E8015-B6 H4

Overview

Low Alloy, Low Hydrogen • AWS A5.5 E8015-B6 H4

Features

B6 alloyed steel: 5% chromium, 0.5% molybdenum alloyed steel for elevated temperature service up to 600°C (1112°F)
Designed for high strength and improved corrosion resistance in superheated steam, hot hydrogen gas and high sulphur crude oils
Moisture resistant coating provides low amounts of weld metal hydrogen levels for a superior weld
Weld metal chemistry is low in impurity elements allowing it to respect the X Factor (<15ppm) and J-factor (<120ppm)

Reviews

Q&A

Product Overview

Low Alloy, Low Hydrogen • AWS A5.5 E8015-B6 H4

Features

B6 alloyed steel: 5% chromium, 0.5% molybdenum alloyed steel for elevated temperature service up to 600°C (1112°F)
Designed for high strength and improved corrosion resistance in superheated steam, hot hydrogen gas and high sulphur crude oils
Moisture resistant coating provides low amounts of weld metal hydrogen levels for a superior weld
Weld metal chemistry is low in impurity elements allowing it to respect the X Factor (<15ppm) and J-factor (<120ppm)
