The Lincoln Electric Cored or Solid Wire Drive Roll Kit — KP1505 large-diameter series is designed for high-deposition MIG/GMAW and FCAW applications requiring wire diameters from .068–.072 in (1.7–1.8 mm) through .120 in (3.0 mm). These heavy-gauge roll kits provide the positive traction and feed consistency needed for large-diameter solid and flux-cored wires used in structural fabrication, heavy plate joining, and high-deposition overlay applications.
Large-diameter wires place greater demands on the wire feed system — requiring higher feed force, greater roll surface contact, and precisely matched groove geometry to prevent slippage and maintain the steady wire speed that stable GMAW and FCAW arcs require. The KP1505 large-diameter kits are Lincoln Electric factory-matched components that ensure your feeder performs to specification across the most demanding high-deposition AWS GMAW and FCAW applications.
- KP1505-068 – Drive Roll Kit for Drive Roll Kit .068-.072 in (1.7-1.8 mm) Cored or Solid Wire
- KP1505-5/64 – Drive Roll Kit for Drive Roll Kit 5/64 in (2.0 mm) Cored or Solid Wire

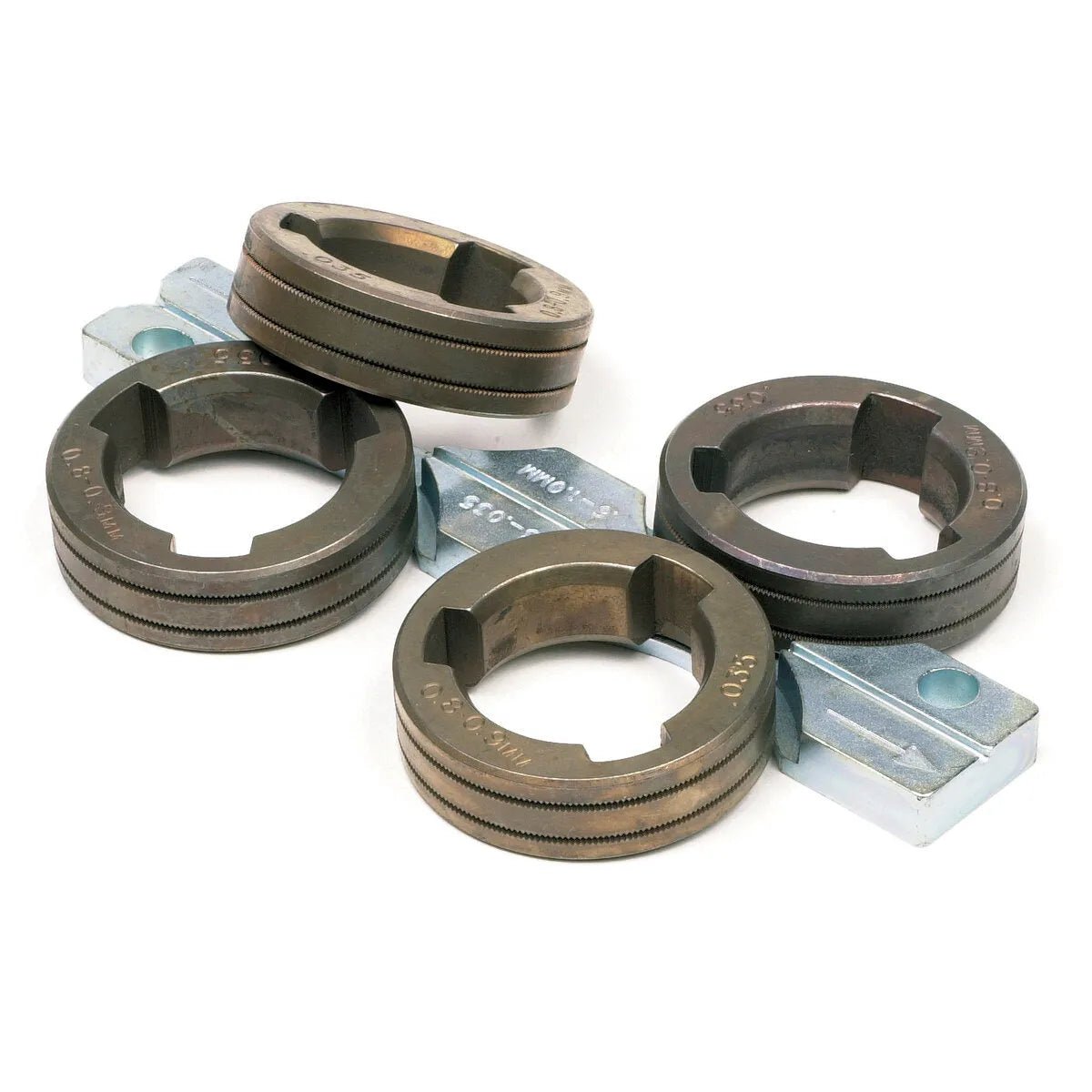

- KP1505-3/32 – Drive Roll Kit for Drive Roll Kit 3/32 in (2.4 mm) Cored or Solid Wire

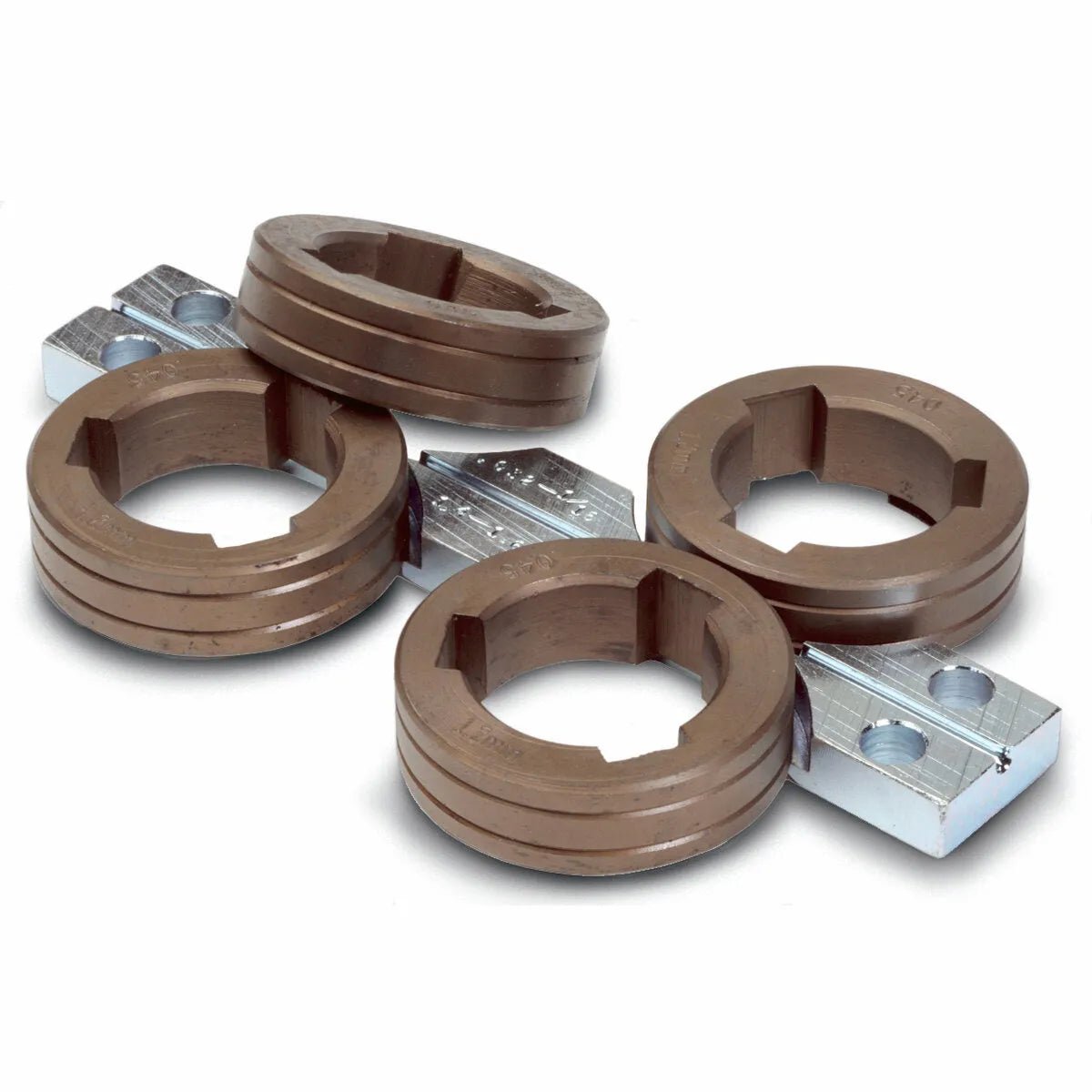

- KP1505-7/64 – Drive Roll Kit for Drive Roll Kit 7/64 in (2.8 mm) Cored Wire
- KP1505-120 – Drive Roll Kit for DRIVE ROLL KIT .120" CORED/SOLID
- V-groove and knurled-groove roll profiles available — matched to solid wire and cored wire requirements respectively
- Wire diameter coverage: .068–.072 in through .120 in (1.7–3.0 mm) — the heaviest gauges for high-deposition production welding
- Compatible with Lincoln Electric wire feeders using the KP1505 specification
- High feed-force capability — supports the increased drive demands of large-diameter wire without slippage
- Supports both GMAW solid wire and FCAW cored wire in a single roll kit family with appropriate groove selection
- Minimal setup time — drop-in replacement for compatible Lincoln Electric feeder configurations
- Heavy structural steel fabrication with large-diameter GMAW and FCAW wire
- Submerged arc welding (SAW) adjacent processes where large electrode diameters are used
- Shipbuilding and offshore platform fabrication with high-deposition requirements
- Heavy equipment and mining machinery manufacture
- Bridge and infrastructure welding with large-gauge consumables
Lincoln Electric KP1505 large-diameter drive roll kits are the factory-specified solution for high-deposition GMAW and FCAW applications where consistent feed of heavy-gauge wire is non-negotiable. With groove profiles matched to both solid and cored large-diameter wires, these kits ensure stable arc performance, reduced downtime from feed interruptions, and maximum productivity in the most demanding heavy fabrication environments.
