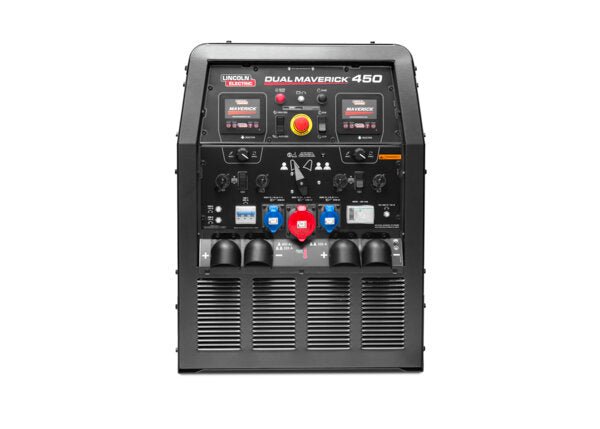

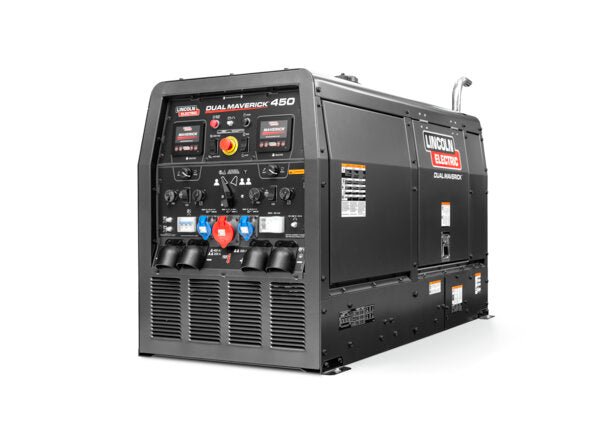

Lincoln Dual Maverick 450 (Perkins) International) K4381-3

SKU: K4381-3
Call for Price
Lincoln Elite Dealer
Free Shipping over $250
Lowest Price
A high speed, diesel engine-driven welder/generator capable of dual or single operator DC multi-purpose welding. The machine features 220 VAC single phase and 380 VAC three phase auxiliary power, a user interface screen for advanced features, and patented Chopper Technology®. Powered by a 26.4 hp Perkins® D403-11 diesel engine.
Overview

Built for the construction site, the pipeline, and the rental fleet, the Dual Maverick® 450 is two complete welders in one. This best-in-class arc welding machine provides substantial power to multiple welding arcs, runs quietly, and promotes fuel savings with variable engine RPM and auto start/stop capabilities. Two operators can easily be set up to weld at the same time, or a single operator can gouge with up to a 3/8 in. (9.5 mm) carbon rod. Additionally, the machine boasts an advanced user interface on two heavy-duty 4.3” weatherproof LCD screens. These easy-to-use setup screens have intuitive user functions to keep things simple.

Features
  • Optimized Operations – Utilizes a single engine to offer two welding arcs with up to 200 amps of output or choose single operator mode for one arc up to 450 amps of output to promote a more efficient welding environment. Save space and make transportation easier moving one machine instead of two!
  • Advanced User Interface – Features two 4.3" weatherproof LCD screens with an intuitive interface to provide easy setup and increased functionality, and automatically notifies operators of upcoming maintenance needs to help keep the machine running at peak performance.
  • Quiet Operation – Designed to run at lower noise levels to allow for vital directions or control-related communication near the welding machine to help promote a safer and more ideal welding environment by reducing worksite noise.
  • Industrial Diesel Engine – Powered by a 26.4 hp, naturally aspirated Perkins® diesel engine for smooth and quiet operation.
Specifications

Specifications

Product Weights & Dimensions

Dimensions (H × W × D)
36.1 in × 27 in × 65 in (917 mm × 686 mm × 1,651 mm)

Net Weight
1,155 lb (524 kg)

General Specifications

Welding Processes

  • Stick (SMAW)
  • Gouging (CAC-A)
  • TIG (GTAW)
  • MIG (GMAW)
  • Flux-Cored Self-Shielded (FCAW-S)
  • Flux-Cored Gas-Shielded (FCAW-G)

Open-Circuit Voltage
90 peak OCV at 3,000 RPM

Number of Operators per Machine
2

Machine Technology & Connections

Ingress Protection Rating
IP23

IEC Rating — Single Output
350 A / 34 V / 100% duty cycle at 104°F (40°C)

IEC Rating — Dual Output
210 A / 28.4 V / 100% duty cycle at 104°F (40°C)

Rated Gouging Carbon Diameter
3/8 in (9.5 mm)

Output Range by Mode

Single Mode

  • Stick (SMAW): 50–450 A
  • Downhill Pipe (SMAW): 50–450 A
  • Touch Start TIG (GTAW): 20–255 A
  • CV-Wire (GMAW, FCAW-S, FCAW-G): 13–40 V
  • Arc Gouging (CAC-A): 100–450 A

Dual Mode

  • Stick (SMAW): 30–255 A
  • Downhill Pipe (SMAW): 30–225 A
  • Touch Start TIG (GTAW): 20–250 A
  • CV-Wire (GMAW, FCAW-S, FCAW-G): 13–40 V
  • Arc Gouging (CAC-A): 100–250 A

Engine-Driven Welder

Single-Phase Auxiliary Output
10,000 W continuous, 220 V

Three-Phase Auxiliary Output
13,000 W continuous, 380 V

Auxiliary Output Frequency
50 Hz

Receptacle Types

  • IEC 60309 Blue, 2P + Ground
  • IEC 60309 Red, 2P + Neutral + Ground

Engine Brand & Model
Perkins® 403D-11

Engine Description
3-cylinder naturally aspirated, water-cooled diesel engine

Engine Horsepower
26.4 hp (19.7 kW)

Engine Block Size & Displacement
69.0 cu. in. (1.1 L)

Bore × Stroke
3.0 in × 3.2 in (71 mm × 81 mm)

Emissions Rating
U.S. EPA Tier 4i

High-Idle Operating Speed at Rated Output
3,000 RPM

Low-Idle Operating Speed
2,100 RPM

Sound Rating at 23 ft (7 m)

  • 69 dBA at low idle
  • 74 dBA at high idle

Fuel Tank Capacity
20 U.S. gal. (75.7 L)

Oil Capacity
4.6 qt (4.4 L)

Coolant Capacity
5.0 U.S. gal. (18.9 L)

Applications

  • Construction
  • Construction and field erection
  • Maintenance and repair
  • Offshore
  • Oil and gas
  • Pipeline and offshore
  • Piping
  • Power generation
  • Structural fabrication
  • Structural welding

Warranty

3 Years Parts and Labor
Engine warranted separately by the engine manufacturer.
