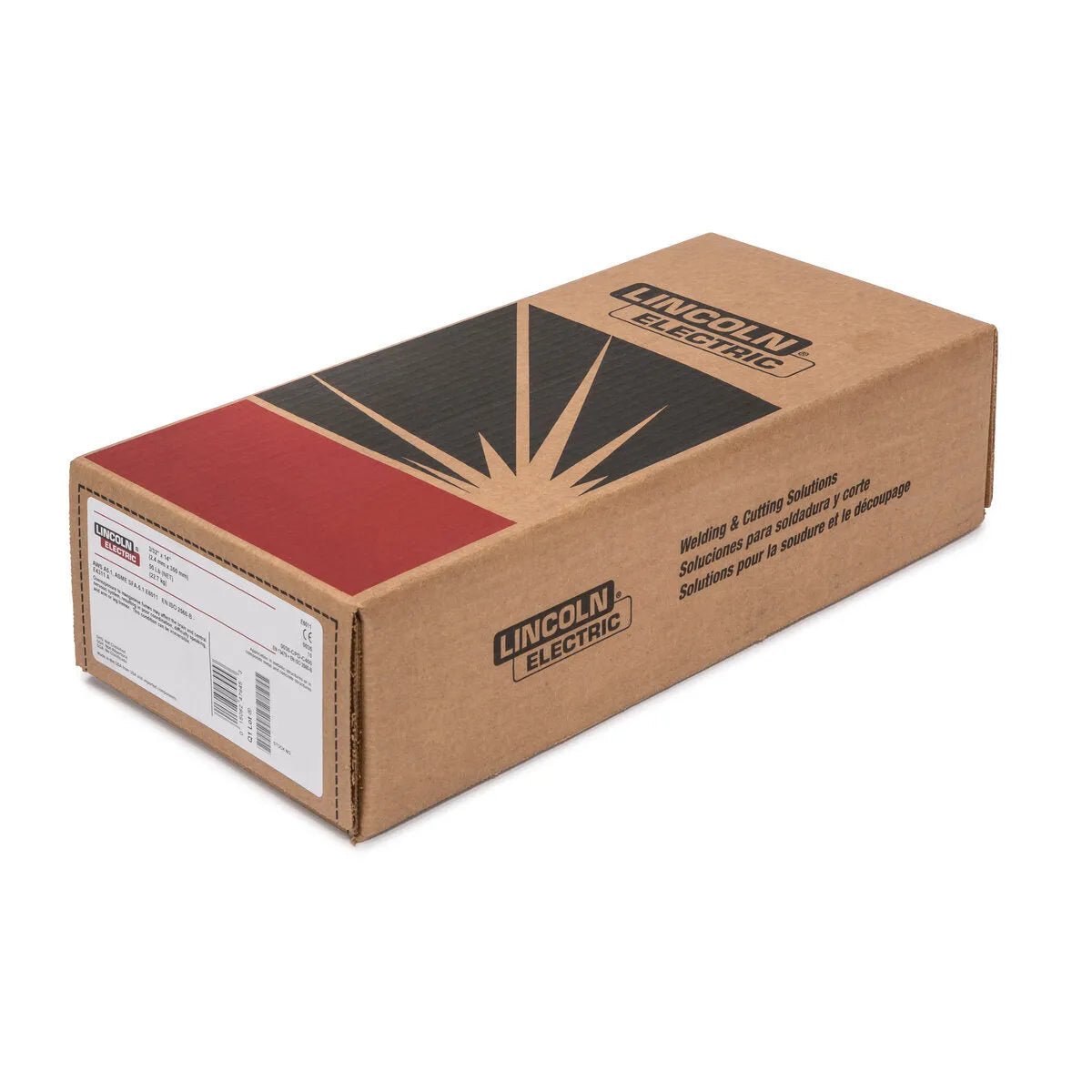

Lincoln ED010170 Fleetweld 37 Stick SMAW Welding Rod 5/64X12in 50 lb Carton

SKU: ED010170
$377.22
Lincoln Elite Dealer
Free Shipping
Lowest Price
Mild Steel, Rutile • AWS E6013
AWS / Classification: E6013
Overview
Lincoln ED010170 Fleetweld 37 Stick SMAW Welding Rod, 5/64x12 in, 50 lb Carton

Mild steel rutile stick electrode designed for use with small AC welders with low OCV

Features

• Operable with low amperages on sheet metal
• Excellent bead appearance
• Slag control accommodates vertical down welding

Specifications
FeatureValue
CONFORMANCES SPECIFICATIONCLASSIFICATION
AWS AWS A5.1E6013
ISO ISO 2560-BE4313 A
ABS AWS A5.1E6013
BV BV - Chapter 51
CWB CSA W48E4313
DNV-GL DNV - 2.91
LR LR - Chapter 111M
Classification Yield Strength @ 0.2% Offset, MPa (ksi)Tensile Strength, MPa (ksi)Elongation, %Hardness Rockwell B
E6013 Requirement 330 (48) min.410 (60) min.17 min.
Typical Result, As-welded 400-460 (57-66)460-540 (66-79)24-3277-87
Classification %C%Cr%Mn%Mo%Ni%P%S%Si%V
E6013 Requirement 0.20 max.0.20 max.1.20 max.0.30 max.0.30 max.1.00 max.0.08 max.
Typical Result 0.06-0.080.02-0.040.35-0.440.01 max.0.01-0.040.010-0.0180.005-0.0130.20-0.280.01-0.02
Diameter Polarity⁽¹⁾Current, Amps
5/64 in (2.0 mm) AC50-80
5/64 in (2.0 mm) DC±45-75
3/32 in (2.4 mm) AC75-115
3/32 in (2.4 mm) DC±70-105
1/8 in (3.2 mm) AC110-140
1/8 in (3.2 mm) DC±100-135
5/32 in (4.0 mm) AC160-200
5/32 in (4.0 mm) DC±145-180
3/16 in (4.8 mm) AC205-260
3/16 in (4.8 mm) DC±185-235
Note
⁽¹⁾ Preferred polarity is listed first.
LECO Diameter 5/64 x 12 in (2.0 x 300 mm)
LECO Package 50 lb Carton
Diameter (in) 5/64
Length (in) 12
