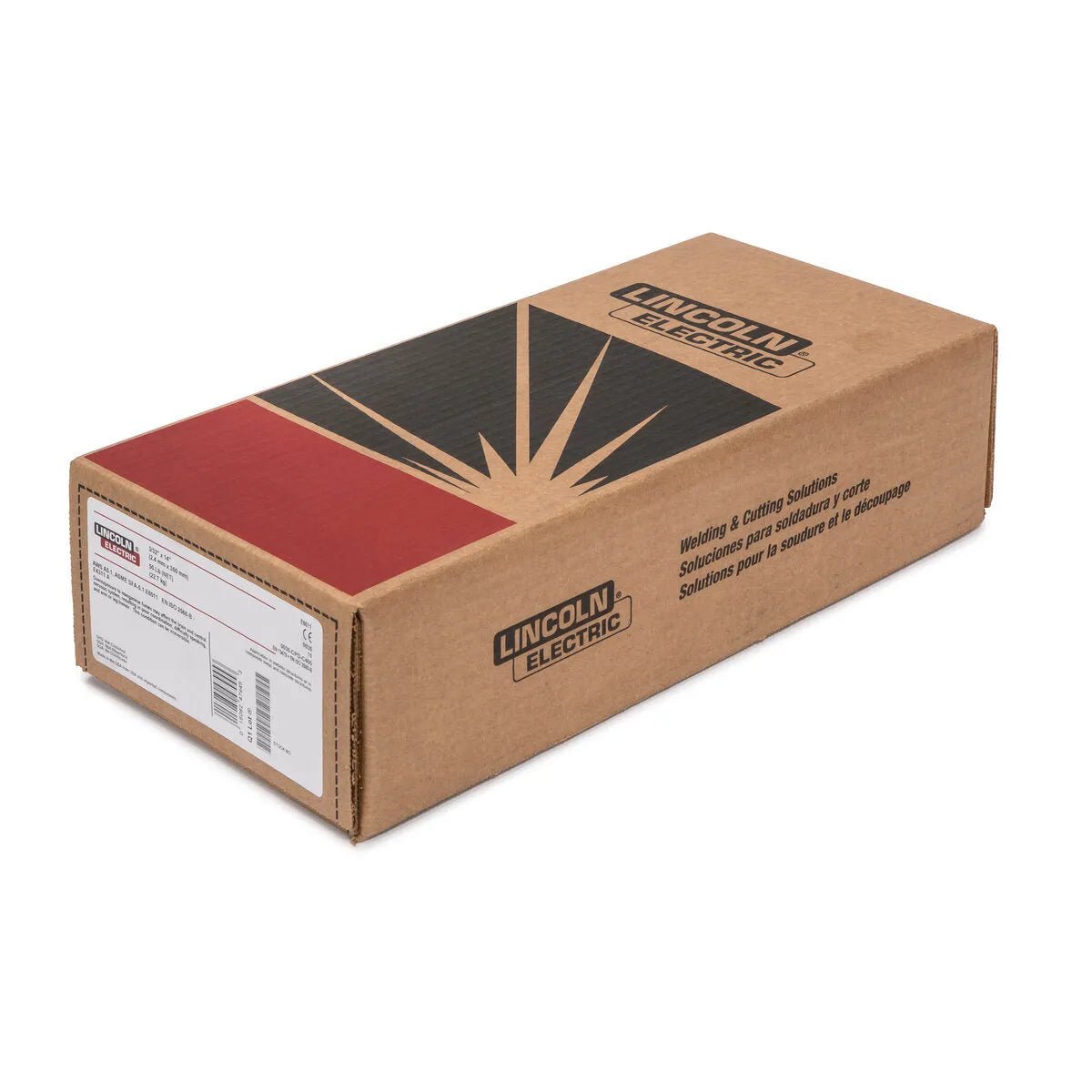

Lincoln ED010189 Fleetweld 47 Stick SMAW Welding Rod 3/32X14in 50 l...
Specifically designed for vertical down welding of sheet metal and ornamental iron
• Good restrike characteristics
• Smooth and transfer and good wetting and low penetration
• Operates on low amperages
• High deposition rates
• Excellent operator appeal
| Feature | Value |
|---|---|
| CONFORMANCES | SPECIFICATIONCLASSIFICATION |
| AWS | AWS A5.1 E7014 |
| ABS | AWS A5.1 E7014 |
| BV | BV - Chapter 5 1 |
| CWB | CSA W48 E4914 |
| DNV-GL | DNV - 2.9 1 |
| LR | LR - Chapter 11 1M |
| Classification | Yield Strength @ 0.2% Offset, MPa (ksi)Tensile Strength, MPa (ksi)Elongation, %Charpy V-Notch, J (ft-lbs) @ -30°C (-20°F) |
| E7014 Requirement | 400 (58) min.480 (70) min.17 min. |
| Typical Result, As-welded | 410-470 (60-69)490-540 (71-78)18-2927-83 (20-61) |
| Classification | %C%Cr%Mn%Mo%Ni%P%S%Si%V%Mn+Ni+Cr+Mo+V |
| E7014 Requirement | 0.15 max.0.20 max.1.25 max.0.30 max.0.30 max.0.035 max.0.035 max.0.90 max.0.08 max.1.50 max. |
| Typical Result | 0.05-0.080.02-0.040.44-0.670.01 max.0.01-0.040.010-0.0180.007-0.0120.16-0.470.01-0.020.49-0.74 |
| Diameter | Polarity⁽¹⁾Current, Amps |
| 3/32 in (2.4 mm) | AC80-100 |
| 3/32 in (2.4 mm) | DC±75-95 |
| 1/8 in (3.2 mm) | AC110-155 |
| 1/8 in (3.2 mm) | DC±100-145 |
| 5/32 in (4.0 mm) | AC150-225 |
| 5/32 in (4.0 mm) | DC±135-200 |
| 3/16 in (4.8 mm) | AC200-285 |
| 3/16 in (4.8 mm) | DC±185-235 |
| Note | |
| ⁽¹⁾ Preferred polarity is listed first. | |
| LECO Diameter | 3/32 x 14 in (2.4 x 350 mm) |
| LECO Package | 50 lb Carton |
| Diameter (in) | 3/32 |
| Length (in) | 14 |
