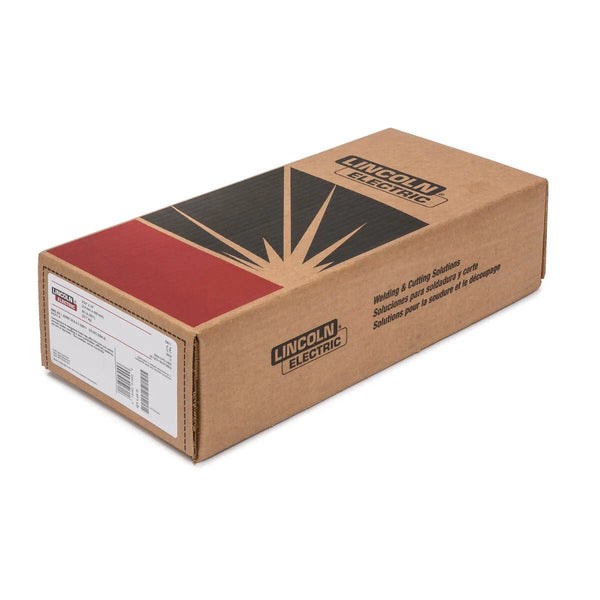

Lincoln Jetweld 1 in 5/32 in x 14 in, packaged as a 50 lb carton for the applications described on the Lincoln Jetweld 1 family page. Same AWS A5.1/A5.1M E6024 classification as every other size in this product line, packaged in this format for shop and field crews running this diameter.
| Manufacturer SKU | ED010372 |
|---|---|
| Diameter | 5/32 in |
| Length | 14 in |
| Package | 50 lb carton |
| Net weight | 50 lb |
| Approx. rods per package | ~170 rods |
| Recommended amperage (this diameter) | 105-180 A |
| AWS classification | AWS A5.1/A5.1M E6024 |
- Brand-authorized distributor - factory-fresh stock, full warranty pass-through
- Stocked in our US warehouse; ships within 1 business day
- Same AWS A5.1/A5.1M E6024 classification as every other size in the Lincoln Jetweld 1 line
- 30-day returns on unopened cartons
E6024 is an AWS A5.1 high-iron-powder rutile-coated SMAW electrode with 60 ksi minimum tensile, optimized for very high deposition flat and horizontal fillet welding. The thick iron-powder coating supports drag-rod technique and delivers smooth bead appearance with easy slag removal. Limited to flat and horizontal fillet positions; runs on AC, DC+, or DC-.
Is this the same electrode as the parent Lincoln Jetweld 1 grade, just in a different package?
Yes. SKU ED010372 is the same AWS A5.1/A5.1M E6024 classification as every other size in the Lincoln Jetweld 1 family. The only difference is diameter (5/32 in) and package format (50 lb carton). Polarity, position, and tensile properties are identical to the parent grade.
How many rods are in this 50 lb carton?
Approximately ~170 rods. Exact count varies with manufacturing tolerance but a 50 lb carton of 5/32 in Lincoln Jetweld 1 typically contains in this range.
What is the shelf life if I do not use them all?
Sealed containers store indefinitely in a dry environment. These are not low-hydrogen electrodes, so atmospheric exposure tolerance is much higher than E7018-class rods - avoid extended damp storage, but routine workshop humidity does not affect performance.
What diameter should I use for common applications?
5/32 in is well-suited for medium plate fabrication in flat and horizontal positions. Heavier base metal and higher deposition typically calls for one diameter up; thinner sheet and root passes go one diameter down. See the parent grade page for full diameter-to-amperage guidance.
Can I mix this size with other diameters on the same job?
Yes, provided your procedure qualification (WPS) covers the diameter range. Many shops use one diameter for root, one for fill, and one for cap. All sizes within Lincoln Jetweld 1 share identical mechanical properties (AWS A5.1/A5.1M E6024) so weld metal chemistry is consistent across passes.
Do I need to rebake these after the can is opened?
No. Cellulosic and rutile coatings are not low-hydrogen and do not require the rebake discipline of E7018-class electrodes. Keep them dry in normal storage; if the coating becomes visibly damp, redry at 200-275 F before use.
Does this size require a special holder or stinger?
Use an electrode holder rated for the amperage range above (105-180 A). Most general-purpose stinger holders (e.g. 300-500 A class) handle 5/32 in Lincoln Jetweld 1 without issue. For sustained high-amperage runs on larger diameters, a 500 A or higher holder is recommended.
Is this Buy America compliant?
This specific SKU is not the Buy America variant. Lincoln Jetweld 1 may be available in a Buy America compliant version - see the parent grade page for all available compliance variants.
