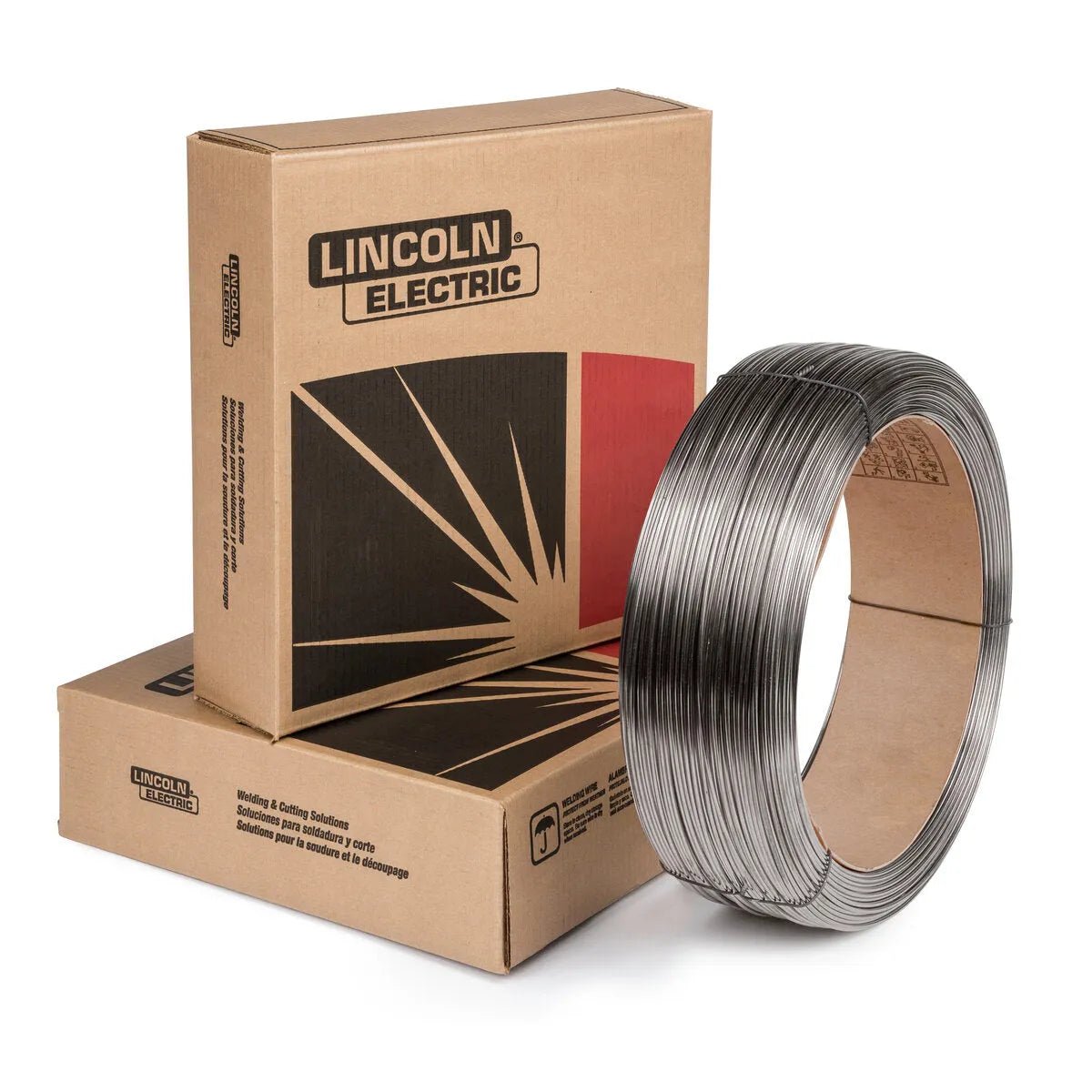

Lincoln ED010986 Lincolnweld LAC-Ni2 Submerged Arc SAW Welding Wire, 3/32 in, 50 lb Coil

Q: What process is the Lincoln ED010986 Lincolnweld LAC-Ni2 Submerged Arc SAW Welding Wire, 3/32 in, 50 lb Coil designed for?

The Lincoln ED010986 Lincolnweld LAC-Ni2 Submerged Arc SAW Welding Wire, 3/32 in, 50 lb Coil is used in Submerged Arc Welding (SAW), a high-deposition welding process where the arc is shielded by a blanket of granular flux rather than shielding gas. SAW is used primarily in the flat and horizontal positions for welding structural plate, pressure vessels, pipelines, ship hulls, and heavy fabrication. It produces deep penetration, high deposition rates, and excellent weld quality with minimal spatter.

Q: What is the AWS classification of the Lincoln ED010986 Lincolnweld LAC-Ni2 Submerged Arc SAW Welding Wire, 3/32 in, 50 lb Coil?

The Lincoln ED010986 Lincolnweld LAC-Ni2 Submerged Arc SAW Welding Wire, 3/32 in, 50 lb Coil carries AWS ECNi2 classification. In SAW, the wire/flux combination determines the weld deposit chemistry and mechanical properties — the wire class and flux class are always specified together. Always verify the flux is approved for use with this wire in your Welding Procedure Specification (WPS).

Q: What diameter is the Lincoln ED010986 Lincolnweld LAC-Ni2 Submerged Arc SAW Welding Wire, 3/32 in, 50 lb Coil available in?

Common SAW wire diameters range from 5/64 in to 7/32 in. Smaller diameter wire (5/64, 3/32 in) suits lower heat-input applications, tight-groove work, and thinner plate. Larger diameter wire (5/32, 3/16, 7/32 in) maximizes deposition rate for heavy plate and multi-pass structural welds. Consult the wire manufacturer's parameter chart for amperage, voltage, and travel speed by diameter.

Q: What spool or coil size is the Lincoln ED010986 Lincolnweld LAC-Ni2 Submerged Arc SAW Welding Wire, 3/32 in, 50 lb Coil available in?

SAW wire is supplied in various coil weights from 25 lb coils to 600 lb reels, depending on the wire diameter and supplier. Heavy production SAW systems use large coils (300–600 lb) to minimize wire change-over time. Ensure your SAW wire feeder head is configured for the specific coil diameter and weight of the product ordered.

Q: How should I store the Lincoln ED010986 Lincolnweld LAC-Ni2 Submerged Arc SAW Welding Wire, 3/32 in, 50 lb Coil to maintain weld quality?

Store SAW wire in a clean, dry environment. Surface rust on SAW wire can introduce hydrogen into the weld deposit, increasing the risk of porosity and cold cracking in susceptible base materials. Lightly rusted wire can sometimes be cleaned with a dry cloth, but wire with heavy surface oxidation should be discarded. Keep wire coils sealed in their original packaging until ready for use and store at controlled room temperature with low humidity.

SKU: ED010986

$500.65 ~~$568.50~~

Financing Options

•

As low as …/mo with.

•

Loading Affirm Estimate…

Lincoln Elite Dealer

Free Shipping

Lowest Price

Low Alloy Cored Electrode

AWS / Classification: ECNi2

Overview

Lincoln ED010986 Lincolnweld LAC-Ni2 Submerged Arc SAW Welding Wire, 3/32 in, 50 lb Coil

Features

A 2% nickel electrode used primarily in weathering steel applications
When used with 888 flux, it can product impact properties exceeding 27 J (20 ft·lbf) at -73ºC (-100°F)

Specifications

Feature	Value
Flux	Classification%C%Cu%Mn%Ni%P%S%SiDiffusible Hydrogen, mL/100g Weld Metal
Lincolnweld® 880M®	F7A10-ECNi2-Ni2-H80.070.030.912.400.0060.0030.256
Lincolnweld® 880M®	F7P10-ECNi2-Ni2-H80.070.041.042.470.0080.0040.276
Lincolnweld® 882®	F7P4-ECNi2-Ni2-H80.060.031.112.750.0080.0060.455
Lincolnweld® 882®	F8A4-ECNi2-Ni2-H80.070.031.092.670.0070.0050.435
Lincolnweld® 980®	F8A2-ECNi2-Ni2-H80.040.041.322.190.0160.0110.252
Lincolnweld® MIL800-H®	F8A10-ECNi2-Ni2-H80.100.040.872.620.0060.0050.204
LECO Diameter	3/32 in (2.4 mm)
LECO Package	50 lb Coil
Diameter (in)	3/32

Includes

(1) 50 lb Coil
