Lincoln Electric — Lincoln ED011163 Lincore M Flux-Cored FCAW-S Welding Wire, 7/64 in, 125 lb Speed Feed Drum
LINCORE® M Flux-Cored Self-Shielded Wire produces an austenitic manganese deposit on hammers, dredge parts, crushers, breaker bars and buckets applications. (Build Up and Joining).
Specifications
- Classification: Hardness Rockwell C
- Typical Result: 18-28
- Typical Result, Work-hardened: 30-48
- Classification: %C, %Cr, %Mn, %Ni, %Si
- Typical Result: 0.6, 4.9, 13.0, 0.5, 0.4
- Diameter: Polarity, ESO, mm (in.), Wire Feed Speed, m/min (in/min), Voltage, volts, Approx. Current, amps, Deposition Rate, kg/hr (lb/hr)
- 0.045 in (1.1 mm): DC+, 25 (1), 5.1 (200), 22, 80, 1.5 (3.3)
- 0.045 in (1.1 mm): DC+, 25 (1), 8.9 (350), 24, 145, 2.7 (6.0)
- 0.045 in (1.1 mm): DC+, 25 (1), 12.7 (500), 26, 185, 4.4 (9.6)
- 1/16 in (1.6 mm): DC+, 30 (1 1/8), 3.8 (150), 23, 130, 2.2 (4.9)
- 1/16 in (1.6 mm): DC+, 30 (1 1/8), 6.4 (250), 25, 200, 3.9 (8.6)
- 1/16 in (1.6 mm): DC+, 30 (1 1/8), 8.9 (350), 27, 250, 5.6 (12.4)
- 5/64 in (2.0 mm): DC+, 32 (1 1/4), 3.2 (125), 24, 240, 2.9 (6.4)
- 5/64 in (2.0 mm): DC+, 32 (1 1/4), 4.4 (175), 27, 300, 4.2 (9.3)
- 5/64 in (2.0 mm): DC+, 32 (1 1/4), 6.4 (250), 29, 360, 6.2 (13.6)
- 7/64 in (2.8 mm): DC+, 45 (1 3/4), 1.9 (75), 25, 240, 3.5 (7.8)
- 7/64 in (2.8 mm): DC+, 45 (1 3/4), 3.2 (125), 27, 360, 6.2 (13.6)
- 7/64 in (2.8 mm): DC+, 45 (1 3/4), 3.8 (150), 28, 395, 7.5 (16.6)
- 7/64 in (2.8 mm): DC+, 64 (2 1/2), 1.9 (75), 25, 240, 3.6 (8.0)
- 7/64 in (2.8 mm): DC+, 64 (2 1/2), 4.4 (175), 30, 400, 8.8 (19.5)
- 7/64 in (2.8 mm): DC+, 64 (2 1/2), 5.7 (225), 32, 455, 11.6 (25.6)
- LECO Diameter: 7/64 in (2.8 mm)
- LECO Package: 125 lb Speed Feed® Drum
- Diameter (in): 7/64
- Part number: ED011163
- UPC/EAN: 0015082023922
What's in the box

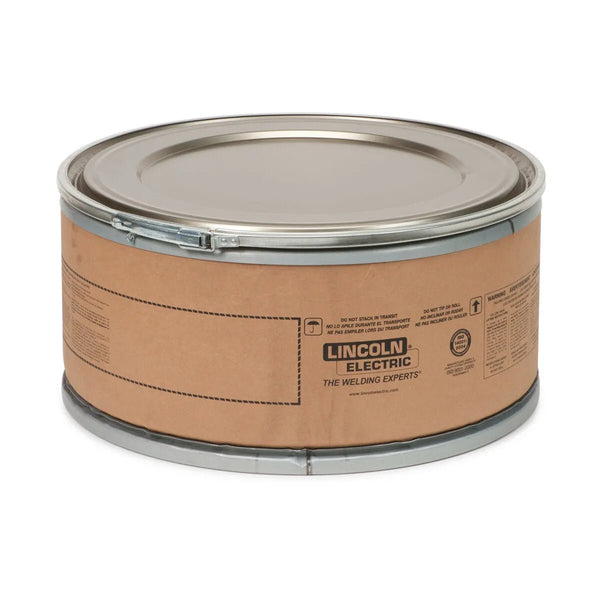

- (1) 125 lb Speed Feed® Drum
Compatibility & sizing
- Lincoln category: Filler Metals - Self-Shielded Flux-Cored;Filler Metals - Hardfacing
- Compatible families: Lincore
- Available diameters: 7/64
Why pros choose this
Solid MIG (GMAW) wire feeds continuously through the gun, which keeps the arc stable and lets the operator focus on travel and angle. Wire chemistry must match the base metal, and shielding gas must match the wire type, per AWS A5 classifications.
Warranty
1 year
From the manufacturer
LINCORE M 7/64 inch welding wire is ideal for build-up and repair of Hadfield-type austenitic manganese materials as well as carbon and low alloy steels, deposits resistance on severe impact as well as moderate abrasion and offers unlimited layers with proper preheat and interpass temperatures and procedures.
Features
- Deposit resists severe impact as well as moderate abrasion
- Produces an austenitic manganese deposit that work-hardens
- Recommended for build-up and repair of Hadfield-type austenitic manganese materials as well as carbon and low alloy steels
- Unlimited layers with proper preheat and interpass temperatures and procedures
